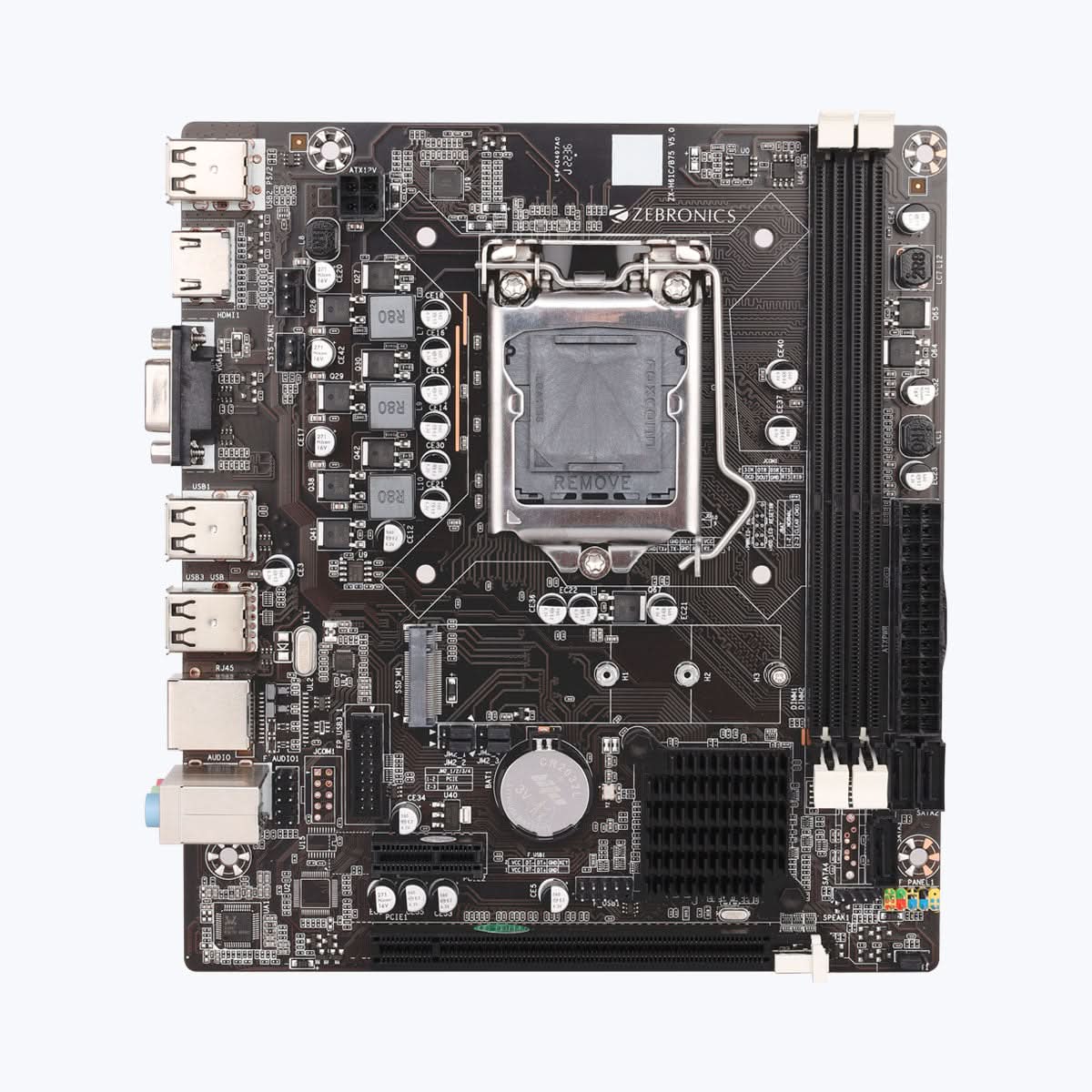

ZEBRONICS H61-NVMe Micro-ATX Motherboard

Specifications




Supported CPU

Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155


Chipset

Intel H61/H67


Memory Supported

2nos DDR3 Dual channel RAM slotsMemory up to 16GBSupports dual channel DDR3 1066/1333/1600MHz memory



BIOS

AMI BIOS


I/O Interface

1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio


Onboard Interface

1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector,6 x USB 2.0 Ports, 1 x Front Audio Connector, 1 x Front Panel Connector,1 x Speaker Connector, 2 x Fan Connectors, 3 x SATA II Ports,1 x 3pin CMOS Header, m.2 Slot



Integrated Sound

With 6-Channel HD Audio Codec onboard


Integrated LAN

Supports Realtek 8106E 10/100 Mbps


Expansion Slot

1 x PCI Express 2.0 x16 size slot, 1 x PCI Express 2.0 x1 size slot


Form Factor

Micro-ATX


Country of Origin
People's Republic of China
