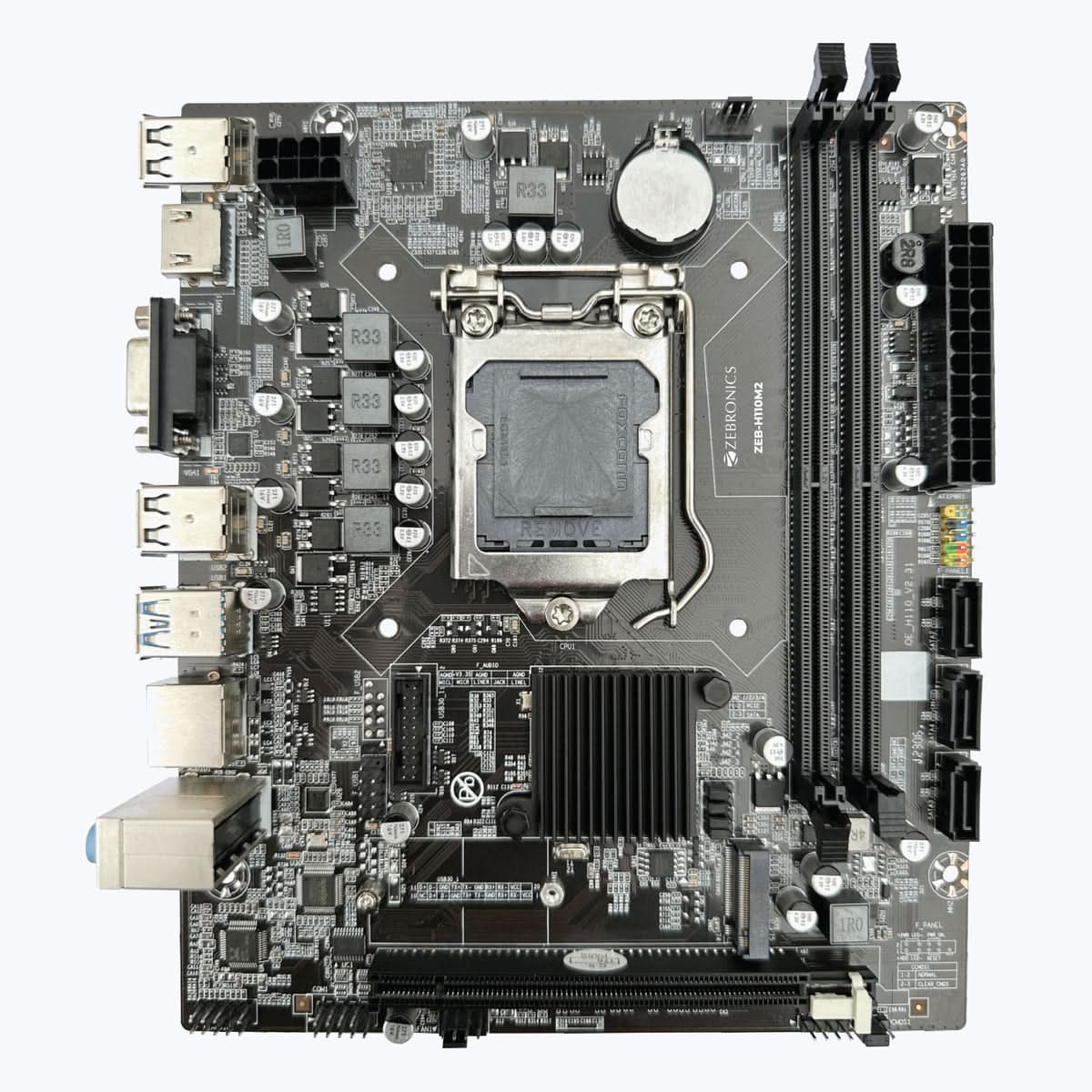

MBD ZEBRONICS H110 NVME M.2

Feature


H110 Chipset
Supports DDR4/2133/ 2400/ 2666 MHz
3 SATA 3.0
NVMe M.2 Slot
USB 3.0
5.1 Audio
LAN 10/100 Mbps



Specifications






Supported CPU

Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9thGeneration) Series Processors in LGA 1151




Chipset

Intel H110



Memory Supported

"2 x DDR4 DIMM Memory SlotsMemory up to 32GB Supports DDR4 2133/2400/2666 MHz memory"



BIOS

AMI BIOS



I/O Interface

1 x HDMI port, 1 x VGA Port, 4 x USB 2.0 Port,2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio



Onboard Interface

1 x 24 pin ATX Power Connector,1 x 8 Pin ATX 12V Power Connector,1 x Front Panel connector, 1 x Front Audio Connector,1 x Speaker Connector, 1 x USB 2.0 Connectors,1 x USB 3.0 Connector, 1 x CPU Fan Connector,1 x SYS Fan Connector, 1 x clear CMOS Connector,3 x SATA 3.0.



Integrated LAN

Supports RTL 8111G 10/100/1000 Mbps Ethernet LAN



Integrated Sound

With 5.1-Channel HD Audio



Expansion Slot
1 x PCI Express x16 slot,1 x NVMe M.2 slot



Form Factor

Micro-ATX



Country of Origin
China



Package Contents




Motherboard

1 U



SATA Cable

1 U



I/O Backplate

1 U



Driver Disc

1 U



User Manual

1 U
