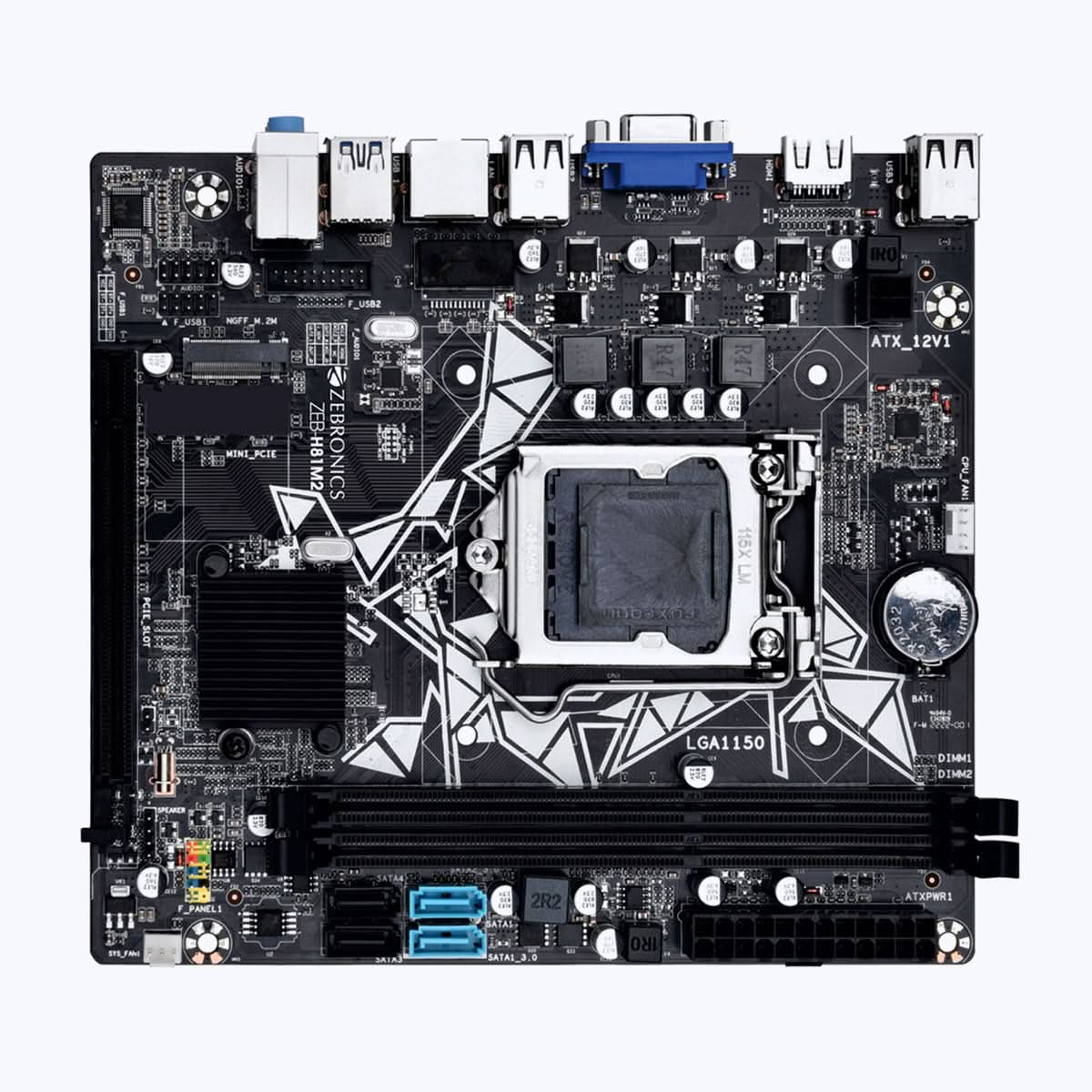

MBD ZEBRONICS H81 NVME M.2

Specifications





Supported CPU

Socket 1150 / Intel Pentium / Celeron / i3 / i5 / i7(4th & 5th Generation) Series Processors



Chipset

Intel H81 Chipset



Memory supported

2 x DDR3 DIMM memory slots,Memory up to 16GB,Supports DDR3 1066/1333/1600 MHz memory



BIOS

AMI BIOS



I/O Interface

1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x Rj45, 1x 3-in-1 Audio Jacks



Onboard interface

1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB 2.0 Header,1 x Front Audio Connector, 1 x Front Panel Connector,  1 x Speaker Connector,1 x 4 pin CPU fan connector, 1 x SYS Fan Connector, 2 x SATA 2.0 Ports, 2 x SATA3.0 Ports ,1 x clear CMOS Connector., 1x M.2 Slot



Integrated Sound

With 5.1-Channel HD Audio



Integrated LAN

Supports RTL8106E 10/100 Mbps Ethernet LAN



Expansion Slot

1 x PCI Express 2.0 x16 size slot



Form factor

Micro-ATX



Country of Origin
People's Republic of China




Package contents





H81M2 Motherboard
1 U



SATA Cable

1 U



I/O Backplate

1 U



Driver Disc

1 U



User Manual

1 U
