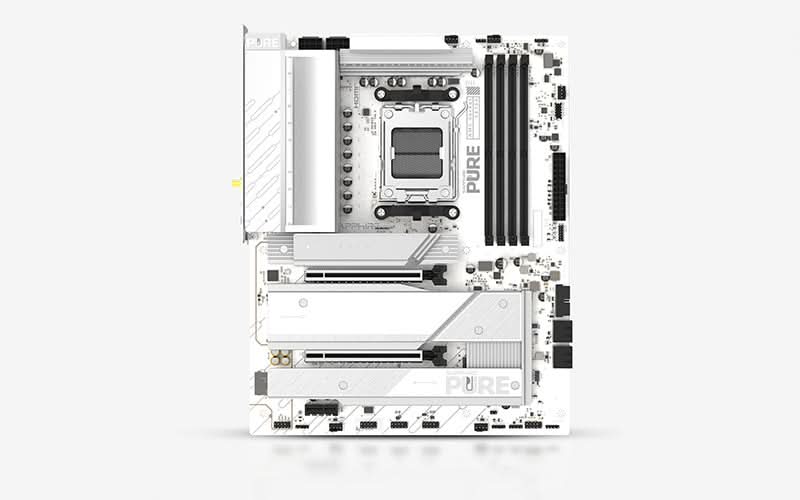

SAPPHIRE PURE X870A WIFI 7 DDR5, AM5, ATX Motherboard

PURE X870A WIFI 7

AMD AM5 CPU SUPPORT
SAPPHIRE CORE BIOS
16+2+1 Phase CPU Power, 55A Per Phase,
Robust VRM, M.2 and PCH Cooling
Dual Channel, 8400 MHz Memory OC
WIFI 7 Support
PCI Express 5.0 x16
PCIe 5.0 M.2 Support
Debug LED

Specifications:



Chipset
AMD® X870


CPU Support
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors


Memory Support


4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC)





PCI-E Expansion Slots


1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 3.0 x1 in 1x slot





Display Connector
DisplayPort x1, HDMI x1


Audio


Realtek® ALC897 HD Audio, 7.1 Channel





Network
Realtek® RTL8126 5 Gigabit EthernetM.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support


Front USB Headers


1x USB 3.2 Gen2 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)





Rear Ports
1 × DisplayPort, 1 × HDMI ™, 1 × RJ45 LAN, 2 × Wi Fi AntennaOne-click Flash BIOS Button, 2× USB 2.0, 4× USB 3.2 Gen1 Type-A1× USB 3.2 Gen2 Type-A, 6× Audio Jacks1x USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C


Storage


1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA





Dimensions


ATX, 305x245mm





Debug LED








DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
