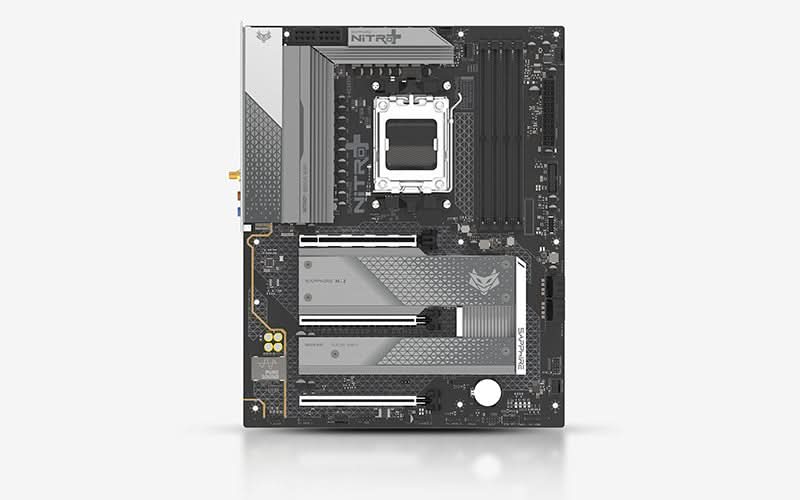

SAPPHIRE NITRO Plus B850A WIFI 7 DDR5 ATX, AM5 Motherboard

NITRO+ B850A WIFI 7

AMD AM5 CPU SUPPORT
SAPPHIRE CORE BIOS
12+2+1 Phase CPU Power, 55A Per Phase,
Robust VRM, M.2 and PCH Cooling
Dual Channel, 8000 MHz Memory OC
WIFI 7 Support
PCI Express 5.0 x16
PCIe 5.0 M.2 Support
Debug LED

Specification:



Chipset
AMD B850


CPU Support
Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors


Memory Support


4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)





PCI-E Expansion Slots


1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 4.0 x2 in 16x slot





Display Connector
DisplayPort x1, HDMI x1


Audio


Realtek ALC897 HD Audio, 7.1 Channel





Network
Realtek RTL8125BG 2.5 Gigabit EthernetM.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support


Front USB Headers


1x USB 3.2 Gen1 (1 x Type C), 1x USB 3.2 Gen1 (2 x Type A), 1x USB 2.0 (2 x Type A)





Rear Ports
1 × DisplayPort, 1 × HDMI, 1 × RJ45 LAN, 2 × Wi Fi AntennaOne-click Flash BIOS Button, 4 × USB 2.0, 3 × USB 3.2 Gen2 Type A1 × USB 3.2 Gen2 Type C, 6 × Audio Jacks


Storage


1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA





Dimensions


ATX, 305x244mm





Debug LED








DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
