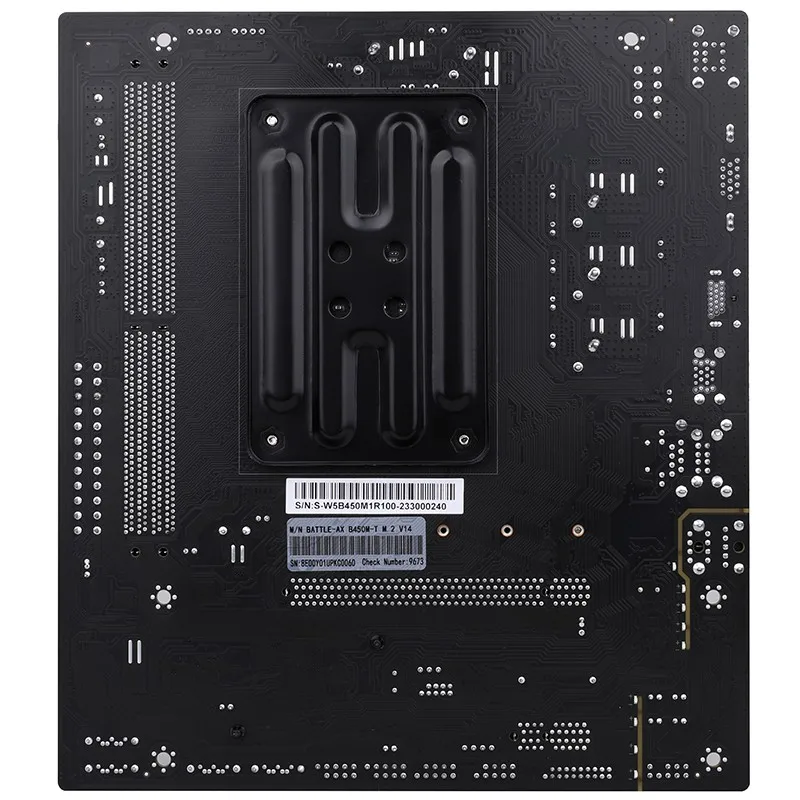

Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard

Features
Provide 1 PCIe 3.0 x4 M.2 SSD slot Provide 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces Provide 4 USB 2.0 interfaces Equipped with RTL8111H gigabit wired network card Provide HDMI+VGA display interface Six major protective technologies for more stable product operation Strict testing of 200 processes ensures quality assurance PCB atomization process fully upgraded





Model
BATTLE-AX B450M-T M.2 V14


Series
BATTLE-AX Series


Chipset
AMD B450


Processor Support
AMD Ryzen Series Processors (Socket AM4)


Form Factor
M-ATX (220mm × 195mm)


Memory
2 × DDR4 DIMM Slots (Up to 64GB, 32GB per slot)


Supports DDR4-3600(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz



Supports Dual Channel & XMP Memory Technology



Storage
1 × M.2 Slot (2242/2260/2280, PCIe 3.0 x4, CPU channel)


4 × SATA 6Gb/s Ports



Expansion Slots
1 × PCIe 3.0 x16 Slot


1 × PCIe 3.0 x1 Slot



Audio
Realtek ALC897 High-Fidelity Codec (5.1 Channel)


LAN
Realtek RTL8111H Gigabit Ethernet


BIOS
128M UEFI BIOS, Multi-language Support


Rear I/O Ports
4 × USB 2.0, 2 × USB 3.2 Gen1 Type-A


1 × HDMI 2.0 (4K@60Hz), 1 × VGA, 1 × PS/2



1 × Gigabit LAN, 3 × Audio Jacks (Input/Output/Mic)



Internal Connectors
1 × CPU Fan, 1 × System Fan


2 × USB 2.0 Headers (expand 4 USB 2.0), 1 × USB 3.2 Gen1 Header (expand 2 USB 3.2 Gen1)



1 × Front Audio, 1 × Front Panel, 1 × Speaker, 1 × COM Port, 1 × Clear CMOS, 1 × Debug LED



Power Management
Supports S3/S4 Wake, Network Wake (S5), USB Wake, Timed Boot, and Call Boot


Monitoring
CPU/System Fan Speed Control, Temperature & Voltage Monitoring
