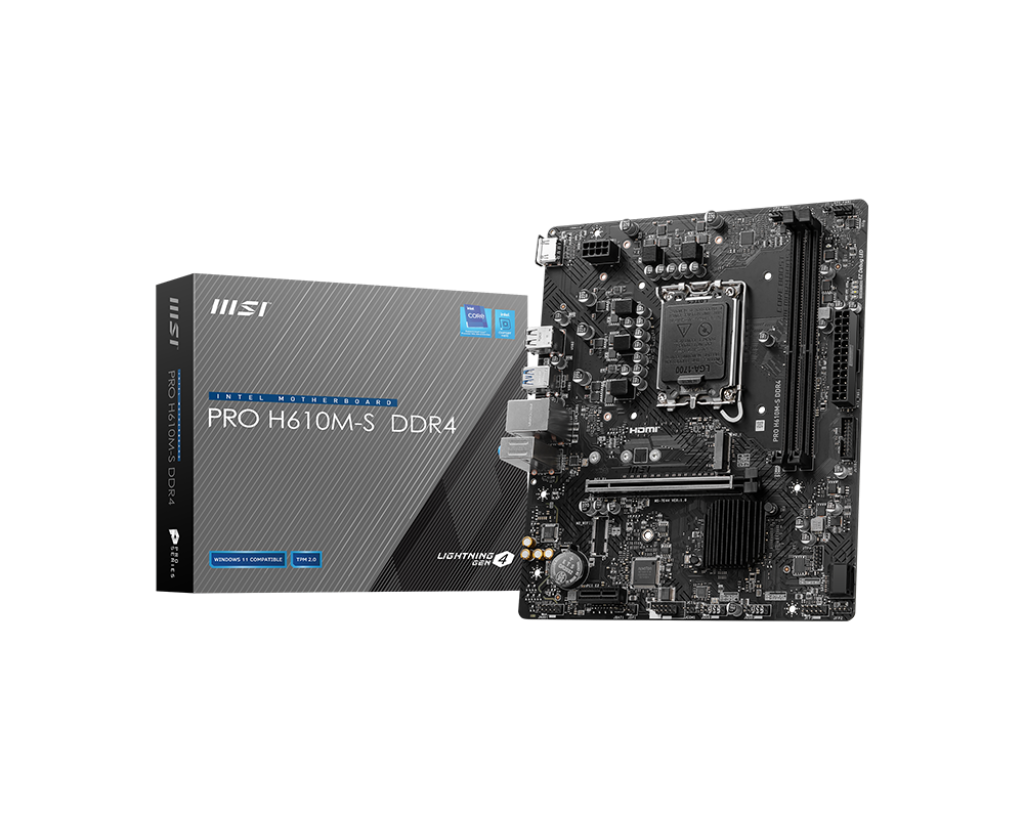

MSI PRO H610M-S DDR4 LGA1700 MICRO ATX MOTHERBOARD

About this item


Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0. Audio Boost: Reward your ears with studio grade sound quality





Technical Details








Platform
INTEL


Socket
LGA1700


Cpu Type
14th Gen,13th Gen,12th Gen, Pentium, Celeron


Chipset
H610


Memory Speed
up to 3200


Max Memory Support
64 GB


Supported Memory Type
DDR4


Channel Supported
Dual Channel


Memory Feature
Supports non-ECC, un-buffered memory



Graphics Port
1x HDMI


Expansion Slots
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)



Back Panel I/O Ports
HDMIUSB 2.0USB 5Gbps Type-ALAN portAudio ConnectorsUSB 2.0



Internal I/O Connector
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports



Form Factor
Micro-ATX


Warranty
3 Years
