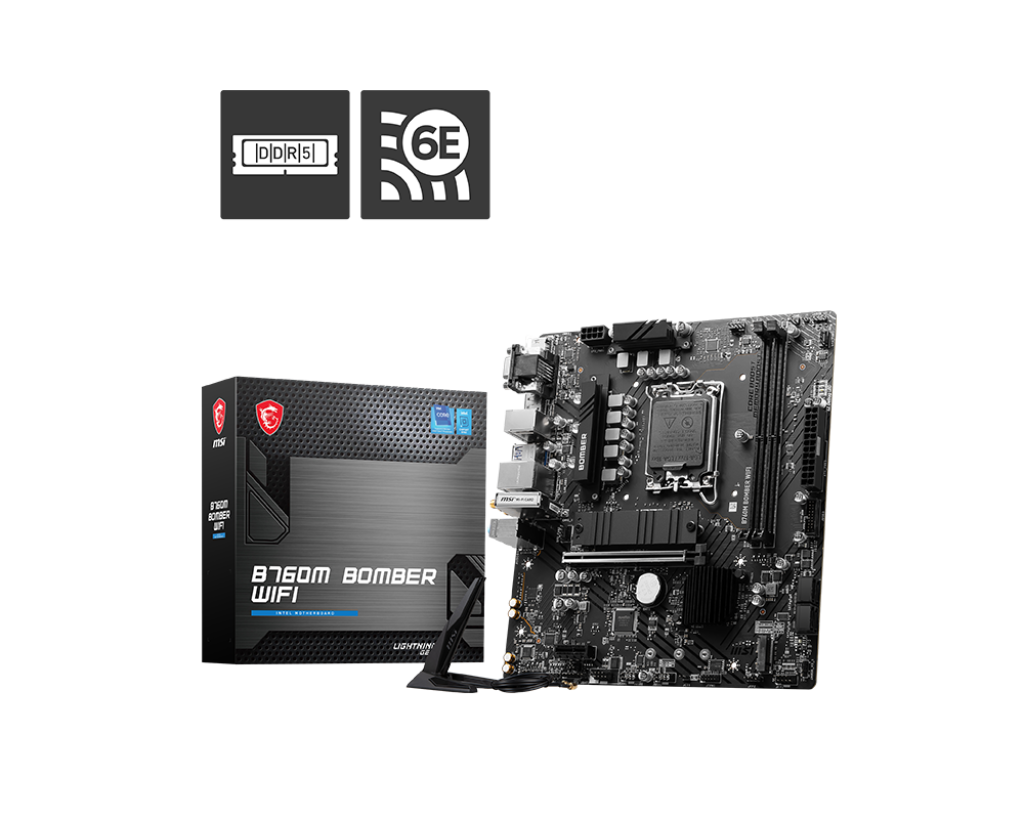

MSI B760M BOMBER WIFI INTEL LGA1700 DDR5 MOTHERBOARD

Specifications:



Platform
INTEL


Socket
LGA1700


Cpu Type
14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors


Chipset
B760


Memory Speed
up to 6400+


Max Memory Support
128 GB


Supported Memory Type
DDR5


Channel Supported
Dual Channel


Memory Feature
Supports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory



Graphics Port
1x HDMI, 1x DisplayPort, 1x D-Sub


Expansion Slots
1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)



Wireless Networking
WiFi 6E,Bluetooth 5.3


Back Panel I/O Ports
HDMIVGADisplayPortKeyboard / Mouse2.5G LANWi-Fi / BluetoothAudio ConnectorsUSB 2.0USB 3.2 Gen 1 5Gbps (Type-A)



Internal I/O Connector
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports



Form Factor
Micro-ATX


Warranty
3 Years
