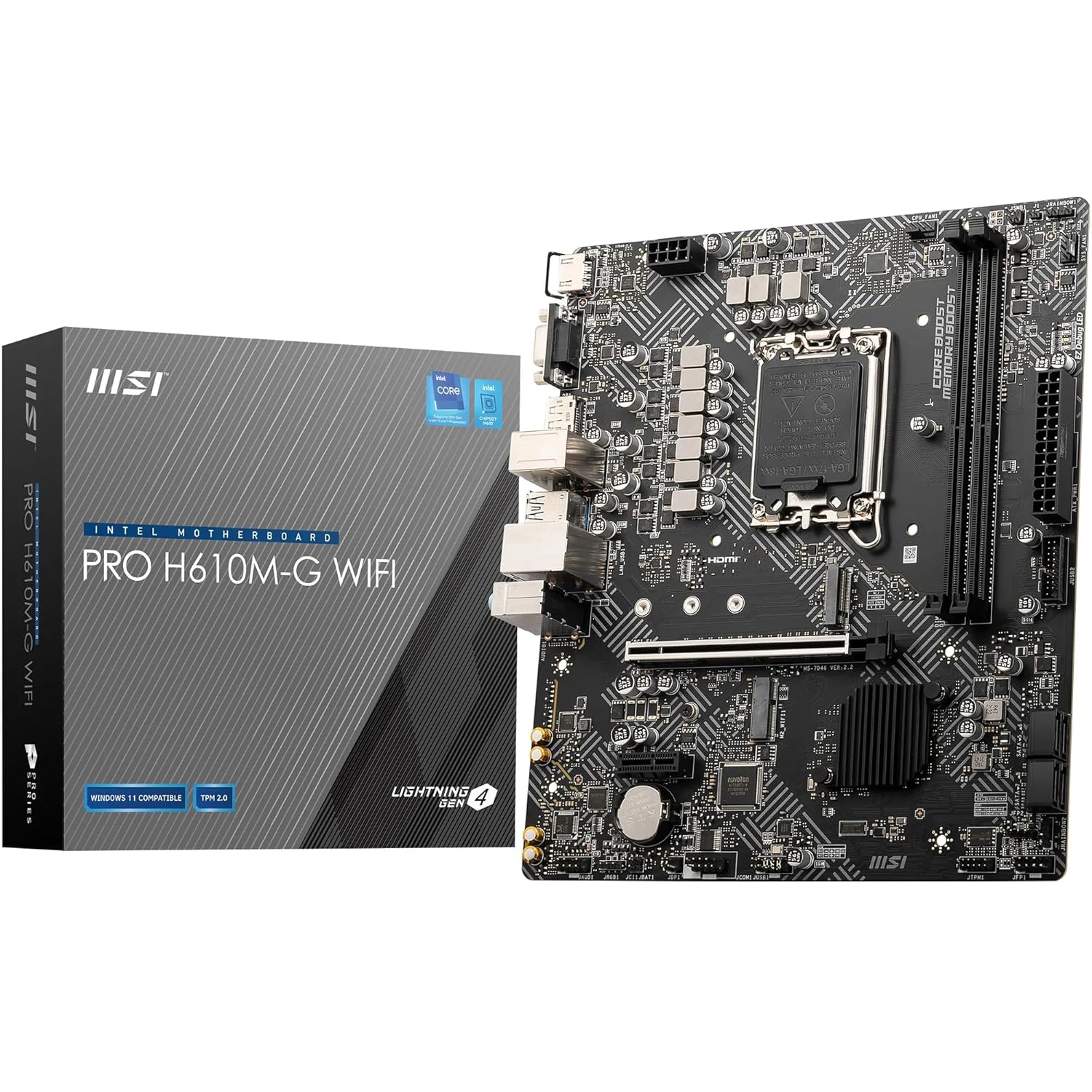

MSI PRO H610M-G WIFI DDR5 MOTHERBOARD

About the Item


Supports 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 5600(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0



Technical Details




Platform
INTEL


Socket
LGA1700


Cpu Type
14th Gen,13th Gen,12th Gen, Pentium, Celeron


Chipset
H610


Memory Speed
up to 5600


Max Memory Support
96 GB


Supported Memory Type
DDR5


Channel Supported
Dual Channel


Memory Feature
Supports non-ECC, un-buffered memory



Graphics Port
1x HDMI,1x DisplayPort,1x VGA


Expansion Slots
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)



Back Panel I/O Ports
HDMIVGADisplayPortKeyboard / MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio ConnectorsUSB 2.0



Internal I/O Connector
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable RGB LED connector(JRAINBOW)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x USB 2.0 ports2x USB 5Gbps Type A ports



Form Factor
Micro-ATX


Warranty
3 Years
