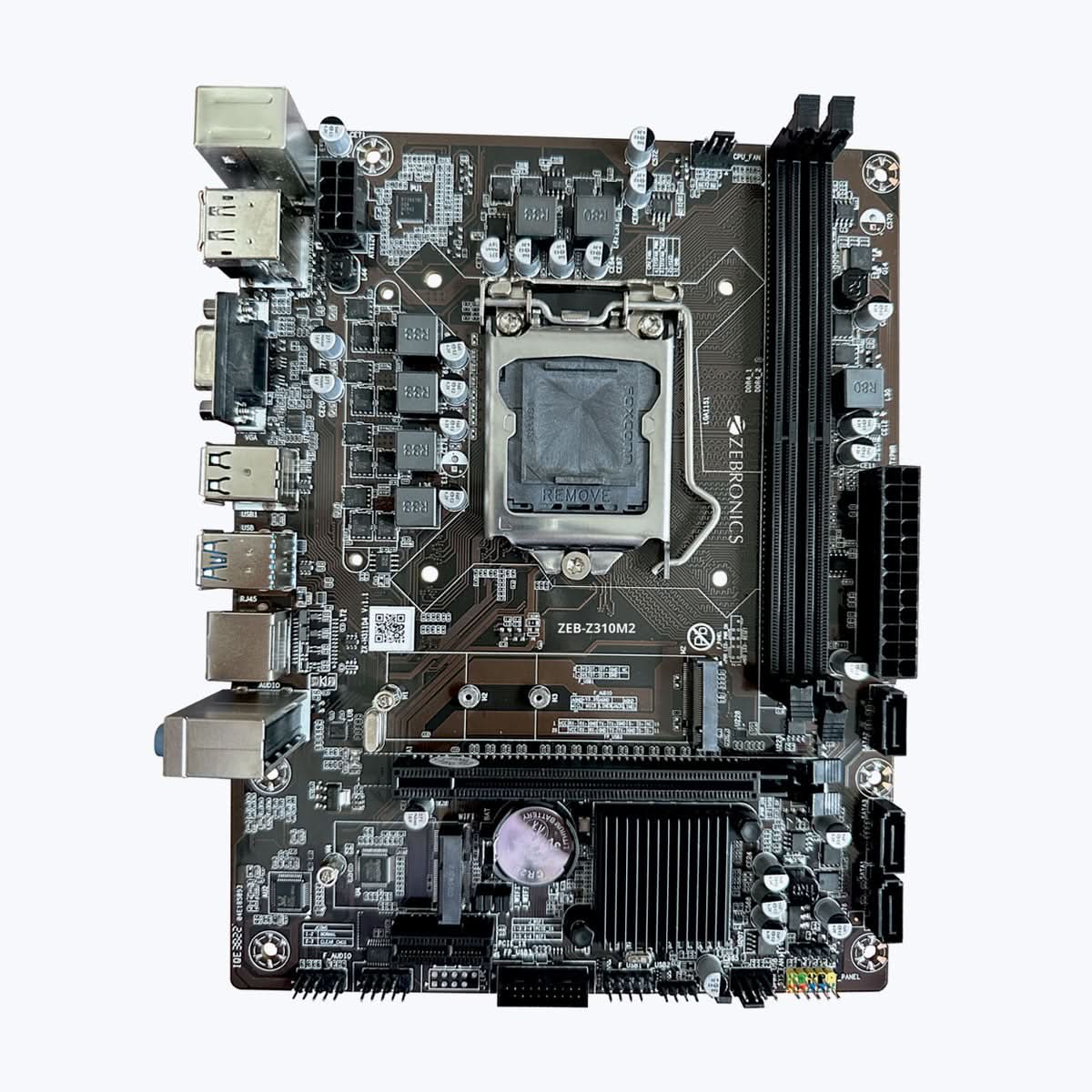

MBD ZEBRONICS Z310 NVME M.2

Specifications





Supported CPU

Intel i3/i5/i7/Celeron/Pentium 6th,7th,8th & 9th generation series processor in LGA 1151



Chipset
Intel H110



Memory Supported
2 No.s DDR4 DIMM Memory SlotsMemory up to 32GBSupports DDR4 2133/2400/2666 MHz memory



BIOS
AMI BIOS



I/O Interface
1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45  Port,1 x 3-in-1 Audio Jacks, 1 x Display Port , 1 x PS/2 for Keyboard & Mouse



Onboard Interface

1 x 24 Pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector,1 x Front Panel      Connector, 1x Front Audio Connector, 1 x Speaker Connector, 1 x USB 2.0 Connectors,1 x 4 Pin USB 2.0 Connector, 1 x USB 3.0 Connector, 1 x CPU Fan Connector,1x SYS Fan Connector, 3 x SATA 3.0



Integrated LAN

Supports RTL8106E 10/100Mbps Ethernet LAN



Expansion Slot

1 x PCI Express x16 Slot, 1 x PCI Express x1 Slot, 1 x M.2 Slot, 1 x M.2 for WIFI module



Form Factor

Micro-ATX



Country of Origin
People's Republic of China




Package contents





ZEB-Z310M2 Motherboard

1U



SATA Cable

1U



I/O Backplate

1U



Driver Disc

1U



User Manual

1U
