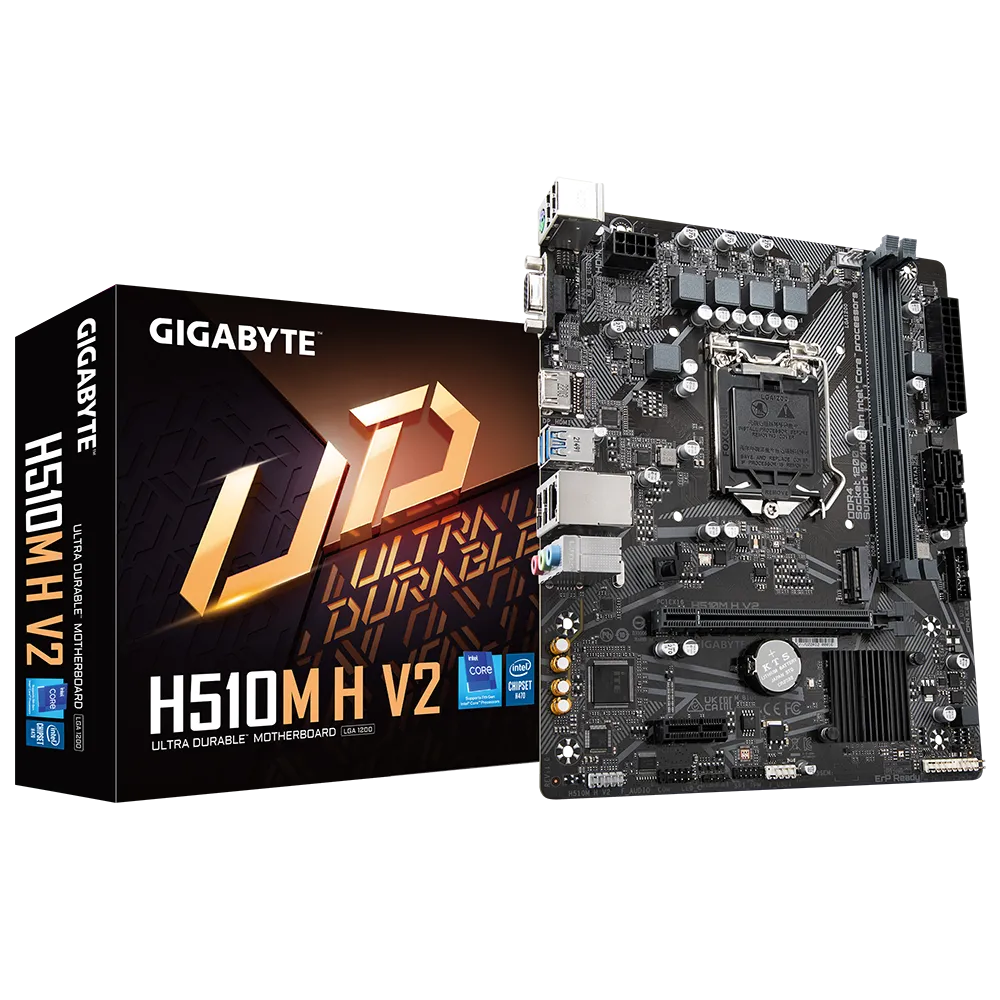

Features:
Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
Supports 11th/10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Specifications:
Platform
INTEL
Socket
LGA1200
CPU Type
11th Gen,10th Gen
Chipset
H510
Memory Speed
up to 3200
Max Memory Support
64 GB
Supported Memory Type
DDR4
Channel Supported
Dual Channel
Memory Feature
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Graphics Port
1 x HDMI,1 x D-Sub
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports
1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
Internal I/O Connector
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
