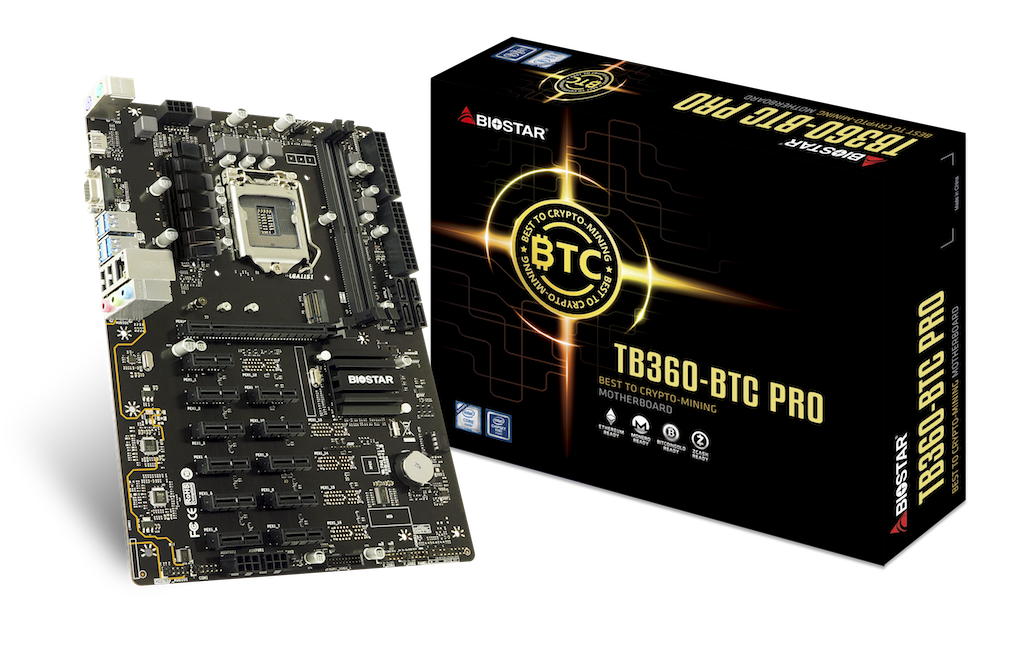

BIOSTAR TB360 BTC PRO INTEL LGA1151 MOTHERBOARD

Specifications:   Chipset Intel B360 CPU SUPPORT 9th Gen Intel Core„ i9 LGA 1151 Processor9th Gen Intel Core„ i7 LGA 1151 Processor9th Gen Intel Core„ i5 LGA 1151 Processor9th Gen Intel Core„ i3 LGA 1151 Processor8th Gen Intel Core„ i7 LGA 1151 Processor8th Gen Intel Core„ i5 LGA 1151 Processor8th Gen Intel Core„ i3 LGA 1151 Processor8th Gen Intel Pentium LGA 1151 Processor8th Gen Intel Celeron LGA 1151 ProcessorMaximum CPU TDP (Thermal Design Power) : 95Watt8th *Generation Intel Core„ Processor Family only support 300-Series. MEMORY Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz2 x DDR4 DIMM Memory SlotMax. Supports up to 32GB MemoryEach DIMM supports non-ECC 4/8/16GB DDR4 module INTEGRATED VIDEO By CPU modelSupports DX12Supports HDCP STORAGE 4 x SATA III Connectors (6GB/s)* Specifications vary by CPU types1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD* Specifications vary by CPU types LAN Realtek RTL8111H - 10/100/1000Mb/s ControllerSupport Super LAN Surge Protection AUDIO CODEC Realtek ALC887 8-Channel HD Audio USB 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot* Specifications vary by CPU types11 x PCI-E 3.0 x1 Slots* Specifications vary by CPU types*Maximum VGA cards mining support are depending on VGA Driver or mining software.* Specifications vary by CPU types REAR I/O 1 x PS/2 Mouse1 x PS/2 Keyboard4 x USB 3.1 Gen1 Ports2 x USB 2.0 Ports1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.41 x VGA Port ,resolution up to 1920 x 1200 @60Hz1 x LAN Port3 x Audio Jacks INTERNAL I/O 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)4 x SATA III Connectors (6Gb/s)1 x Front Audio Header1 x Front Panel Header1 x CPU Fan Connector2 x System Fan Connector1 x 8-Pin Power Connector2 x 6-Pin PCIe Power Connector2 x 24-Pin Power Connector1 x Clear CMOS Header1 x COM Port Header H/W MONITORING CPU / System Temperature MonitoringCPU / System Fan MonitoringSystem Fan MonitoringSmart / Manual CPU Fan ControlSystem Voltage Monitoring DIMENSION ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L ) OS SUPPORT Supports Windows 10(64bit) / 11(64bit)€»Biostar reserves the right to add or remove support for any OS with or without notice. BUNDLE SOFTWARE BullGuard ACCESSORIES 2 x SATA Cable1 x I/O Shield1 x DVD Driver1 x User Manual FEATURES PCI-E Slot Detection BIOS Boot Screen
