AMD Socket AM4, supports: - Ryzen 5000 Series / 5000G Series - Ryzen 4000G Series - Ryzen 3000 Series / 3000G Series (Refer to "CPU Support List" for more info.)
Chipset
AMD B550
Memory
- 4× DDR4 DIMM, up to 128GB - Supports DDR4: 4733(O.C.) to 2133 MHz - Dual channel architecture - Supports ECC/Non-ECC unbuffered DIMMs* - Supports XMP (ECC support varies by CPU)
- 1× M.2 (CPU) 2242/2260/2280/22110 • Ryzen 5000/3000: PCIe 4.0 x4/x2 & SATA • Ryzen 5000G/4000G/3000G: PCIe 3.0 x4/x2 & SATA - 1× M.2 (Chipset) 2242/2260/2280/22110 • PCIe 3.0 x4/x2 & SATA - 4× SATA 6Gb/s (RAID 0/1/10)
USB
CPU: - Ryzen 5000/3000: 2× USB 3.2 Gen2 Type-A (red) rear - Ryzen 5000G/4000G/3000G: 2× USB 3.2 Gen1 (red) rear - 2× USB 3.2 Gen1 (rear)
Chipset: - 1× USB Type-C (USB 3.2 Gen1, internal) - 1× USB 3.2 Gen1 (rear) - 2× USB 3.2 Gen1 (internal) - 2× USB 2.0 (rear) - 4× USB 2.0 (internal)
Internal I/O
24-pin ATX power 8-pin ATX 12V power 2× M.2 slots 4× SATA 6Gb/s CPU fan Water cooling CPU fan 3× system fan RGB LED strip header 2× Addressable LED headers 2× RGB LED headers Front panel Audio header USB Type-C (Gen1) header USB 3.2 Gen1 header 2× USB 2.0 headers TPM header (2×6 pin) Clear CMOS jumper

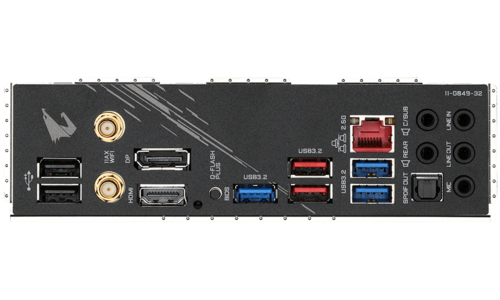

Back Panel
- 1× DisplayPort - 1× HDMI - 2× SMA antenna connectors - 2× USB 3.2 Gen2 / Gen1 (red)* *Gen2 only with Ryzen 5000/3000 - 3× USB 3.2 Gen1 - 2× USB 2.0 - 1× RJ-45 LAN - 1× Optical S/PDIF Out - 5× Audio jacks - Q-Flash Plus button
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed, Water cooling flow detection, Overheating & fan fail warning, Fan speed control*
