AMD Socket AM4, support for: - AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 Series / Ryzen 3000 G-Series Processors (Refer to "CPU Support List" for more details.)
Chipset
AMD B550
Memory
- 4 × DDR4 DIMM sockets, up to 128GB - Supports DDR4 4733(O.C.) down to 2133 MHz - Dual channel architecture - Supports ECC/Non-ECC unbuffered DIMMs* - Supports XMP (Refer to "Memory Support List" for more details.)
Onboard Graphics
Integrated Graphics Processor: - 1 × DVI-D, max 1920×1200@60Hz - 1 × HDMI, max 4096×2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) - Max shared memory: 16GB
Audio
- Realtek Audio CODEC - HD Audio, 2/4/5.1/7.1-channel*
- 1 × M.2 (CPU) PCIe 4.0/3.0 x4/x2 + SATA - 1 × M.2 (Chipset) PCIe 3.0 x4/x2 + SATA - 4 × SATA 6Gb/s (RAID 0/1/10)
USB
CPU: - 1 × USB 3.2 Gen2 Type-A (rear) - 3 × USB 3.2 Gen1 (rear)
Chipset: - 1 × USB Type-C (USB 3.2 Gen1, internal) - 2 × USB 3.2 Gen1 (internal) - 6 × USB 2.0/1.1 (2 rear, 4 internal)
Internal I/O Connectors
- 24-pin ATX power - 8-pin CPU power - CPU fan, water pump fan, 3× system fan headers - 2 × Addressable LED headers - 2 × RGB LED headers - 2 × M.2 slots - 4 × SATA 6Gb/s - Front panel, audio, Type-C USB, USB 3.2 Gen1, USB 2.0 headers - TPM header - Clear CMOS jumper

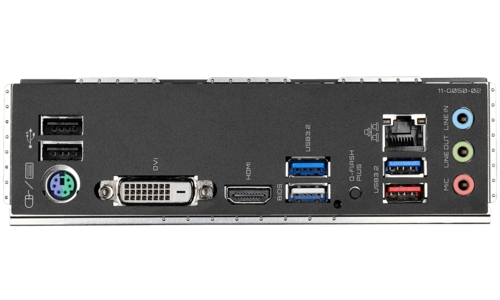

Back Panel
- 2 × USB 2.0 - PS/2 keyboard/mouse - DVI-D - HDMI - 3 × USB 3.2 Gen1 - 1 × USB 3.2 Gen2 Type-A (red) - RJ-45 LAN - 3 × audio jacks - Q-Flash Plus button
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed, water cooling flow detection, warnings, speed control*
