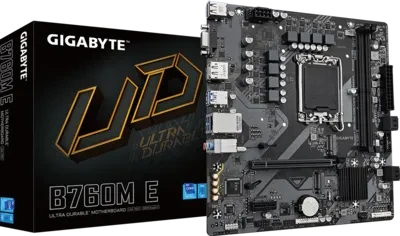

Gigabyte B760M E (Rev. 1.0) Intel B760 Express Chipset Micro ATX Motheboard

Features

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR5：2*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：Display Port, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Specifications



CPU Support
LGA1700 socket, Intel® Core™ 14th, 13th, 12th Gen, Pentium® Gold, Celeron®. L3 cache varies by CPU. Triple-display support.


Chipset
Intel® B760 Express


Memory
2 x DDR5 DIMM slots, up to 128 GB, Dual Channel, Supports 4000–7200 MT/s (O.C.), ECC/Non-ECC, XMP support


Onboard Graphics
1 x D-Sub (1920x1200@60Hz)1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)


Audio
Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out support


LAN
Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)


Expansion Slots
CPU: 1 x PCIe 4.0 x16Chipset: 1 x PCIe 3.0 x1


Storage
CPU: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280)Chipset: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280), 4 x SATA 6Gb/sRAID 0/1/5/10 support


USB
Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, D-Sub, DisplayPort, HDMI, RJ-45, 3 x Audio jacksInternal: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers


Internal I/O Connectors
1 x 24-pin ATX, 1 x 8-pin 12V, CPU fan header, 2 x system fan headers, 1 x RGB header, 2 x M.2 connectors, 4 x SATA 6Gb/s, front panel header, front panel audio header, S/PDIF Out header, TPM header, serial port header, Clear CMOS jumper


H/W Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control


BIOS
128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Special Features
GIGABYTE Control Center (GCC), Q-Flash


Bundled Software
Norton Internet Security OEM, LAN bandwidth management software


Operating System
Windows 11 64-bit, Windows 10 64-bit


Form Factor
Micro ATX; 23.0 cm x 21.5 cm
