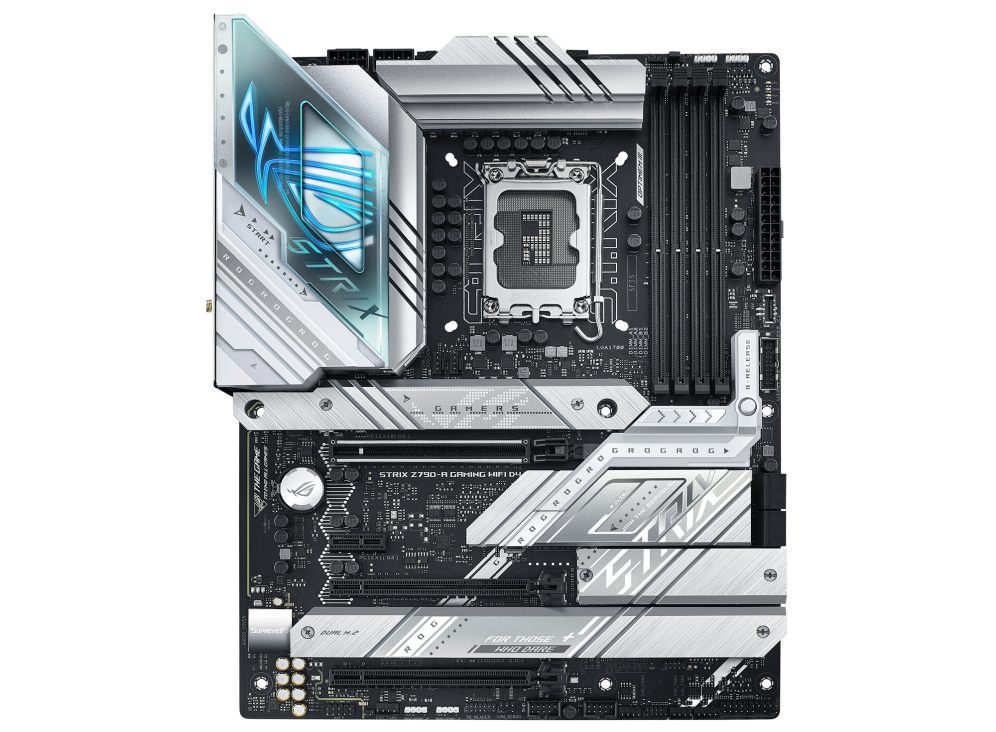

ASUS ROG STRIX Z790-A GAMING WIFI DDR4 INTEL LGA1700 MOTHERBOARD

Specifications



Platform
INTEL


Socket
LGA1700


CPU Type
14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors


Chipset
Z790


Memory Speed
up to 5333


Max Memory Support
128 GB


Supported Memory Type
DDR4


Channel Supported
Dual Channel


Memory Feature
Supports Intel Extreme Memory Profile (XMP)OptiMem IIIUn-buffered Memory



Graphics Port
1 x DisplayPort,1 x HDMI port


Expansion Slots
Intel Core Processors (14th & 13th & 12th Gen)1 x PCIe 5.0 x16 slotIntel Z790 Chipset2 x PCIe 4.0 x16 slots (support x4/x4 mode)1 x PCIe 3.0 x1 slot



Wireless Networking
Wi-Fi 6E,Bluetooth v5.3


Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button1 x Clear CMOS button



Internal I/O Connector
Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt header



Form Factor
ATX


Warranty
3 Years
