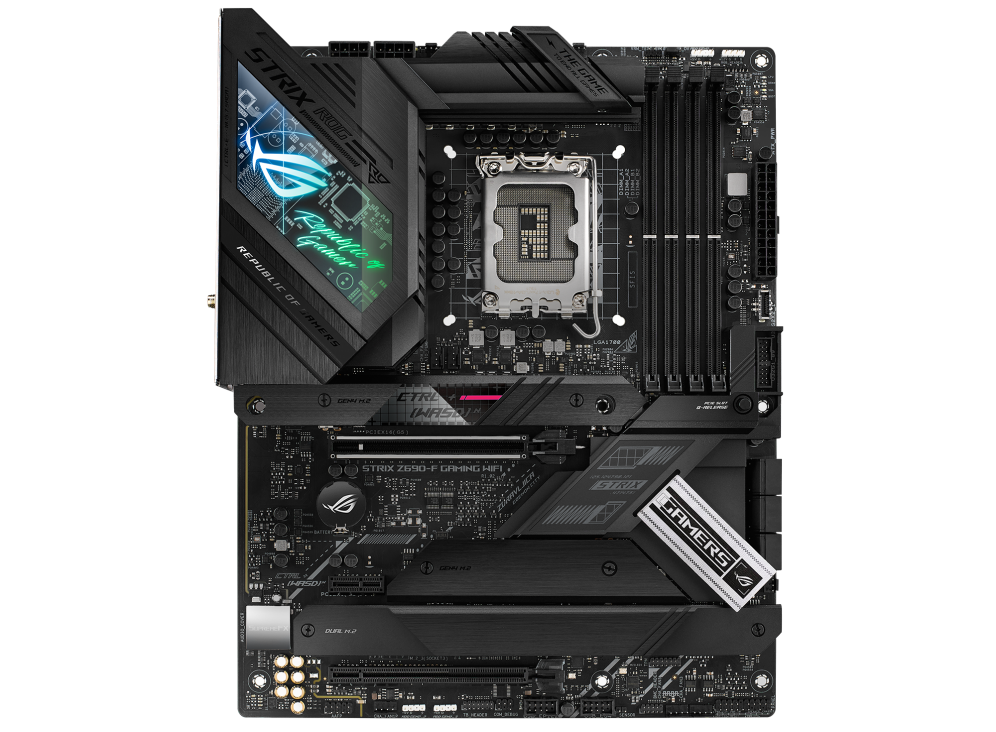

ASUS ROG STRIX Z690-F DDR5 GAMING WIFI INTEL LGA1700 MOTHERBOARD

Specifications







CPU
IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors




Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**



* Refer to www.asus.com for CPU support list.



** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
Z690


Memory
4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*



Dual Channel Memory Architecture



Supports IntelÆ Extreme Memory Profile (XMP)



OptiMem II



* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


Graphics
1 x DisplayPort**



1 x HDMIÆ***



* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.



** Support 8K@60Hz as specified in DisplayPort 1.4



*** Support 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
IntelÆ 12th Gen Processors*



1 x PCIe 5.0 x16 slot



- IntelÆ 12th support PCIe 5.0 x16 mode



IntelÆ Z690 Chipset



1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)



1 x PCIe 3.0 x1 slot



* Please check PCIe bifurcation table in support site.


Storage
IntelÆ12th Gen Processors*



M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)



IntelÆ Z690 Chipset**



M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)



M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***



6 x SATA 6Gb/s ports****



* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.



** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots.



*** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.



**** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.


Ethernet
1 x IntelÆ 2.5Gb Ethernet


Wireless & Bluetooth
IntelÆ Wi-Fi 6E




Wi-Fi 6E



2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)



Supports 2.4/5/6GHz frequency band*



Bluetooth v5.2 hardware ready**



* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.



** Bluetooth v5.2 function will be ready in Windows 11 or later.


USB
Rear USB:Total 10 ports




1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)



3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÆ)



4 x USB 3.2 Gen 1 ports (4 x Type-A)



2 x USB 2.0 ports (2 x Type-A)



Front USB:Total 7 ports




Front USB (Total 7 ports)



1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ)



1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports



2 x USB 2.0 headers support additional 4 USB 2.0 ports


Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080



- Impedance sense for front and rear headphone outputs



- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking



- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input



- Supports up to 32-Bit/384 kHz playback"



Audio Features



- SupremeFX Shielding Technology



- ALC4080 + Savitech SV3H712 AMP



- Gold-plated audio jacks



- Rear optical S/PDIF out port



- Premium audio capacitors



- Audio cover


Internal I/O Connectors
Fan and Cooling related



1 x 4-pin CPU Fan header



1 x 4-pin CPU OPT Fan header



1 x 4-pin AIO Pump header



5 x 4-pin Chassis Fan headers



Power related



1 x 24-pin Main Power connector



2 x 8-pin +12V Power connector



Storage related



4 x M.2 slots (Key M)



6 x SATA 6Gb/s ports



USB



1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ)



1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports



2 x USB 2.0 headers support additional 4 USB 2.0 ports



Miscellaneous



3 x Addressable Gen 2 headers



1 x AURA RGB header



1 x BMC header



1 x CPU Over Voltage jumper



1 x Front Panel Audio header (AAFP)



1 x SPI TPM header (14-1pin)



1 x 20-3 pin System Panel header with Chassis intrude function



1 x Thermal Sensor header



1 x Thunderbolt header


Special Features
Extreme Engine Digi+



- 5K Black Metallic Capacitors



ASUS Q-Design



- M.2 Q-Latch



- PCIe Slot Q-Release



- Q-DIMM



- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])



- Q-Slot



ASUS Thermal Solution



- M.2 heatsink backplate



- M.2 heatsink



ASUS EZ DIY



- BIOS FlashBackô button



- BIOS FlashBackô LED



- Clear CMOS button



-CPU Socket lever protector



- ProCool II



- Pre-mounted I/O shield



- SafeSlot



- SafeDIMM



AURA Sync



- AURA RGB header



- Addressable Gen 2 RGB headers



ASUS HYDRANODE



- 1 x Chassis fan support* (CHA_FAN1P)



* Visit ASUS Website for the latest compatibility list.



TPM header


Software Features
ROG Exclusive Software



- ROG CPU-Z



- GameFirst VI



- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion



- Sonic Radar III



- DTSÆ Sound Unbound



- Anti-virus software



ASUS Exclusive Software



Armoury Crate



- AIDA64 Extreme (60 days free trial)



- AURA Creator



- AURA Sync



- Fan Xpert 4



- Two-Way AI Noise Cancelation



AI Suite 3



- 5-Way Optimization with AI Overclocking



TPU



EPU



DIGI+ VRM



Turbo app



MyAsus



WinRAR



UEFI BIOS



AI Overclocking Guide



ASUS EZ DIY



- ASUS CrashFree BIOS 3



- ASUS EZ Flash 3



- ASUS UEFI BIOS EZ Mode



FlexKey



MemTest86


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables



4 x SATA 6Gb/s cables



Miscellaneous



1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas



1 x M.2 Q-Latch package



1 x M.2 Q-Latch package for M.2 backplate



2 x M.2 Rubber Packages



1 x ROG key chain



1 x cable tie



1 x ROG STRIX stickers



1 x ROG STRIX thank you card



Installation Media



1 x Support DVD



Documentation



1 x User manual


Operating System
WindowsÆ11 64-bit,WindowsÆ1064-bit


Form Factor
ATX



30.5cm x 24.4cm
