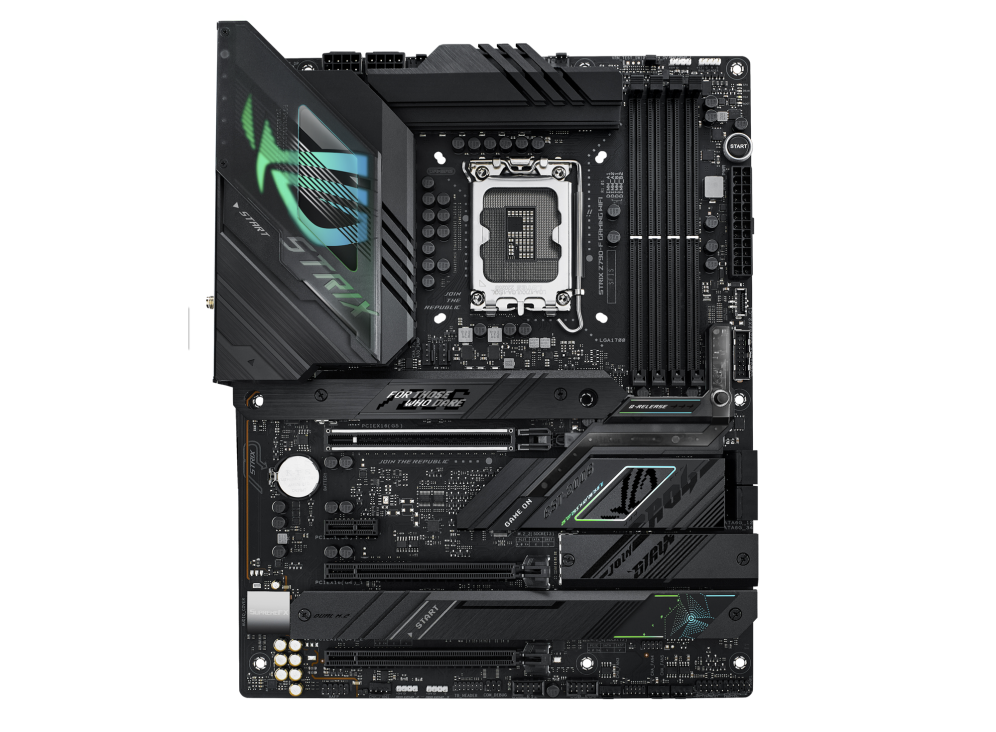

ASUS ROG STRIX Z790-F GAMING WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Specifications



CPU
IntelÆSocket LGA1700 for 13th Gen IntelÆCoreô Processors & 12th Gen IntelÆCoreô, PentiumÆGold and CeleronÆProcessors*


Supports IntelÆTurbo Boost Technology 2.0and IntelÆTurbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** IntelÆTurbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
IntelÆ Z790 Chipset


Memory
4 x DIMM, Max. 128GB, DDR5 7800(OC)/7600(OC)


7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800


Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports IntelÆExtreme Memory Profile(XMP)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration,for more information refer to www.asus.com for memory support list.


Graphics
1 x DisplayPort**


1 x HDMIÆport***


* Graphics specifications may vary betweenCPU types. Please refer to ww.intel.com for any updates.


** Supports max.8K@60Hzas specified inDisplayPort 1.4.


*** Supports4K@60Hzas specified in HDMI 2.1.


**** VGA resolution support depends onprocessorsí or graphic cardsí resolution.


Expansion Slot
IntelÆ13th & 12th Gen Processors


1 x PCIe 5.0 x16 slotIntelÆZ790 Chipset


2 x PCIe 4.0 x16 slots (support x4 mode)


1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table


on the support site (https://www.asus.com/support/FAQ/1037507/).


** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.


Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*


IntelÆ13th & 12th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


IntelÆZ790 Chipset


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)


4 x SATA 6Gb/s ports


* IntelÆRapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.


Ethernet
1 x IntelÆ2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
Wi-Fi 6E


2—Š2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band*


BluetoothÆv5.3


* WiFi 6E 6GHz regulatory may vary between countries.


USB
Rear USB (Total 12 ports)


1 x USB 3.2 Gen 2—Š2 port (1 x USB Type-CÆ)


3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÆ)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)


1 x USB 3.2 Gen 2—Š2 connector (supports USB Type-CÆwith up to 30W PD Fast-charge)


1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports


2 x USB 2.0 headers supports 4 additional USB 2.0 ports


Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


ñ Impedance sense for front and rear headphone outputs


ñ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


ñ High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


ñ Supports up to 32-Bit/384 kHz playback


Audio Features


ñ SupremeFX Shielding Technology


ñ Savitech SV3H712 AMP


ñ Rear optical S/PDIF out port


ñ Premium audio capacitors


ñ Audio cover


Back Panel I/O Ports
1 x USB 3.2 Gen 2—Š2 port (1 x USB Type-CÆ)


3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-CÆ)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x DisplayPort


1 x HDMIÆport


1 x Wi-Fi Module


1 x IntelÆ2.5Gb Ethernet port


5 x Gold-plated audio jacks*


1 x Optical S/PDIF out port


1 x BIOS FlashBackô button


1 x Clear CMOS button


*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


5 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connectorsStorage related


4 x M.2 slots (Key M)


4 x SATA 6Gb/s portsUSB


1 x USB 3.2 Gen 2—Š2 connector (supports USB Type-CÆwith up to 30W PD Fast-charge)


1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports


2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous


3 x Addressable Gen 2 headers


1 x Aura RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Start button


1 x Thermal Sensor header


1 x Thunderboltô header


Special Features
Extreme Engine Digi+


ñ 5K Black Metallic CapacitorsASUS Q-Design


ñ M.2 Q-Latch


ñ PCIe Slot Q-Release


ñ Q-DIMM


ñ Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


ñ Q-SlotASUS Thermal Solution


ñ M.2 heatsink backplate


ñ M.2 heatsink


ñ VRM heatsink designASUS EZ DIY


ñ BIOS FlashBackô button


ñ BIOS FlashBackô LED


ñ Clear CMOS button


ñ CPU Socket lever protector


ñ ProCool II


ñ Pre-mounted I/O shield


ñ SafeSlot


ñ SafeDIMM


Aura Sync


ñ Aura RGB header


ñ Addressable Gen 2 headers


Front Panel USB 3.2 Gen 2—Š2 with PD Fast-charge Support


ñ Support: up to 30W charging


ñ Output: 5/9V max. 3A, 12V max. 2.5A


ñ Compatible with PD3.0


Software Features
ROG Exclusive Software


ñ GameFirst VI


ñ ROG CPU-Z


ñ Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


ñ Sonic Radar III


ñ DTSÆSound UnboundASUS Exclusive Software


Armoury Crate


ñ AIDA64 Extreme (60 days free trial)


ñ Aura Creator- Aura Sync


ñ Xpert 4 (with AI Cooling II)


ñ Power Saving


ñ Two-Way AI Noise Cancellation


AI Suite 3


ñ Easy Optimization with AI Overclocking


ñ TPU


ñ DIGI+ VRM


ñ Turbo app


ñ PC Cleaner


MyAsus


Norton 360 for Gamers


WinRAR


UEFI BIOS


AI Overclocking Guide


ASUS EZ DIY


ñ ASUS CrashFree BIOS 3


ñ ASUS EZ Flash 3


ñ ASUS UEFI BIOS EZ Mode


FlexKey


MemTest86


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cablesAdditional Cooling Kit


1 x Thermal pad for M.2


1 x DDR5 fan holderMiscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Cable ties package


1 x M.2 backplate Q-Latch package


1 x M.2 Q-Latch package


1 x ROG key chain


1 x ROG Strix stickers


1 x ROG Strix thank you card


2 x M.2 Rubber Packages


1 x M.2 backplate RubberPackageDocumentation


1 x User guide


Operating System
WindowsÆ 11, WindowsÆ 10 64-bit


Form Factor
ATXForm Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


Warranty
3 Years





*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
