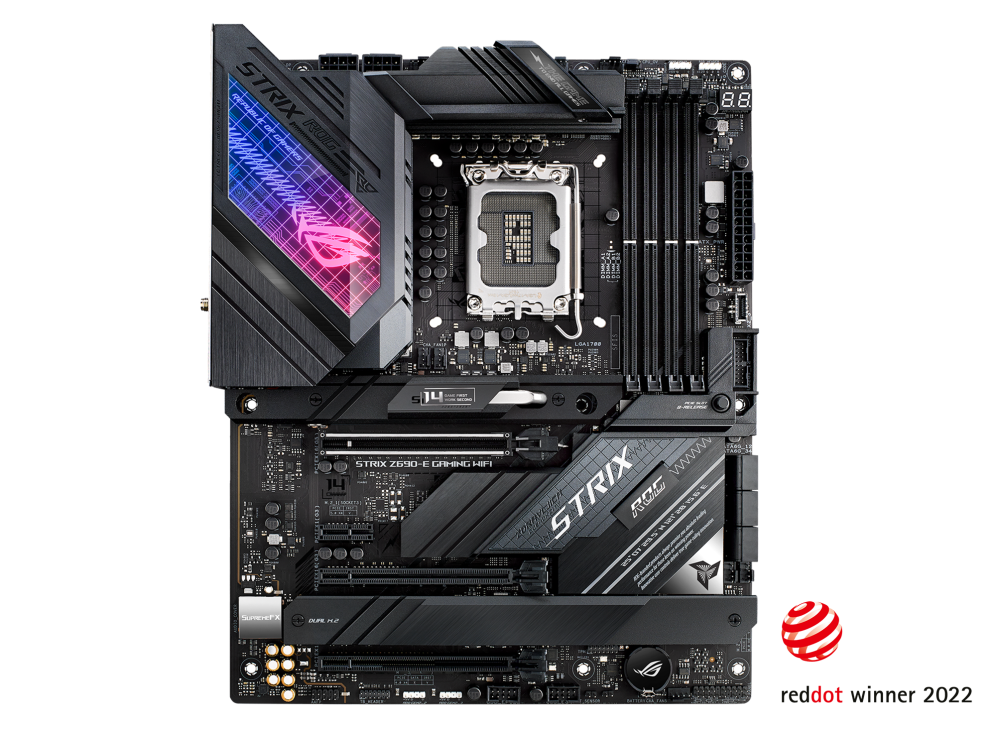

ASUS ROG STRIX Z690-E GAMING WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Specifications



CPU
IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors


Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
IntelÆ Z690 Chipset


Memory
4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports IntelÆ Extreme Memory Profile (XMP)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


Graphics
1 x DisplayPort**


1 x HDMIÆ***


* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


** Support 8K@60Hz as specified in DisplayPort 1.4.


*** Support 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
IntelÆ 12th Gen Processors*


1 x PCIe 5.0 x16 slot**


IntelÆ Z690 Chipset***


1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD)


1 x PCIe 3.0 x16 slot (supports x4 mode)


1 x PCIe 3.0 x1 slot


* Please check PCIe bifurcation table in Chapter 1 of user guide.


** When M.2_1 is occupied with SSD device, PCIEX16(G5)_1 will run x8 only.


*** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot.


*** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot.


Storage
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports


IntelÆ12th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)


- IntelÆ 12th Gen processors support PCIe 5.0 x4 mode.


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


- IntelÆ 12th Gen processors support PCIe 4.0 x4 mode.


Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110***


- IntelÆ 12th Gen processors support PCIe 4.0 x4 mode


IntelÆ Z690 Chipset**


M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)


Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****


Hyper M.2_2 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****


6 x SATA 6Gb/s ports*****


* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.


** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots.


*** When ROG Hyper M.2 card is installed on PCIEX16(G5), only Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G3), only Hyper M.2_1 slot can support PCIe 3.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.


**** When ROG Hyper M.2 card is installed on PCIEX16(G5) or PCIEX16(G3), Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.


***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.


Ethernet
1 x IntelÆ 2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2


"Wi-Fi 6E


2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band*


Bluetooth v5.2 hardware ready**


* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.


** Bluetooth v5.2 function will be ready in Windows 11 or later. "


USB
Rear USB: Total 12 ports


1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÆ)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


4 x USB 2.0 ports (4 x Type-A)


Front USB: Total 7 ports


Front USB (Total 7 ports)


1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Audio
"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


- Impedance sense for front and rear headphone outputs


- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback"


Audio Features


- SupremeFX Shielding Technology


- ALC4080 + Savitech SV3H712 AMP


- Gold-plated audio jacks


- Rear optical S/PDIF out port


- Premium audio capacitors


- Audio cover


Intrernal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


5 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connector


Storage related


3 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderbolt header


Special Features
Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink backplate


- M.2 heatsink


ASUS EZ DIY


- BIOS FlashBackô button


- BIOS FlashBackô LED


- Clear CMOS button


- CPU Socket lever protector


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header


- Addressable Gen 2 RGB headers


ASUS HYDRANODE


- 1 x Chassis fan support* (CHA_FAN1P)


* Visit ASUS Website for the latest compatibility list.


TPM header


Software Features
ROG Exclusive Software


- ROG CPU-Z


- GameFirst VI


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTSÆ Sound Unbound


- Anti-virus software


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (60 days free trial)


- AURA Creator


- AURA Sync


- Fan Xpert 4


- Two-Way AI Noise Cancelation


AI Suite 3


- 5-Way Optimization with AI Overclocking


TPU


EPU


DIGI+ VRM


Turbo app


MyAsus


WinRAR


UEFI BIOS


AI Overclocking Guide


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


FlexKey


MemTest86


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


4 x SATA 6Gb/s cables


ROG HYPER M.2 CARD


1 x ROG HYPER M.2 CARD


Miscellaneous


1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas


1 x M.2 Q-Latch package


1 x M.2 Q-Latch package for M.2 backplate


1 x M.2 Rubber Packages


2 x M.2 Screw Packages


1 x ROG Graphics card holder


1 x ROG key chain


1 x cable tie


1 x ROG STRIX stickers


1 x ROG STRIX thank you card


Installation Media


1 x Support DVD


Documentation


1 x User manual


Operating System
WindowsÆ 11 64-bit, WindowsÆ 10 64-bit


Form Factor
ATX


30.5cm x 24.4cm


Warranty
3 Years




*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
