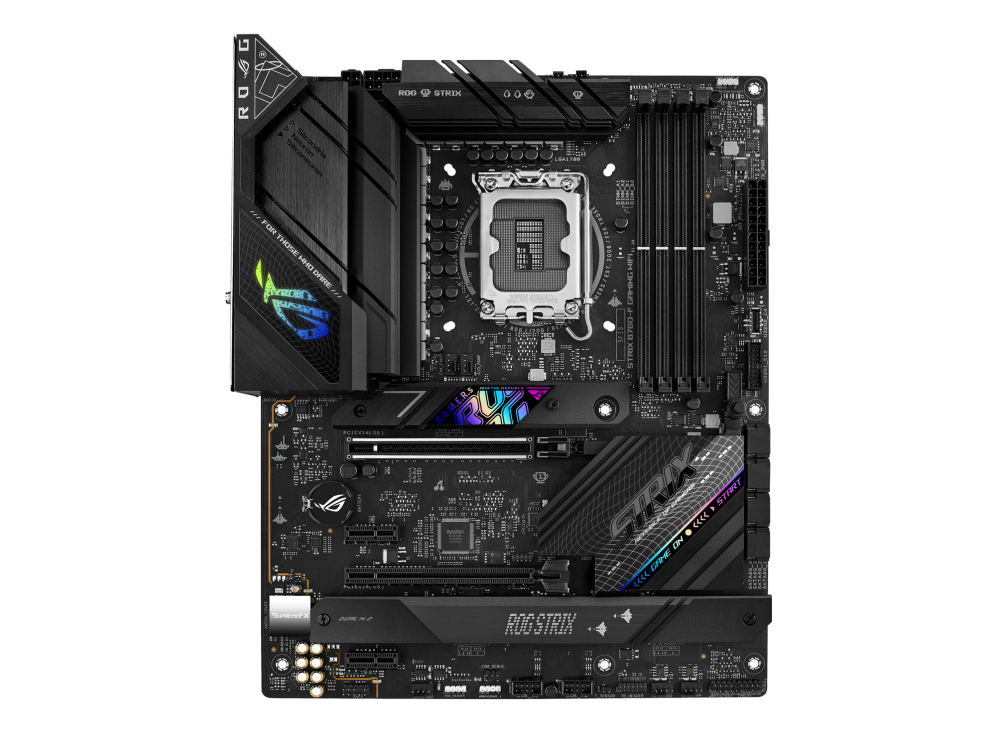

ASUS ROG STRIX B760-F GAMING WIFI INTEL LGA1700 MOTHERBOARD

Specifications



CPU
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors


Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0


Chipset
Intel B760 Chipset


Memory
4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports IntelÆ Extreme Memory Profile (XMP)


OptiMem II


Graphics
1 x DisplayPort


1 x HDMIÆ port


Graphics specifications may vary between CPU types.


Supports max. 4K@60Hz as specified in DisplayPort 1.4


Supports 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
Intel 13th & 12th Gen Processors


1 x PCIe 5.0 x16 slot


Intel B760 Chipset


1 x PCIe 3.0 x16 slot (supports x4 mode)


2 x PCIe 3.0 x1 slots


Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*


IntelÆ 13th & 12th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


IntelÆ B760 Chipset


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


4 x SATA 6Gb/s ports


IntelÆ Rapid Storage Technology supports SATA RAID 0/1/5/10.


Ethernet
1 x IntelÆ 2.5Gb Ethernet


ASUS LANGuard // TUF LANGuard


Wireless & Bluetooth
Wi-Fi 6E


2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band


BluetoothÆ v5.3


WiFi 6E 6GHz regulatory may vary between countries.


The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.


USB
Rear USB (Total 8 ports)


1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


1 x USB 3.2 Gen 2 port (1 x Type-A)


6 x USB 3.2 Gen 1 ports (6 x Type-A)


Front USB (Total 7 ports)


1 x USB 3.2 Gen 2 connector


1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports


2 x USB 2.0 headers support 4 additional USB 2.0 ports


Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


- Impedance sense for front and rear headphone outputs


- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback


Audio Features


- SupremeFX Shielding Technology


- Savitech SV3H712 AMP


- Premium audio capacitors


- Dedicated audio PCB layers


- Audio cover


*The rear panel Line out port does not support spatial audio. If youwish to use spatial audio make sure to connect your audio output device to theaudio jack on the front panel of your chassis.


Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


1 x USB 3.2 Gen 2 port (1 x Type-A)


6 x USB 3.2 Gen 1 ports (6 x Type-A)


1 x DisplayPort


1 x HDMIÆ port


1 x Wi-Fi Module


1 x IntelÆ 2.5Gb Ethernet port


5 x Audio jacks *


1 x Optical S/PDIF out port


1 x BIOS FlashBackô button


1 x Clear CMOS button


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


4 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


3 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ )


1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports


2 x USB 2.0 headers support 4 additional USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x Aura RGB header


1 x Front Panel Audio header (AAFP)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 xThunderboltô (USB4Æ) header


Special Features
Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink


- VRM heatsink


ASUS EZ DIY


- BIOS FlashBackô button


- BIOS FlashBackô LED


- Clear CMOS button


- CPU Socket lever protector


- ProCool


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


Aura Sync


- Aura RGB header


- Addressable Gen 2 headers


Software Features
ROG Exclusive Software


- GameFirst VI


- ROG CPU-Z


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTSÆ Sound Unbound


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (60 days free trial)


- Aura Creator


- Aura Sync


- Fan Xpert 4


- Power Saving


- Two-Way AI Noise Cancellation


AI Suite 3


- Performance And Power Saving Utility


- DIGI+ VRM


- PC Cleaner


MyAsus


Norton 360 for Gamers


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


MemTest86


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME


Accessories
Cables


2 x SATA 6Gb/s cables


Additional Cooling Kit


1 x Thermal pad for M.2


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Cable ties package


1 x M.2 Q-Latch package


2 x M.2 Rubber Package


1 x ROG key chain


1 x ROG Strix stickers


1 x ROG Strix thank you card


Documentation


1 x User guide


Operating System
WindowsÆ 11, WindowsÆ 10 64-bit


Form Factor
ATX Form Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


Warranty
3 Years





*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
