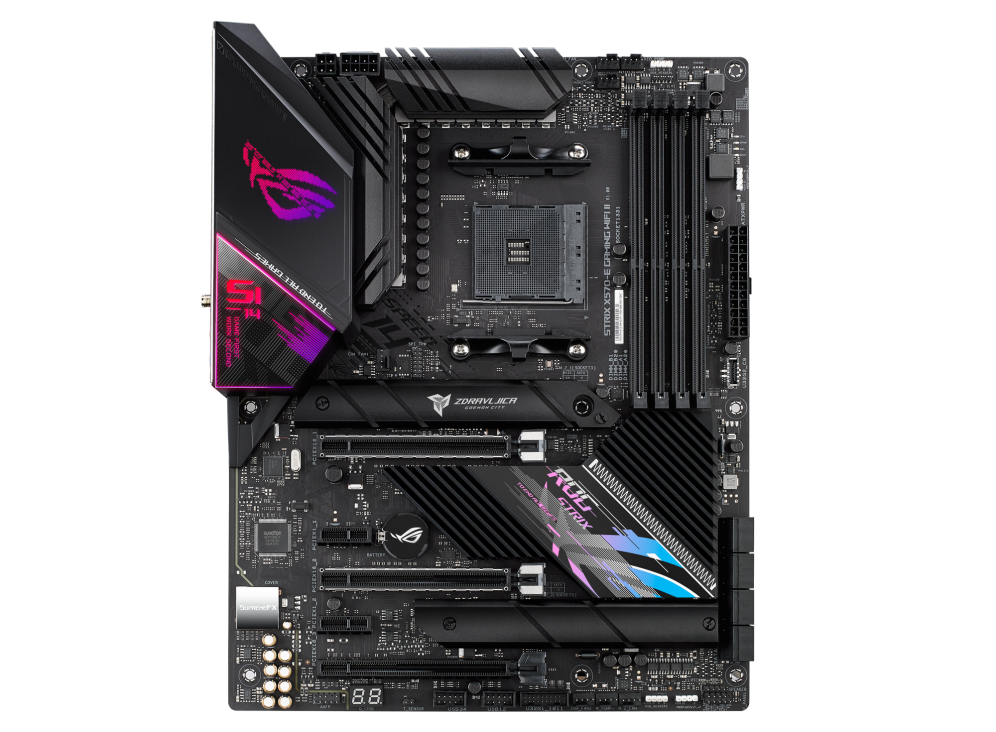

Specifications
AMD AM4 socket:?Ready for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2?Gen 2?and AMD?Store MI?to maximize connectivity and speed
Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heat pipe, dual on-board M.2 heatsinks and a water pump header
High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LAN Guard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
Best Gaming Connectivity: Supports PCIe 4.0, HDMI 2.0, and DisplayPortô 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
Industry-Leading Gaming Audio: High fidelity audio with Supreme FX S1220A, DTS Sound Unbound and Sonic Studio III
DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS Safe Slot and BIOS Flash Back
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Specifications
Chipset
X570
Memory
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory
AMD Ryzen 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen 2000 and 3000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphics
1 x DisplayPort
1 x HDMI port
ñ Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
ñ Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Expansion Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD Ryzen 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)*
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_2.
Storage
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series ProcessorM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset
M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
Supports RAID 0, 1, 10
Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel I211-AT 1Gb Ethernet
Anti-surge LAN Guard
ROG GameFirst Technology
Wireless & Bluetooth
Wi-Fi 6E
2—Š2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
USB
AMD Ryzen TM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
ñ 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD Ryzen TM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
ñ 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
ñ 1 x USB 3.2 Gen2 front panel connector
ñ 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
ñ 2 x USB3.2 Gen1 ports (at front panel)
ñ 4 x USB 2.0 ports (at front panel)
Front USB:
Total 7 ports
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
ñ Impedance sense for front and rear headphone outputs
ñ Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
ñ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
ñ High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
ñ Supports up to 32-Bit/192 kHz playback*
Audio Features
ñ Supreme FX Shielding Technology
ñ Gold-plated audio jacks
ñ Rear optical S/PDIF out port
ñ Premium audio capacitors
ñ Audio cover
Back Panel I/O Ports
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS Flash Back button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
ñ 5K Black Metallic Capacitors
ASUS Q-Design
ñ M.2 Q-Latch
ñ Q-Code
ñ Q-DIMM
ñ Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ñ Q-Slot
ASUS Thermal Solution
ñ M.2 heatsink
ASUS EZ DIY
ñ BIOS Flash Back button
ñ BIOS Flash Back LED
ñ ProCool II
ñ Pre-mounted I/O shield
ñ Safe Slot
AURA Sync
ñ AURA RGB headers
ñ Addressable Gen 2 headers
Software Features
ROG Exclusive Software
ñ RAM Cache III
ñ ROG CPU-Z
ñ GameFirst V
ñ Sonic Studio III + Sonic Studio Virtual Mixer
ñ Sonic Radar III
ñ DTS Sound Unbound
ñ Over wolf
ñ Anti-virus software
ASUS Exclusive Software
Armoury Crate
ñ AIDA64 Extreme (60 days free trial)
ñ AURA Creator
ñ AURA Sync
ñ Two-Way AI Noise Cancelation
AI Suite 3
ñ 5-Way Optimization by Dual Intelligent Processors 5
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
ñ EZ update
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
ñ ASUS Crash Free BIOS 3
ñ ASUS EZ Flash 3
ñ ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PXE
Accessories
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Package Dimensions
?34.59 x 27.3 x 7.9 cm
Weight
?2 kg 90 g
Warranty
3 Years
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
