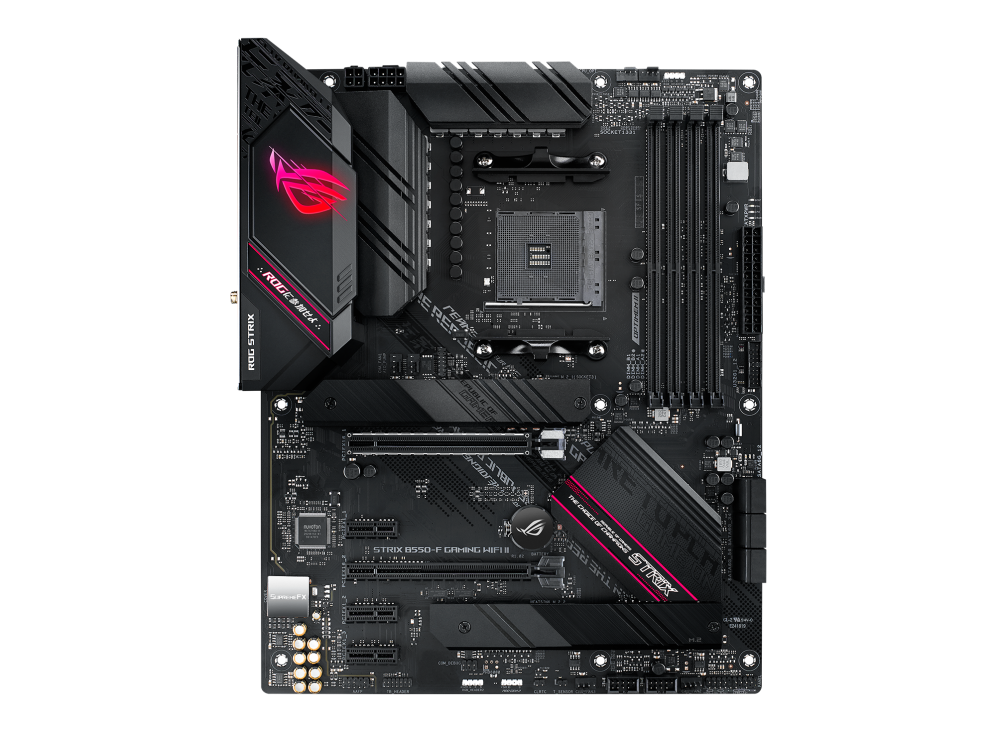

ASUS ROG STRIX B550-F GAMING WIFI II AMD AM4 MOTHERBOARD

Specifications



Model
STRIX B550-F GAMING WIFI II


Supported CPU


CPU Socket Type
AM4


CPU Type
Supports AMD Ryzen 5000 / 3000 Series Processors*


Supports AMD Ryzen 5000 / 4000 G-Series Processors


Chipset
AMD B550


Memory


Number of Memory Slots
4—Š288pin


Memory Standard
DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors)


DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors)


Maximum Memory Supported
128GB


Channel Supported
Dual Channel


ECC Supported
ECC Memory (ECC mode) support varies by CPU.


Buffer Supported
Un-buffered


Expansion Slot


PCI Express 4.0 x16
1 x PCI Express 4.0 x16


PCI Express 3.0 x16
1 x PCI Express 3.0 x16*


* Supports x4 mode.


* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.


PCI Express x1
3 x PCIe 3.0 x1


Storage Device


SATA 6Gb/s
6 x SATA 6Gb/s


M.2
AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors:


M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)


AMD B550 Chipset:


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*


* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.


SATA RAID
0/1/10


Onboard Video Chipset
Supported only by CPU with integrated graphic


Onboard Audio


Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220A


Audio Channels
7.1 Channels


Onboard LAN


LAN Chipset
Intel I225-V


Max LAN Speed
10/100/1000/2500Mbps


Wireless LAN
Wi-Fi 6E


802.11a/b/g/n/ac/ax


Bluetooth
Bluetooth 5.2


Rear Panel Ports


Back I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports


1 x Wi-Fi Module


1 x DisplayPort


1 x HDMI port


1 x Intel I225-V 2.5G Ethernet


1 x Optical S/PDIF out


5 x Audio jacks


1 x BIOS FlashBack button


Internal I/O Connectors


Onboard USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Other Connectors
Fan and cooling related


1 x 4-Pin AIO_Pump header


1 x 4-Pin CPU fan header


1 x 4-Pin CPU_OPT fan header


3 x 4-Pin Chassis fan headers


Miscellaneous


1 x Addressable Gen 2 header


2 x AURA RGB headers


1 x Clear CMOS header


1 x Front panel audio header (AAFP)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal sensor header


1 x Thunderbolt header


Physical Spec


Form Factor
ATX


LED Lighting
RGB


Dimensions (W x L)
12.0" x 9.6"


Power Pin
1 x 24-pin EATX Power connector(s)


1 x 8-pin ATX 12V Power connector(s)


1 x 4-pin ATX 12V Power connector(s)


Features
Special Features:


ASUS Q-Design


- ASUS Q-DIMM


- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)


- ASUS Q-Slot


ASUS Thermal Solution


- M.2 heatsink


AURA Sync


- AURA RGB headers


- Addressable Gen 2 RGB headers


ASUS EZ DIY


- BIOS FlashBack button


- BIOS FlashBack LED


- Clear CMOS header


- ProCool


- Pre-mounted I/O shield


- SafeSlot


Software Features:


ROG Exclusive Software


- RAMCache III


- ROG CPU-Z


- GameFirst VI


- Sonic Studio III + Sonic Studio Virtual Mixer


- Sonic Radar III


- DTS Sound Unbound


- Overwolf


- Anti-virus software


ASUS Exclusive Software Features


Armoury Crate


- AIDA64 Extreme (60 days free trial)


- Aura Creator


- Aura Sync


- Two-Way AI Noise Cancelation


AI Suite 3:


- Performance And Power Saving Utility


EPU


DIGI+ VRM


Fan Xpert 4


TurboV EVO


- EZ update


WinRAR


DAEMON Tools


Norton Anti-virus software (Free Trial version)


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Operating System
Windows 10 64-bit, Windows 11 64-bit


Warranty
3 Years





*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
