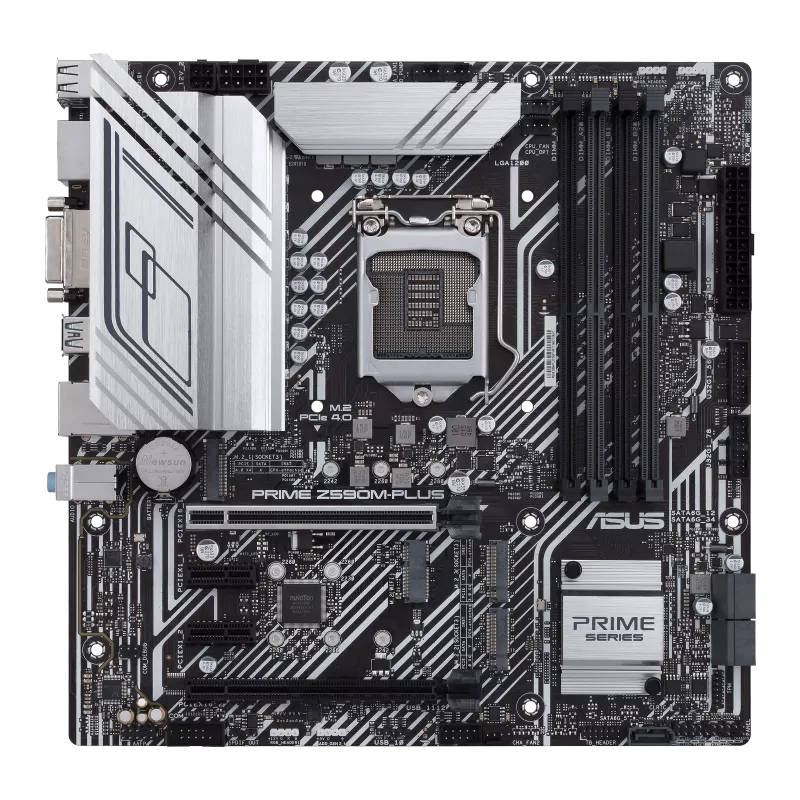

ASUS PRIME Z590M-PLUS GAMING MOTHERBOARD

Specifications   CPU IntelÆ Socket LGA1200 for 11th Gen IntelÆ Coreô processors & 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors*Supports IntelÆ 14 nm CPUSupports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset IntelÆ Z590 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports IntelÆ Extreme Memory Profile (XMP)OptiMem II* 10th Gen IntelÆ Coreô i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.* 11th Gen IntelÆ processors support 3200/2933/2800/2666/2400/2133 natively.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics 1 x DisplayPort 1.4**1 x DVI-D1 x HDMIô 1.4 / 2.0**** Graphics specifications may vary between CPU types.** IntelÆ 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.*** Only IntelÆ 11th Gen processors support HDMIô 2.0 with max. resolution of 4K@60Hz, others will only support HDMIô 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. Expansion Slots IntelÆ 11th & 10th Gen Processors*1 x PCIe 4.0/3.0 x16 slot- IntelÆ 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 mode- IntelÆ10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modeIntelÆ Z590 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)2 x PCIe 3.0 x1 slots* Supports PCIe bandwidth bifurcation for RAID on CPU function. Storage Total supports 3 x M.2 slots and 5 x SATA 6Gb/s portsIntelÆ11th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Only IntelÆ 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntelÆ Z590 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)5 x SATA 6Gb/s portsRaid function in IntelÆ Rapid Storage Technology is available with either 1. IntelÆ SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.To enable IntelÆ Optaneô Memory (Hybrid Storage device), it must be installed in PCH-attached slots with IntelÆ Rapid Storage Technology.* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_1 port cannot be used. Ethernet 1 x IntelÆ I219-V 1Gb Ethernet Wireless & Bluetooth M.2 slot only (Key E) (Support CNVi & PCIe interface)** Wi-Fi module is purchased separately. USB Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 ports Audio "Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback"Audio Features- Audio Shielding- Premium Japanese audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x DVI-D port1 x HDMITM port1 x IntelÆ I219V 1Gb Ethernet3 x Audio jacks Internal I/O Connectors Fan and cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)5 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderboltô header Special Features ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- ProcoolAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headers Software Features ASUS Exclusive SoftwareArmoury Crate- AURA SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 4- EZ updateASUS CPU-ZAI ChargerNorton Anti-virus software (Free Trial version)DAEMON ToolsWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x M.2 SSD screw packageInstallation Media1 x Support DVDDocumentation1 x User manual Operating System WindowsÆ 10 - 64 bit Form Factor mATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
