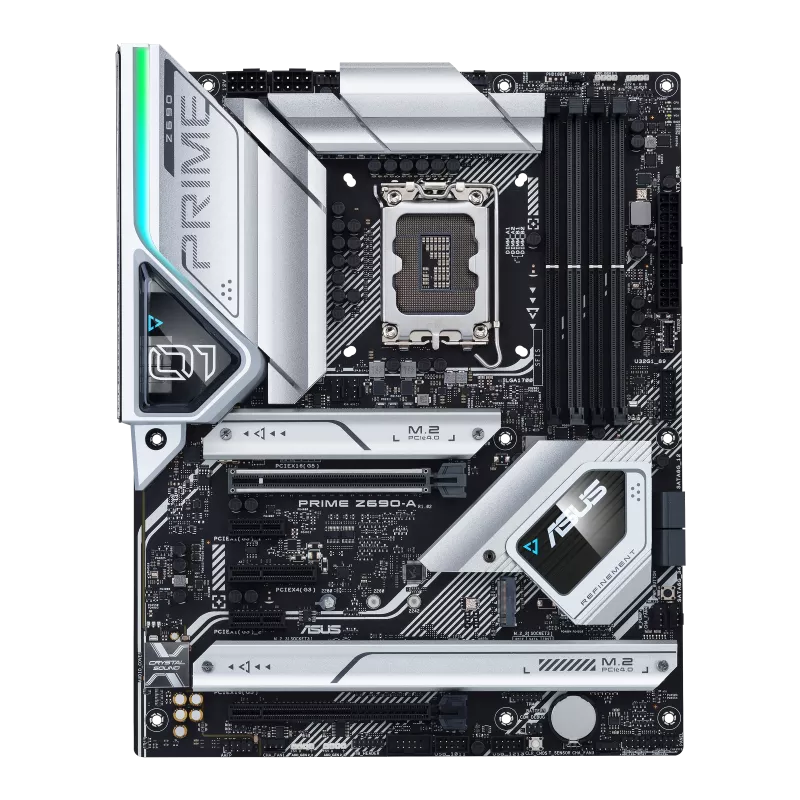

ASUS PRIME Z690-A DDR5 INTEL LGA1700 MOTHERBOARD

Specifications







CPU
IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors



Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**



* Refer to www.asus.com for CPU support list.



** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
Z690


Memory
4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*



Dual Channel Memory Architecture



Supports IntelÆ Extreme Memory Profile (XMP)



OptiMem II



* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


Graphics
1 x DisplayPort**



1 x HDMIÆ port***



* Graphics specifications may vary between CPU types.



** Supports max. 8K@60Hz as specified in DisplayPort 1.4.



*** Supports 4K@60Hz as specified in HDMI 2.1.


Storage
Supports4xM.2slotsand4xSATA6Gb/sports



IntelÆ12thGen Processors



M.2_1 slot (Key M), type 2242/2260/2280/22110



- IntelÆ12th Gen processors support PCIe 4.0 x4 mode.



IntelÆ Z690 Chipset**



M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)



M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)



4 x SATA 6Gb/s ports



* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.



** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots


Ethernet




1 x IntelÆ 2.5Gb Ethernet



ASUS LANGuard


USB
Rear USB:Total 8 ports



1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-CÆ)



3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-CÆ)



4 x USB 3.2 Gen 1 port(s) (4 x Type-A)







Front USB:Total 7 ports



1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-CÆ)



1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports



2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables



2 x SATA 6Gb/s cables



Miscellaneous



1 x M.2 Rubber Package(s)



1 x Q-connector



1 x M.2 Q-Latch package(s)



Installation Media



1 x Support DVD



Documentation



1 x User guide


Operating System
WindowsÆ11 64-bit,WindowsÆ1064-bit


Form Factor




ATX



30.5cm x 24.4cm
