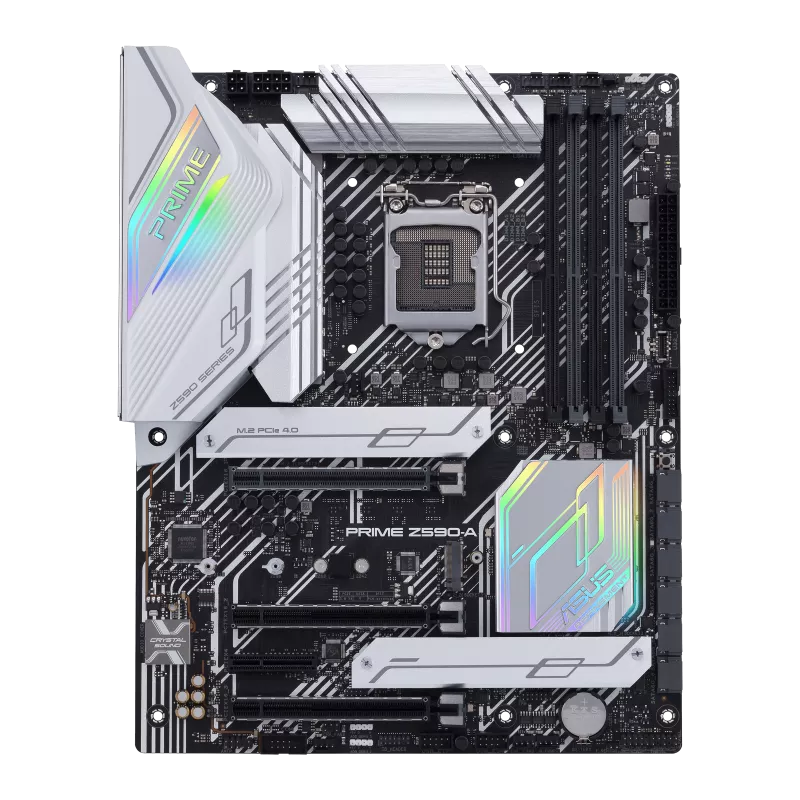

ASUS PRIME Z590-A INTEL LGA1200 MOTHERBOARD

Specifications




CPU
Intel Socket LGA1200 for 11th Gen Intel Core™ processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to ASUS website for CPU support list.
** Support depends on CPU type.




Chipset
Intel Z590 Chipset



Memory
4 x DIMM, Max. 128GB DDR4
Supports DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Dual Channel Memory Architecture
Supports Intel XMP, OptiMem II technology
* Frequency support varies per CPU




Graphics

1 x DisplayPort 1.4**
1 x HDMI™ 2.0***
** DP 1.4 resolution depends on CPU
*** HDMI features depend on CPU




Expansion Slots

Intel 11th & 10th Gen Processors
- 3 x PCIe 4.0/3.0 x16 slots (CPU dependent)
Intel Z590 Chipset
- 1 x PCIe 3.0 x4 slot
* Supports PCIe RAID on CPU




Storage

Total: 3 x M.2, 6 x SATA 6Gb/s
11th Gen CPU:
- M.2_1 (PCIe 4.0 x4)
Z590 Chipset:
- M.2_2 (PCIe 3.0 x4 & SATA) *SATA6G_2 disabled in SATA mode
- M.2_3 (PCIe 3.0 x4 & SATA) *SATA6G_6 disabled in SATA mode




Ethernet
Intel I225-V 2.5Gb Ethernet



USB

Rear (9 ports):
- 1 x USB 3.2 Gen 2x2 Type-C
- 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C)
- 4 x USB 2.0

Front (7 ports):
- 1 x USB 3.2 Gen 1 Type-C
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0 ports




Audio

Realtek S1220A 7.1 HD Audio CODEC
Optical S/PDIF out
Premium audio components, shielding & amplification




Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x 2.5Gb LAN
5 x Audio jacks
1 x Optical S/PDIF




Internal I/O

- 1 x 24-pin ATX
- 1 x 8-pin +12V
- 1 x 4-pin +12V
- 3 x M.2 slots
- 6 x SATA ports
- 1 x USB 3.2 Gen 1 Type-C
- 2 x USB 3.2 Gen 1
- 4 x USB 2.0
- Fan, RGB, AIO, Pump headers
- Clear CMOS, COM, TPM, Thermal sensor
- Thunderbolt header




Special Features

ASUS 5X Protection III
ASUS Q-Design (Q-Slot, Q-LED, Q-Latch, etc.)
Armoury Crate
AI Suite 3, AI Overclocking, Fan Xpert 4
Aura Sync RGB
EZ Flash 3 / CrashFree BIOS 3




BIOS
256 Mb Flash ROM, UEFI AMI BIOS



Accessories

3 x SATA cables
2 x M.2 rubber packages
1 x Q-connector
Support DVD
User manual




Operating System
Windows 10 64-bit



Form Factor
ATX (30.5 cm x 24.4 cm)
