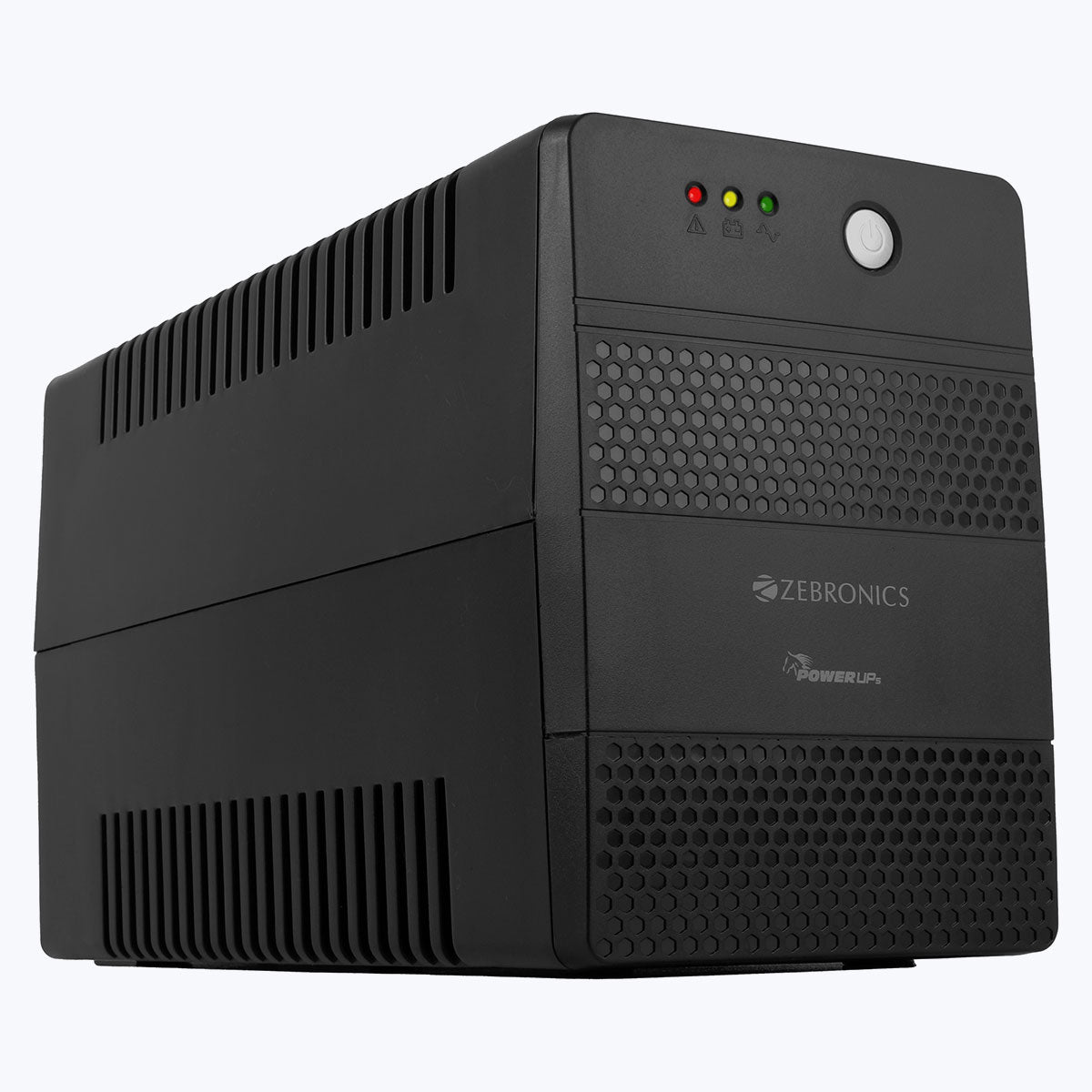

ZEBRONICS 1205VA UPS

Features:






Line interactive UPS



Auto restart while AC is recovering



Double Boost



Automatic Voltage Regulation (AVR)



Wide Input Range



Microcontroller Based



Generator Compatible






Specifications:






Capacity



(VA/W)
1000VA / 600W



Input



Nominal voltage
220-240 VAC



Voltage range
140-300 VAC



Frequency
50/60 Hz



Plug type
3 Pin plug



Output



Voltage range (AC mode)
230VAC ± 5 %



Voltage range (Batt. mode)
230 VAC ± 10 %



Frequency range (Batt. mode)
50 / 60  Hz ±1%



Transfer time
4 -  8 ms typ.



Wave form
Simulated sine wave



No. of output sockets
4




Protections
Overload, Short circuit, Over discharge & Over charge



Battery



Battery type
12V 7Ah x 2 nos



Charging current
1.2A



Recharge time
6 - 8H typ. (upto 90% capacity after complete discharge)




Indicators



No. of LEDs
3 LEDs



AC mode
Green LED glows



Battery mode
Orange LED blinks in an interval of 10 seconds



Fault
Red LED Glows



Alarm



Battery mode
Beeping every 10 seconds



Low battery
Beeping every 1 second



Overload
Beeping every 0.5 second



Fault
Continuous beeping



Physical Details



Product dimension (W x D x H)

13 x 31.4 x 17.5 cm




Net. weight
7.19 kg



Package dimension (W x D x H)

36.8 x 17.3 x 24.8 cm




Environmental Factors




Operational temperature
0-40⁰C



Noise Level
< 45dB



Country of Origin
People’s Republic of China




Package Contents




ZEB-U1205
1U



QR code guide
1U
