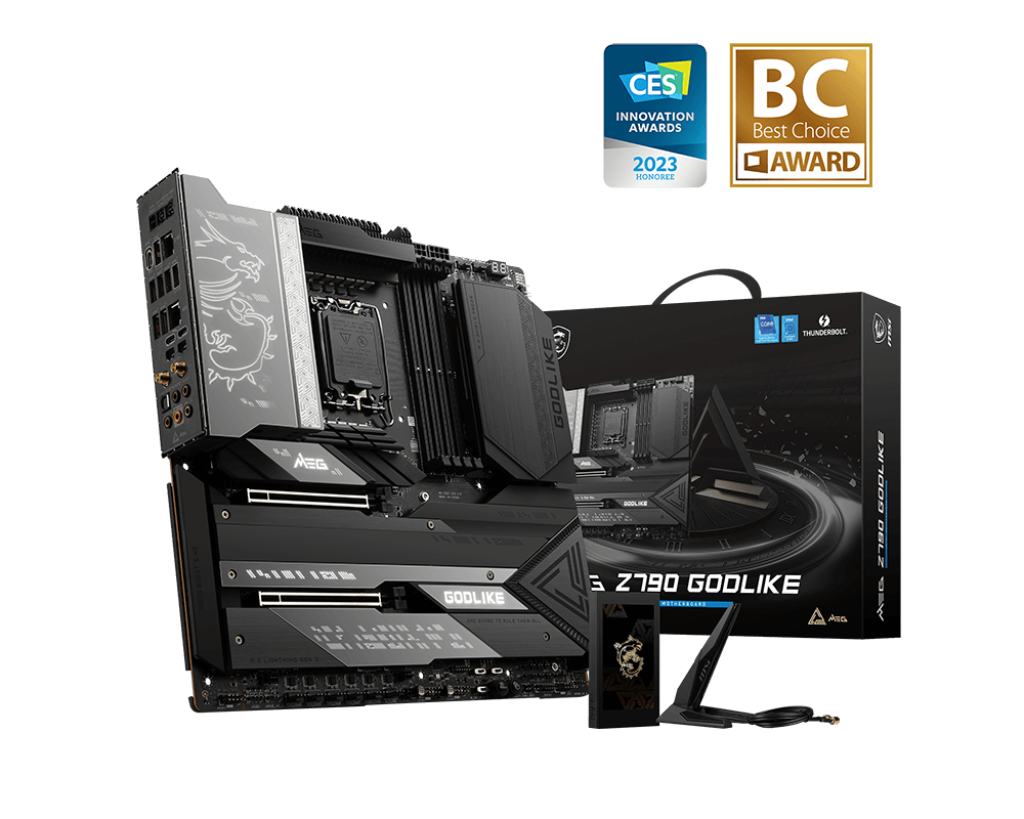

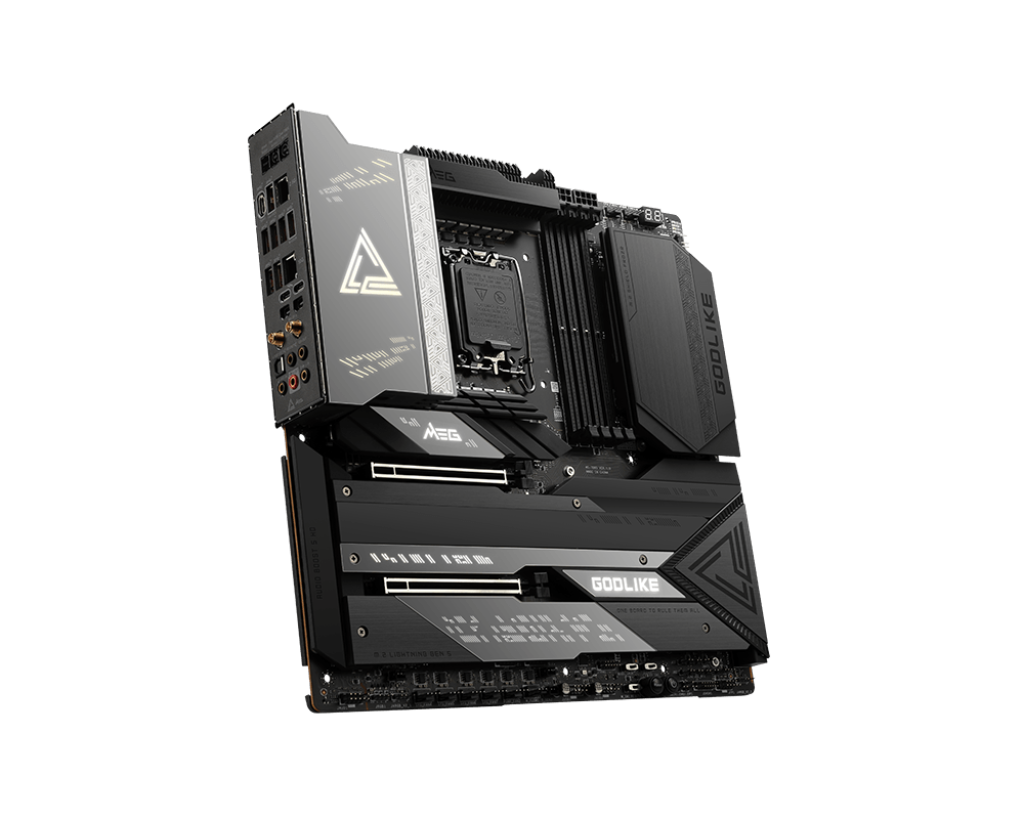

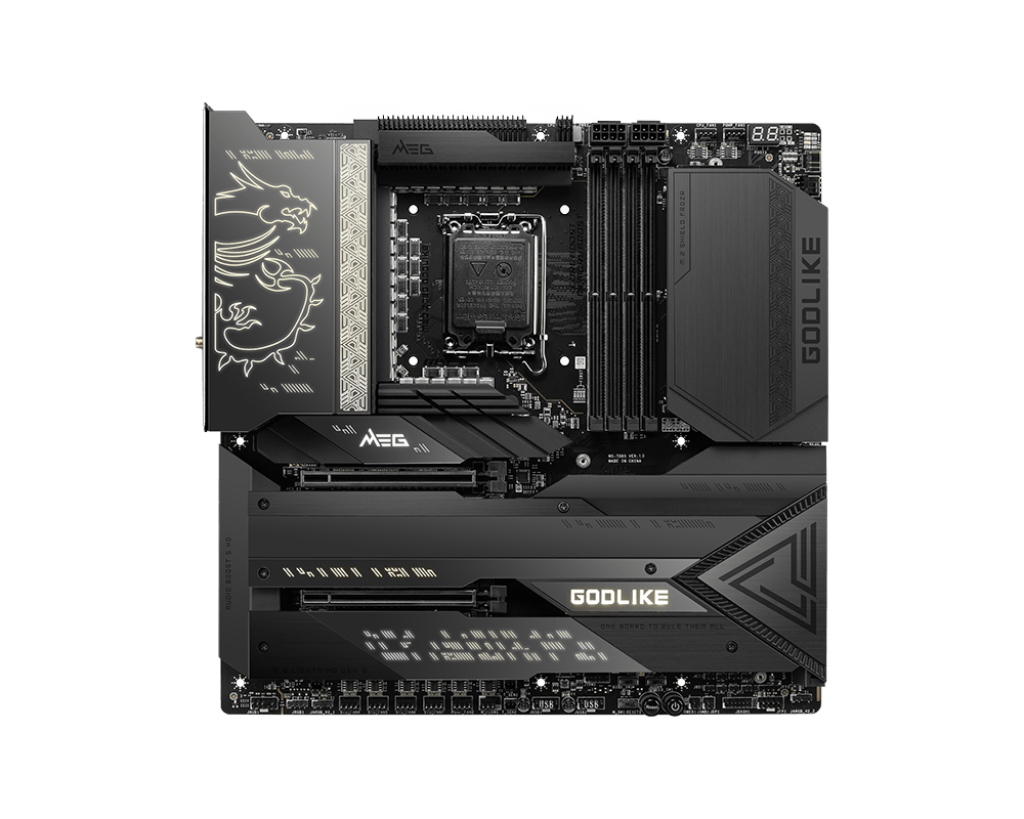

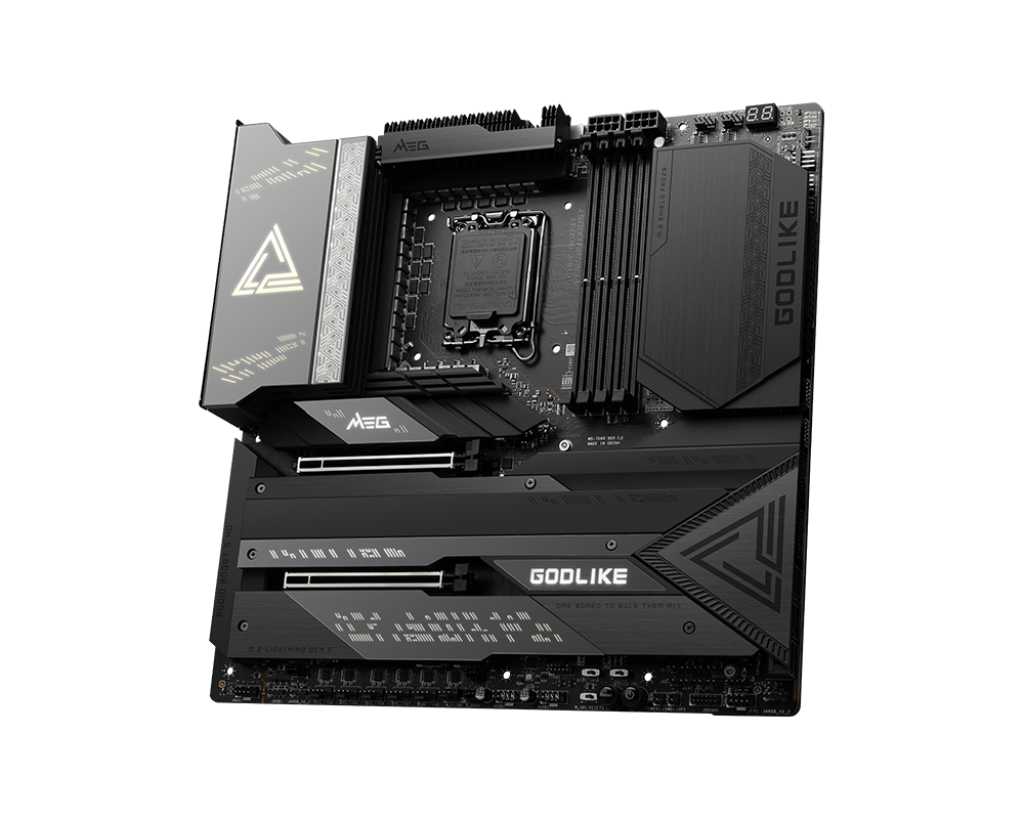

| Model | MEG Z790 GODLIKE |
| Chipset | INTEL Z790 |
| CPU Support | Supports 12th/13th Gen IntelĠ Coreī Processors, PentiumĠ Gold and CeleronĠ Processors |
| LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Max. overclocking frequency: |
| ƒ¯ 1DPC 1R Max speed up to 7800+ MHz |
| ƒ¯ 1DPC 2R Max speed up to 6600+ MHz |
| ƒ¯ 2DPC 1R Max speed up to 6400+ MHz |
| ƒ¯ 2DPC 2R Max speed up to 5600+ MHz |
| Supports IntelĠ XMP3.0 OC |
| Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Onboard Thunderbolt | Thunderbolt chip JHL8540 |
| 2x Thunderbolt4 (USB-C) ports |
| Supports up to 40Gbps transfer rate with Thunderbolt devices |
| Supports up to 20Gbps transfer rate with USB4 devices |
| Supports up to 10Gbps transfer rate with USB 3.2 devices |
| Supports up to 5V/3A,15W power charging |
| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Expansion Slot | 2x PCI-E x16 slot |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 PCIe 5.0 supports up to x8 (From CPU) |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage | 7x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices |
| M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices |
| M.2_5 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices |
| M.2_6 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_7 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage device |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Front) |
| 7x USB 3.2 Gen2 Type A (Rear) |
| 1x USB 3.2 Gen2 Type C (Rear) |
| 2x USB 3.2 Gen2x2 Type C (Front) |
| LAN | MarvellĠ AQC113CS-B1-C 10Gbps LAN |
| IntelĠ 2.5Gbps LAN |
| Wireless / Bluetooth | IntelĠ Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Supports BluetoothĠ 5.3, FIPS, FISMA |
| Audio | RealtekĠ ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| 7.1-Channel USB High Performance Audio |
| Supports S/PDIF output |
| Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x Front Type-C Quick Charge Connector(PD_PWR1) |
| 1x CPU Fan |
| 2x Pump Fan |
| 7x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Water Flow connector |
| 1x Slow Mode Booting Jumper(JSLOW) |
| 1x Front Audio (JAUD) |
| 2x Thermal Sensor connectors(T_SEN) |
| 1x Tuning Controller connector(JDASH) |
| 3x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 |
| 4x USB 3.2 Gen1 Type A |
| 2x USB 3.2 Gen 2x2 Type C |
| V-check point |
| LED Feature | 1x EZ LED Control switch |
| 4x EZ Debug LED |
| 1x 2-Digit Debug Code LED |

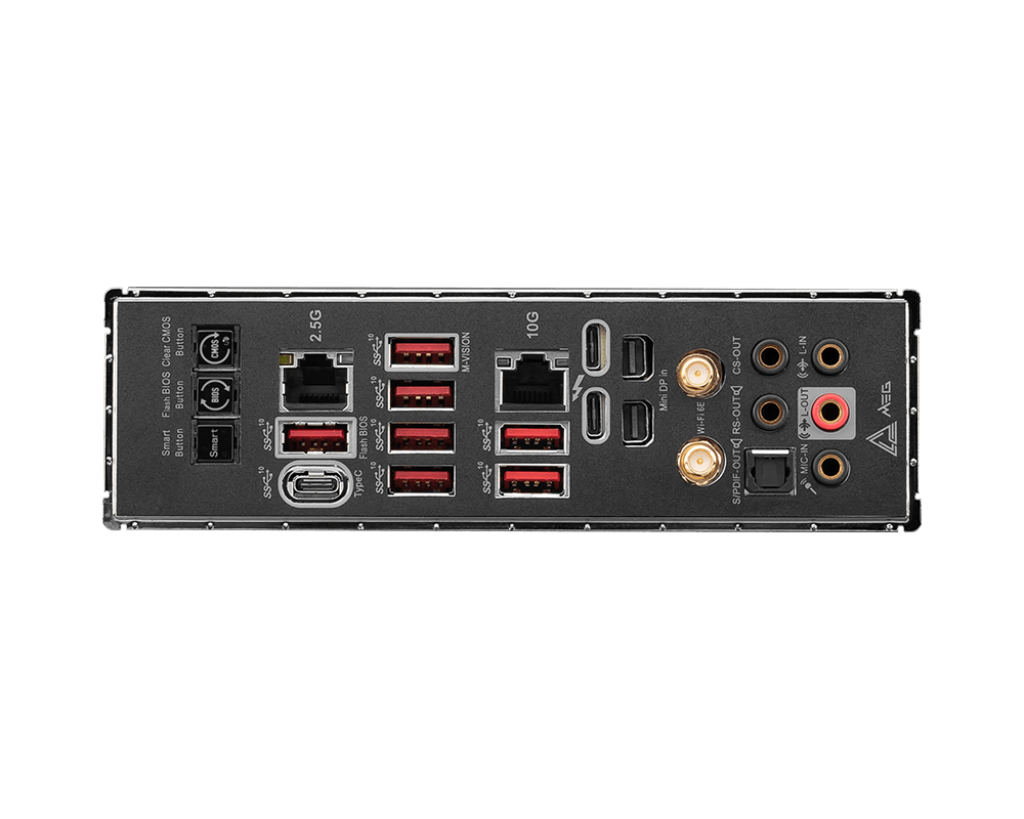

| Back Panel Ports | Clear CMOS Button |
| Flash BIOS Button |
| 2.5G LAN |
| 10G Super LAN |
| Thunderbolt 4 40Gbps (Type-C) |
| Wi-Fi / Bluetooth |
| Audio Connectors |
| Smart Button |
| USB 3.2 Gen 2 10Gbps (Type-C) |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| Mini DisplayPort Input (for Thunderbolt passthrough) |
| Optical S/PDIF-Out |
| Operating System | Support for WindowsĠ 11 64-bit, WindowsĠ 10 64-bit |
| PCB Dimension | E-ATX |
| 304.8mmx310mm |
| Warranty | 3 Years |
