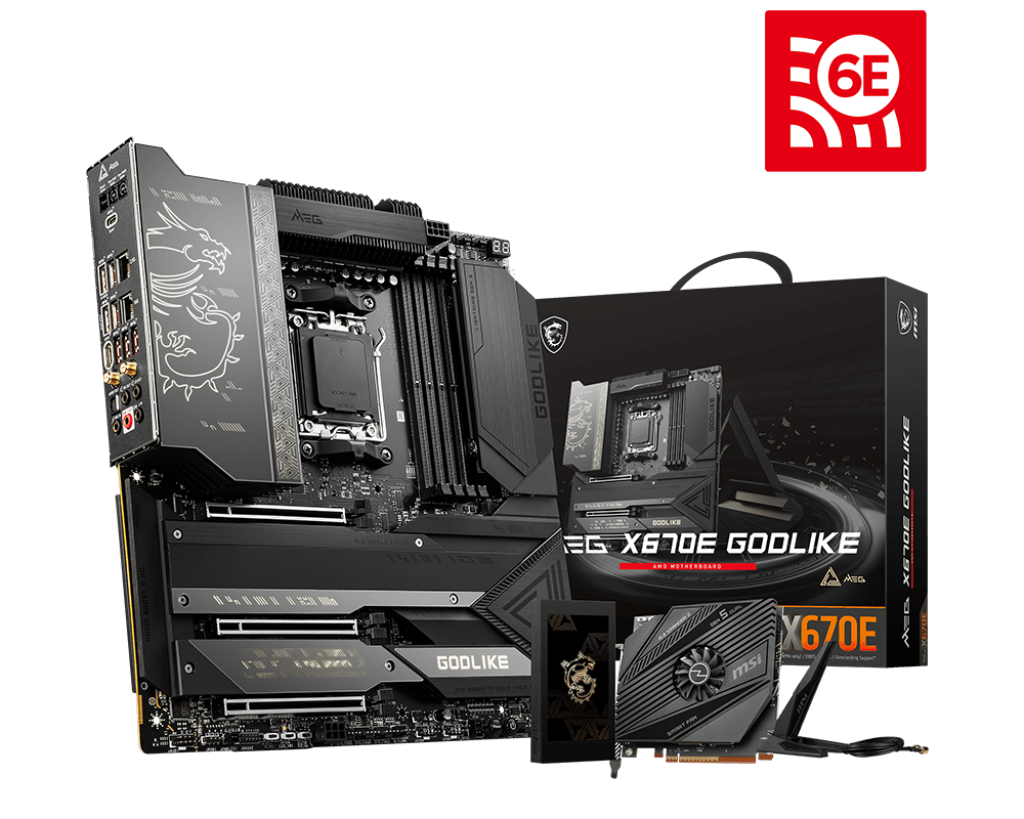

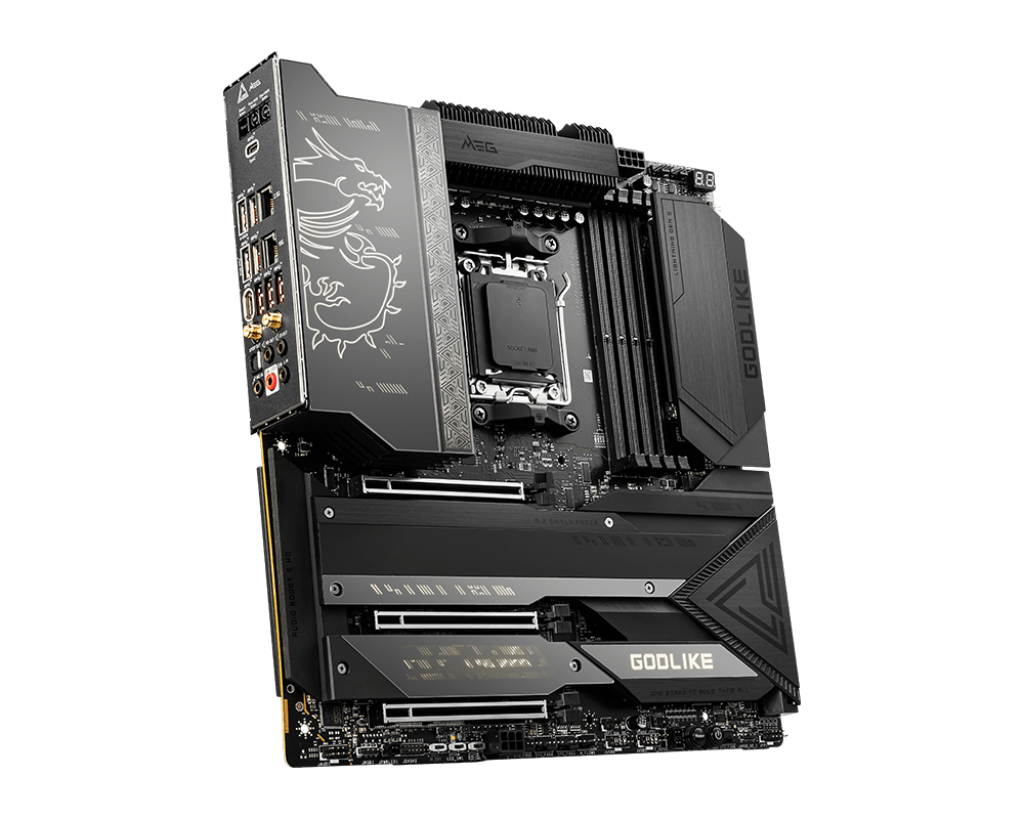

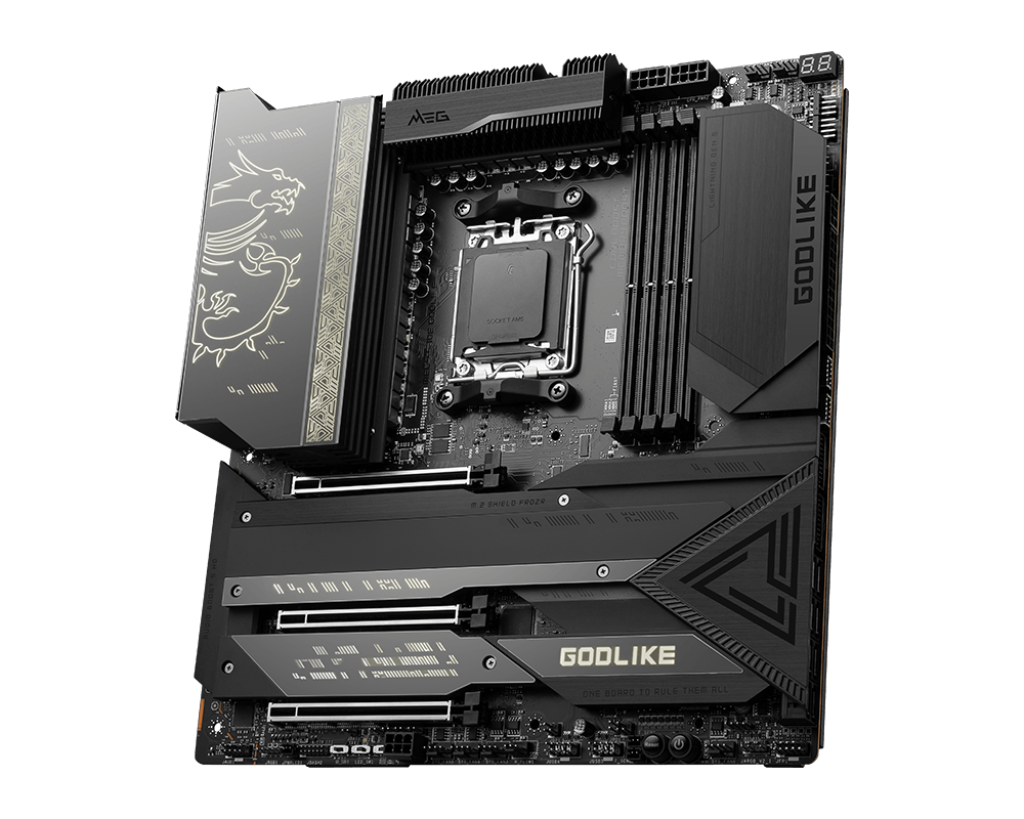

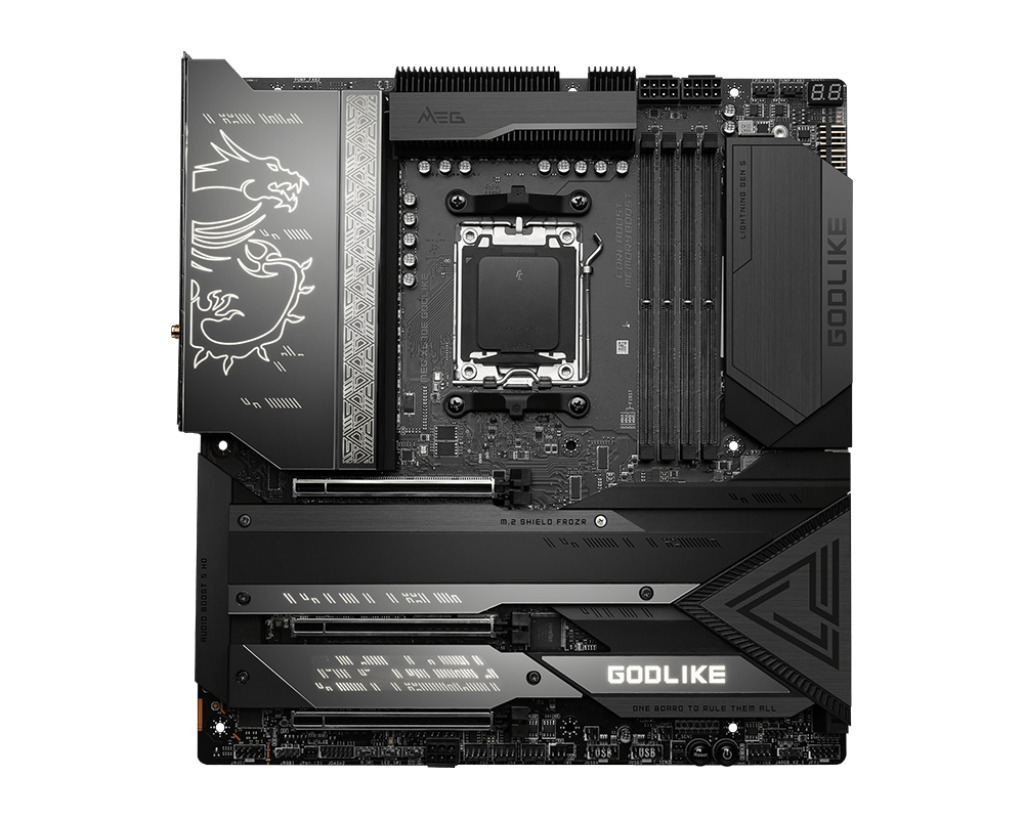

MSI MEG X670E GODLIKE AMD AM5 MOTHERBOARD

Be the first to review this product

Special Price ₹143,825.00 Regular Price ₹300,000.00

Details

Specifications

Manufacturer Part No	MEG X670E GODLIKE
Operating System	Support for Windowsƒ† 11 64-bit, Windowsƒ† 10 64-bit
CPU	Supports AMD Ryzenƒ´ 7000 Series Desktop Processors
Chipset	AMDƒ† X670 Chipset
CPU Socket	Socket AM5
Form Factor	E-ATX
Memory	4x DDR5, Maximum Memory Capacity 128GB
LAN	Marvellƒ† AQC113-B1-C 10Gbps LAN
Intelƒ† I225V 2.5Gbps LAN
Wireless LAN	AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Supports Bluetoothƒ† 5.2
Audio	Realtekƒ† ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Multi GPU	Supports NVIDIAƒ† SLIƒ´ Technology
Supports AMD MULTI-GPU
Storage	4 x M.2 slot
8 x SATA 6G port
Raid	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

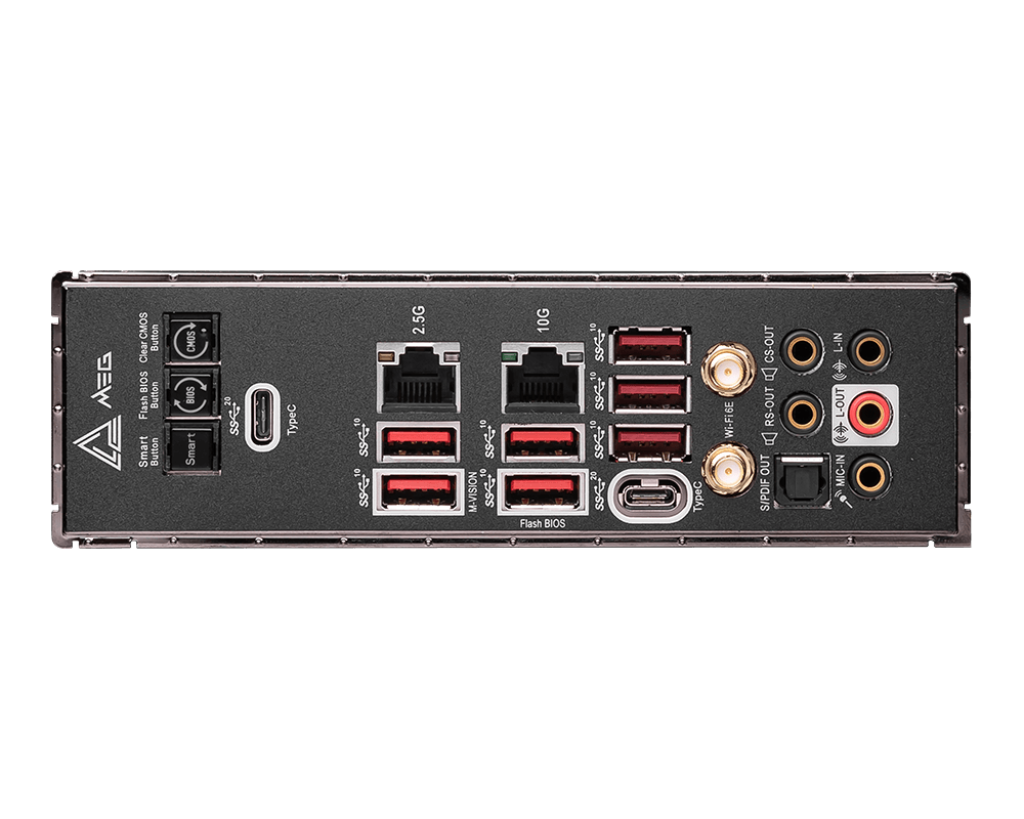

I/O (Rear)	Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Smart Button
USB 3.2 Gen 2—Š2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2—Š2 20Gbps (Type-C)
Optical S/PDIF-Out
Expansion Slots	3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
USB (Front)	4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2x2 Type C ports
1 x USB 3.2 Gen2 Type C ports
USB (Rear)	7 x USB 3.2 Gen2 Type A ports
2 x USB 3.2 Gen2x2 Type C ports
Internal Connectors	1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 4pin or 6 pin)
1 x Front Type-C Quick Charge Connector(PD_PWR1)
1 x CPU Fan
2 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Water Flow connector
1 x Front Audio (JAUD)
2 x Thermal Sensor connectors(T_SEN)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
V-check point
Dimensions	11.33? x 12.00?
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
