MAG B760M MORTAR WIFI II
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

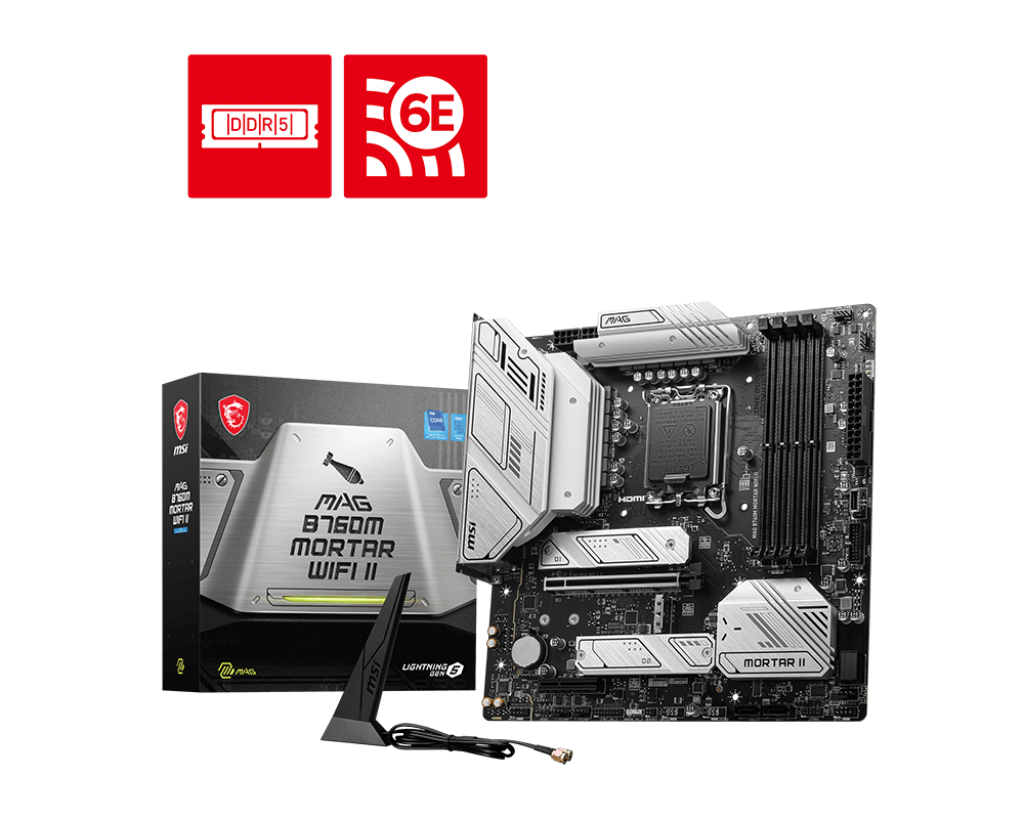

The MAG B760M MORTAR WIFI II is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all.
The MAG B760M MORTAR WIFI II motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Micro-ATX Socket Type: LGA 1700 Chipset: Intel B760
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760M MORTAR WIFI II is able to sustain heavy CPU power loads to support system-demanding work settings: 1. Digital PWM IC 2. 12-Phase Duet Rail CPU Power (75A DrMOS) 3. 1-Phase GT Power 4. 1-Phase AUX Power
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot (primary slot with Steel Armor) 1 x PCIe 3.0 x4 slot
The MAG B760M MORTAR WIFI II motherboard features MSI's Gen4 M.2 slots: 3 x Gen4 x4 64Gbps slots* *2 with M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

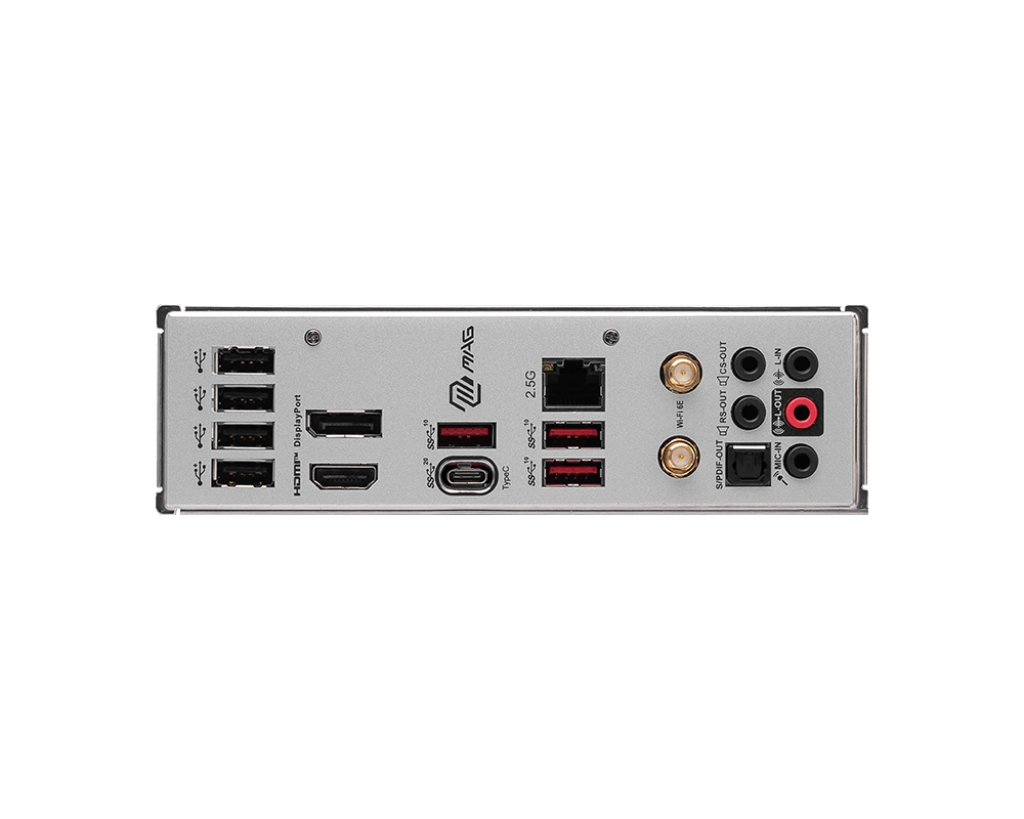

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
| Featured | Yes |
|---|---|
| brand | MSI |
