About this item

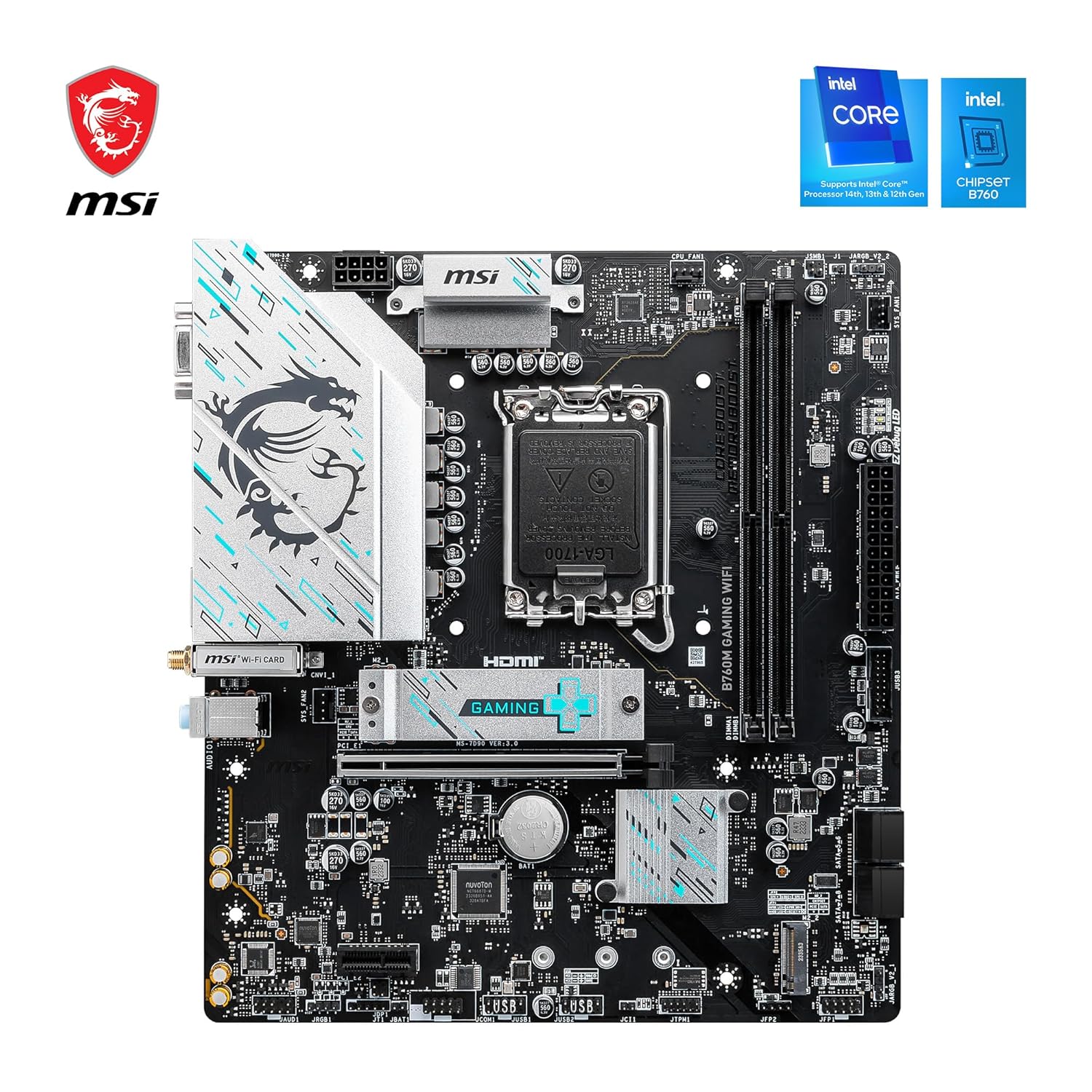

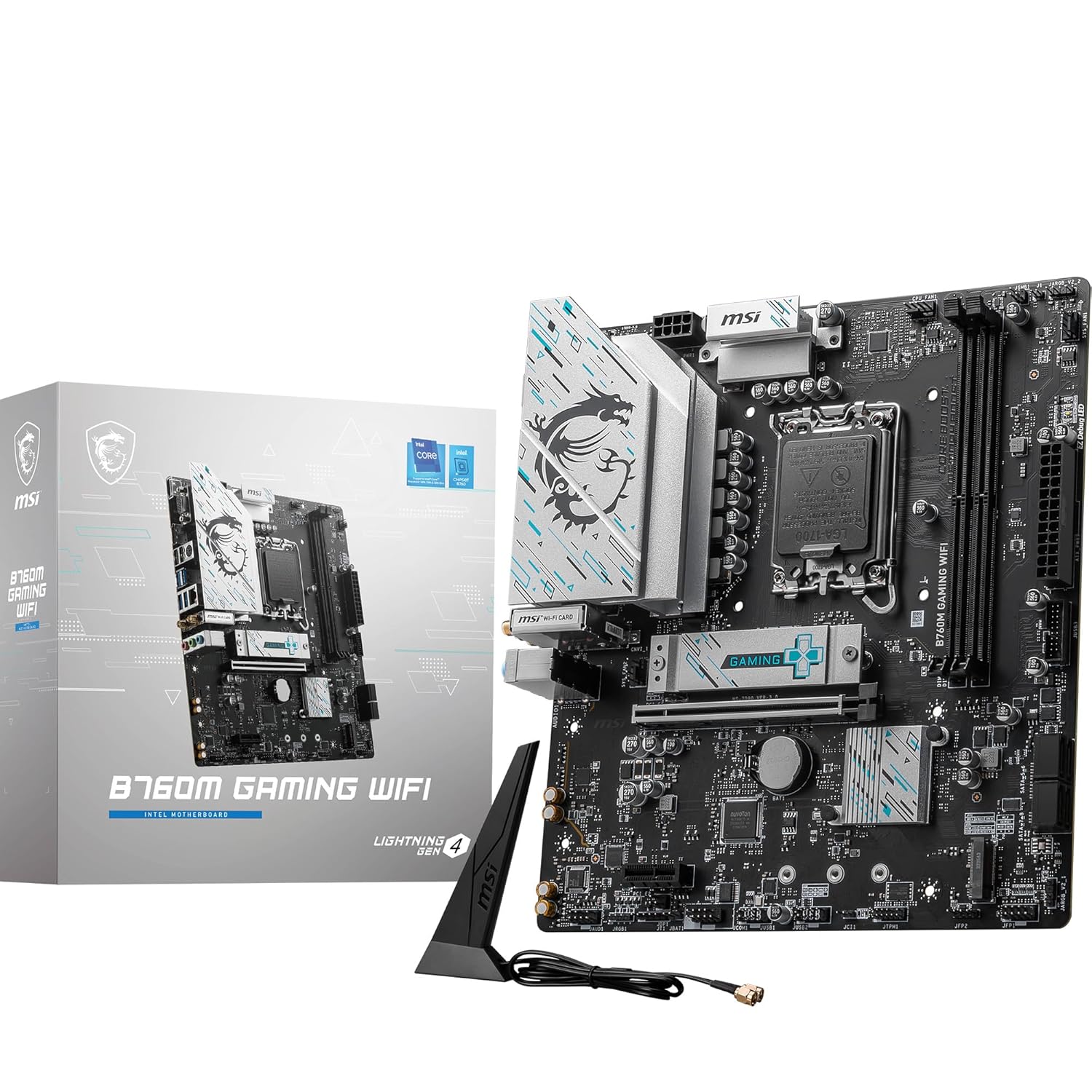

• Intel Core 14th, 13th and 12th Gen - The B760M GAMING WIFI is a Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, Intel Core 14th, 13th & 12th Gen); The VRM features Core Boost technology for improved stability & performance
• INTEGRATED & AI COOLING - VRM cooling features 7W/mK MOSFET thermal pads. Additional cooling includes chipset heatsink, M.2 Shield Frozr; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
• DDR5 MEMORY, PCIe 4.0 x16 SLOT - 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 8000+ MHz); 1 x PCIe 4.0 x16 slot (64GB/s) supports graphics cards and includes Steel Armor
• DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr on the primary slot to prevent thermal throttling during hyper-fast SSD access

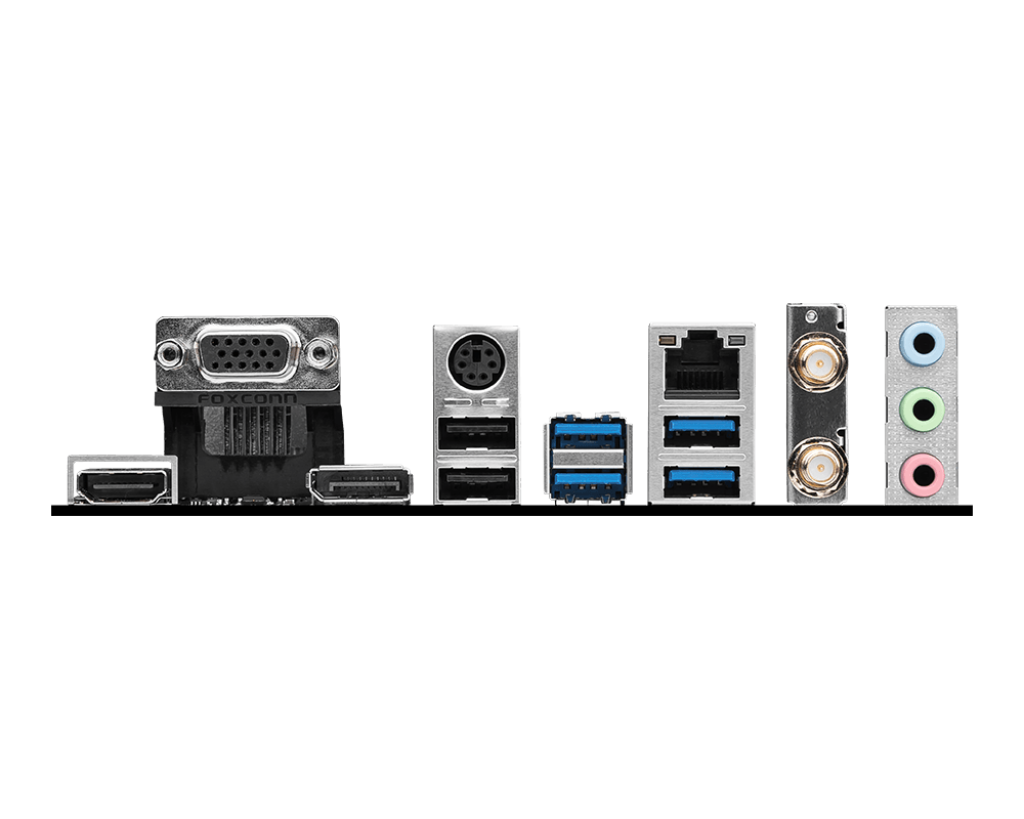

• WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 2.1 and 7.1 HD Audio with Audio Boost
