Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: Direct 8+2+1 Power System with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
EZ DIY: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

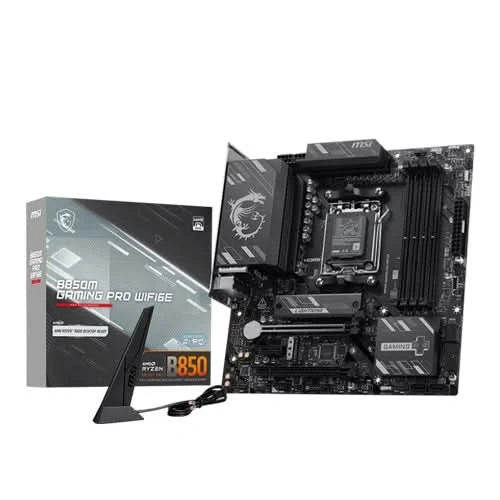

The B850M GAMING PRO WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 8+2+1 POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850M GAMING PRO WIFI6E is ready to sustain heavy gaming loadings.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Specifications
Platform
AMD
Socket
AM5
Cpu Type
Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset
B850
Memory Speed
up to 8200+
Max Memory Support
256 GB
Supported Memory Type
DDR5
Channel Supported
Dual Channel
Memory Feature
Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only
Graphics Port
1x HDMI,1x DisplayPort
Expansion Slots
2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Internal I/O Connector
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)3x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
Form Factor
Micro-ATX
Warranty
3 Years
Note
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
