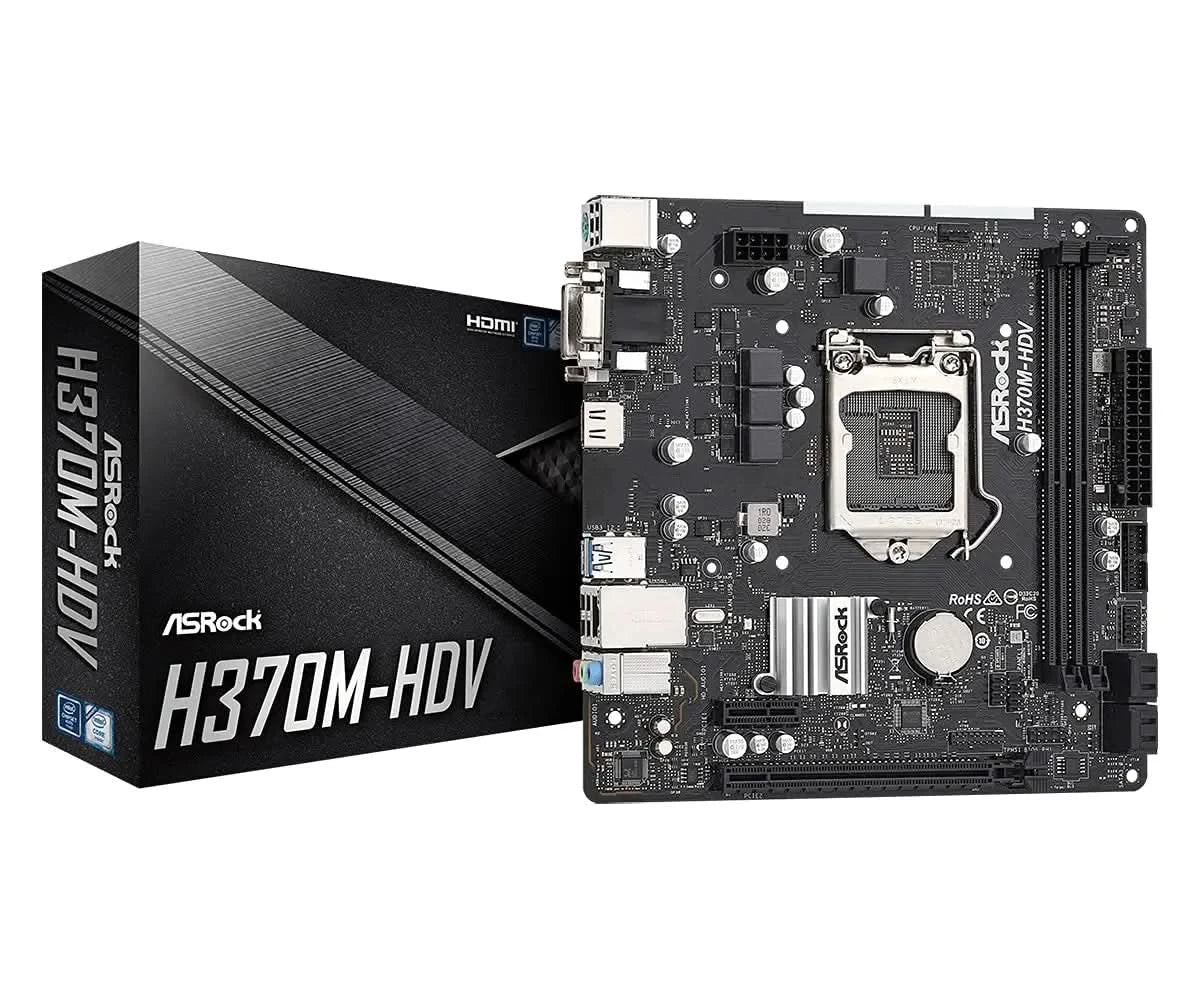

ASRock H370M-HDV LGA1151 Intel H370 DDR4 Micro ATX Motherboard

About the Item

Supports 9th and 8th Gen Intel Core Processors
4 Power Phase design
2 DIMMs, Up to DDR4 2666 MHz
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, DVI-D, HDMI
7.1 CH HD Audio (Realtek 887/897 Audio Codec)
4 x SATA3




4 x USB 3.2 Gen1 (2 Front, 2 Rear)
6 x USB 2.0 (2 Front, 4 Rear)
Realtek Gigabit LAN








Features & Specs




Processor Socket
LGA 1151


Compatible Devices
Personal Computer


RAM Memory Technology
DDR4


Compatible Processors
Supports 9th and 8th Gen Intel® Core™ Processors


Chipset Type
Intel H370


Memory Clock Speed
2133 MHz


Platform
Windows


CPU Model
Core Duo


DriveMemory Storage Capacity
64 GB


Ram Memory Maximum Size
64 GB


Main Power Connector Type
8-pin


Graphics Card Interface
PCI Express


Memory Slots Available
2 DIMMs


Number Of Ports
6


S/PDIF Connector Type
Optical


System Bus Standard Supported
SATA 3


Total SATA Ports
4


USB 2.0
4


Total USB Ports
11


Number of Ethernet Ports
1


Total HDMI Port
1


Total PCIe Ports
2


Additional Details



Item Dimensions L x W x H
21L x 7W x 27H Centimeters
