Specifications
| CPU | Supports 12th Gen Intel Core Processors |
| Processor socket LGA1700 | |
| Chipset | Intel B660 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 |
| Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 4800+ MHz | |
| 1DPC 2R Max speed up to 4000+ MHz | |
| 2DPC 1R Max speed up to 4000+ MHz | |
| 2DPC 2R Max speed up to 3600+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Expansion Slot | 2x PCIe x16 slots |
| PCI_E1 (From CPU) | |
| Support PCIe 4.0 x16 | |
| PCI_E3 (From B660 chipset) | |
| Support PCIe 3.0 x4 | |
| 1x PCIe 3.0 x1 slot (Fom B660 chipset) | |
| Onboard Graphics | 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2 |
| 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2 | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 4x SATA 6Gb/s ports (From B660 chipset) |
| 2x M.2 slots (Key M) | |
| M2_1 slot (From CPU) | |
| Supports up to PCIe 4.0 x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (From B660 chipset) | |
| Supports up to PCIe 4.0 x4 | |
| Supports up to SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Supports Intel Optane Memory | |
| Support Intel Smart Response Technology for Intel Core processors | |
| SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN | 1x Realtek RTL8125BG 2.5Gbps LAN controller |
| USB | Intel B660 Chipset |
| 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel | |
| 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) | |
| Asmedia ASM1074 | |
| 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 2x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |
| 1x TBT connector (supports RTD3) | |
| 1x Serial port | |
| 1x Tuning Controller connector | |
| LED Features | 1x 4-pin RGB LED connector |
| 2x 3-pin RAINBOW LED connectors | |
| 4x EZ Debug LED | |

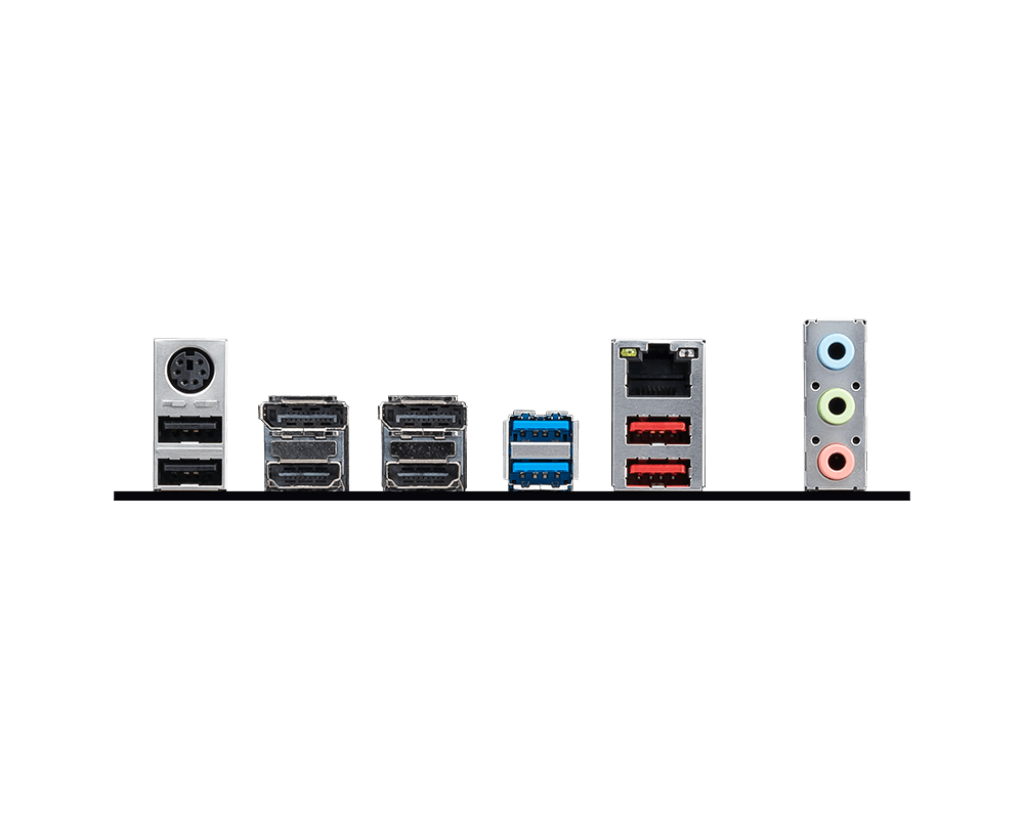

| Back panel ports | Keyboard / Mouse |
| DisplayPort | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| LAN port | |
| Audio connector | |
| USB 2.0 | |
| HDMI | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| Product Dimensions | ?24.38 x 24.38 x 6.35 cm |
| Weight | ?1 kg |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | MSI |
