| Chipset | AMD B650 |
| CPU Support | Supports AMD Ryzenƒ´ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 4800 MHz (by JEDEC & PRO) | |
| Max. overclocking frequency: | |
| ƒ¯ 1DPC 1R Max speed up to 6400+ MHz | |
| ƒ¯ 1DPC 2R Max speed up to 5800+ MHz | |
| ƒ¯ 2DPC 1R Max speed up to 6000+ MHz | |
| ƒ¯ 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| Onboard Graphics | 1x HDMIƒ´ |
| 1x DisplayPort | |
| Support HDMITM2.1, maximum resolution of 4K 60Hz* | |
| Supports DP1.4, maximum resolution of 4K 60Hz* | |
| Expansion Slot | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| Storage | 2x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G port | |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 4x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| LAN | RealtekĠ8125BG 2.5G LAN |
| Wireless / Bluetooth | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothĠ5.2** | |
| Audio | RealtekĠALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| LED Feature | 4x EZ Debug LED |

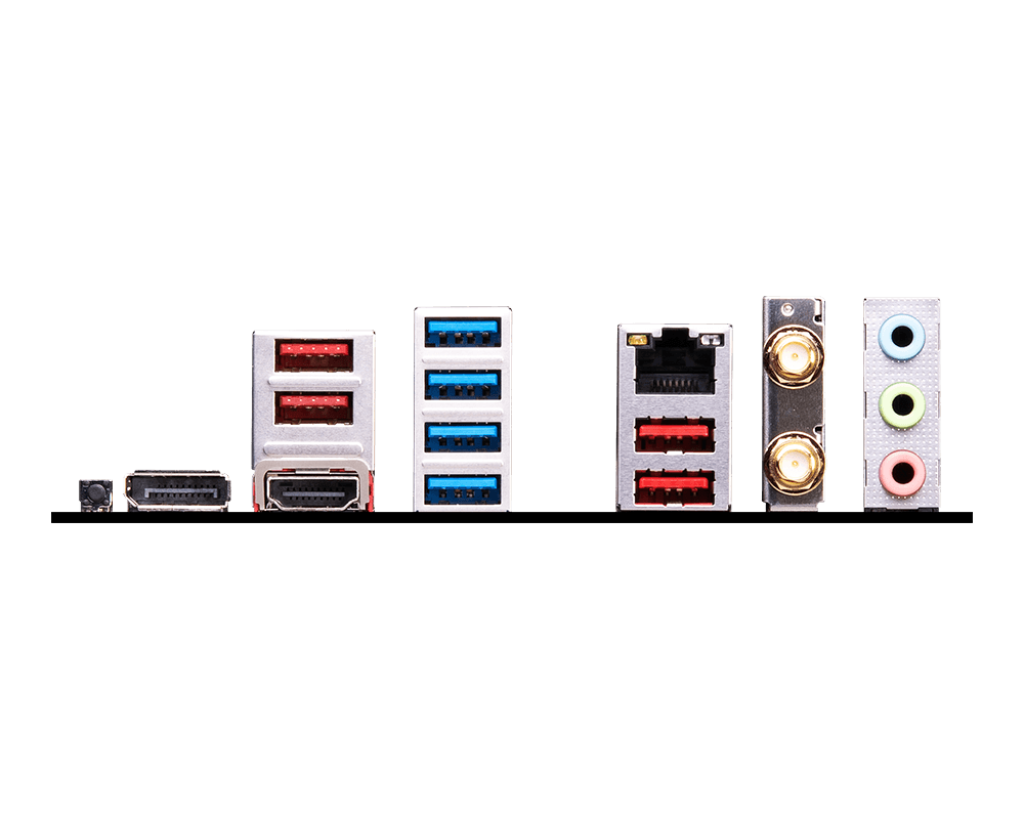

| Back Panel Ports | 1. USB 3.2 Gen 2 10Gbps (Type-A) |
| 2. USB 3.2 Gen 1 5Gbps (Type-A) | |
| 3. 2.5G LAN | |
| 4. Wi-Fi / Bluetooth | |
| 5. Audio connectors | |
| 6. Flash BIOS Button | |
| 7. DisplayPort | |
| 8. HDMIƒ´ | |
| 9. USB 3.2 Gen 2 10Gbps (Type-A) | |
| Operating System | Support for WindowsĠ 11 64-bit, WindowsĠ 10 64-bit |
| PCB Dimension | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | MSI |
