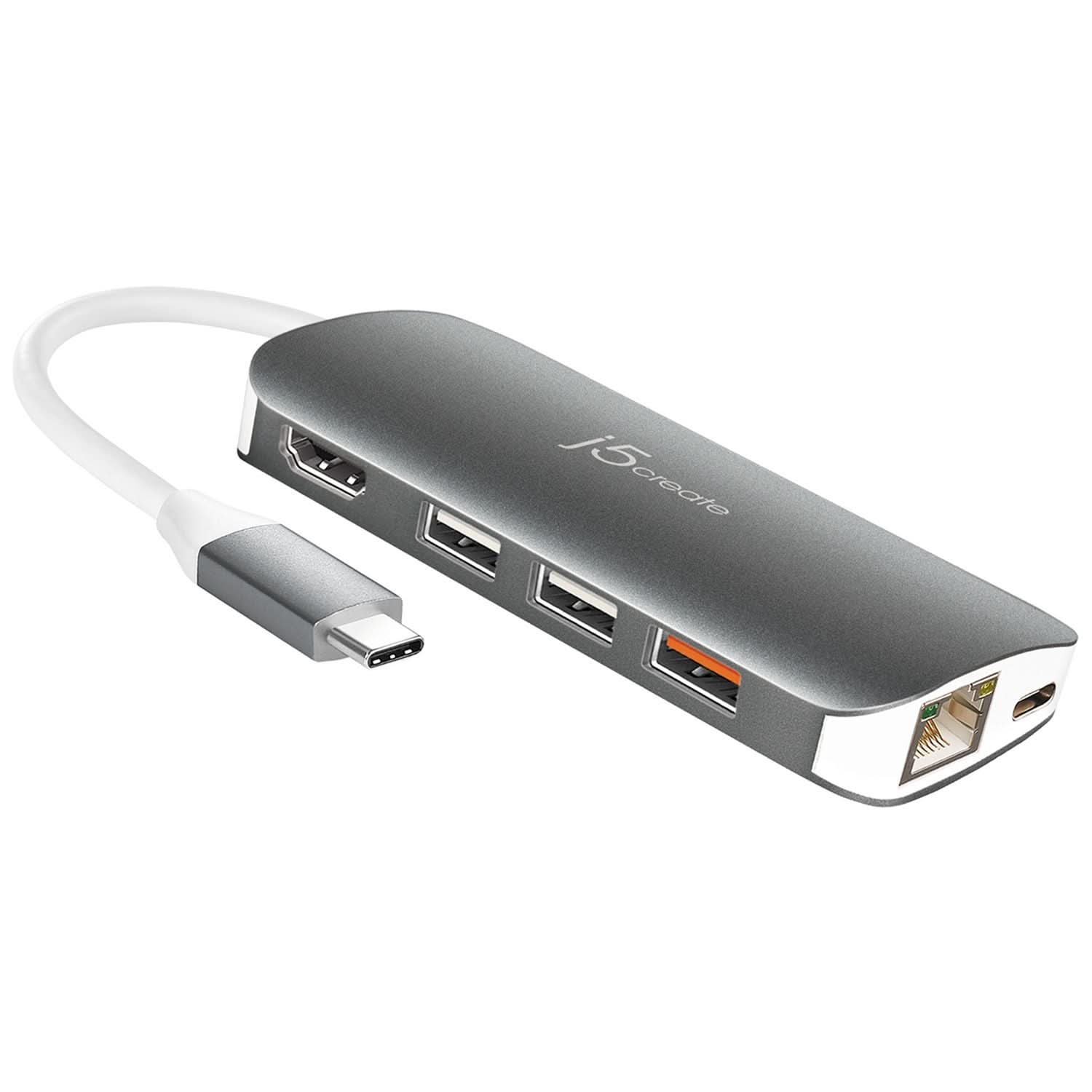

This pocket-sized multi-adapter provides all the ports you need for maximum productivity. It has 9 functions in 1 sleek adapter. It allows you to connect your laptop to a 4K monitor. It also connects to an ultrawide monitor. The USB-C„ multi-adapter gives you 2 USB„ Type-A ports for additional peripherals and 1 USB„ Type-A port with BC 1.2 to fast-charge your mobile device.
With USB-C® Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C® power adapter. It also provides direct access to a wired network and to your SD„ & microSD„ memory cards.
The JCD383 is perfect for small workspaces, home offices and for on-the-go!
Features
8 ports with 9 functions
USB-C„ power delivery 3.0 provides charging power to the connected devices as well as data transfer
Easily add a 4K HDMI„ video output
Reliable network connectivity via the Gigabit Ethernet port
2 - USB„ Type-A with BC 1.2 to fast-charge your mobile devices
USB„ 3.1 Gen 1 provides up to 5 Gbps transfer speed, which is 10x faster than USB„ 2.0

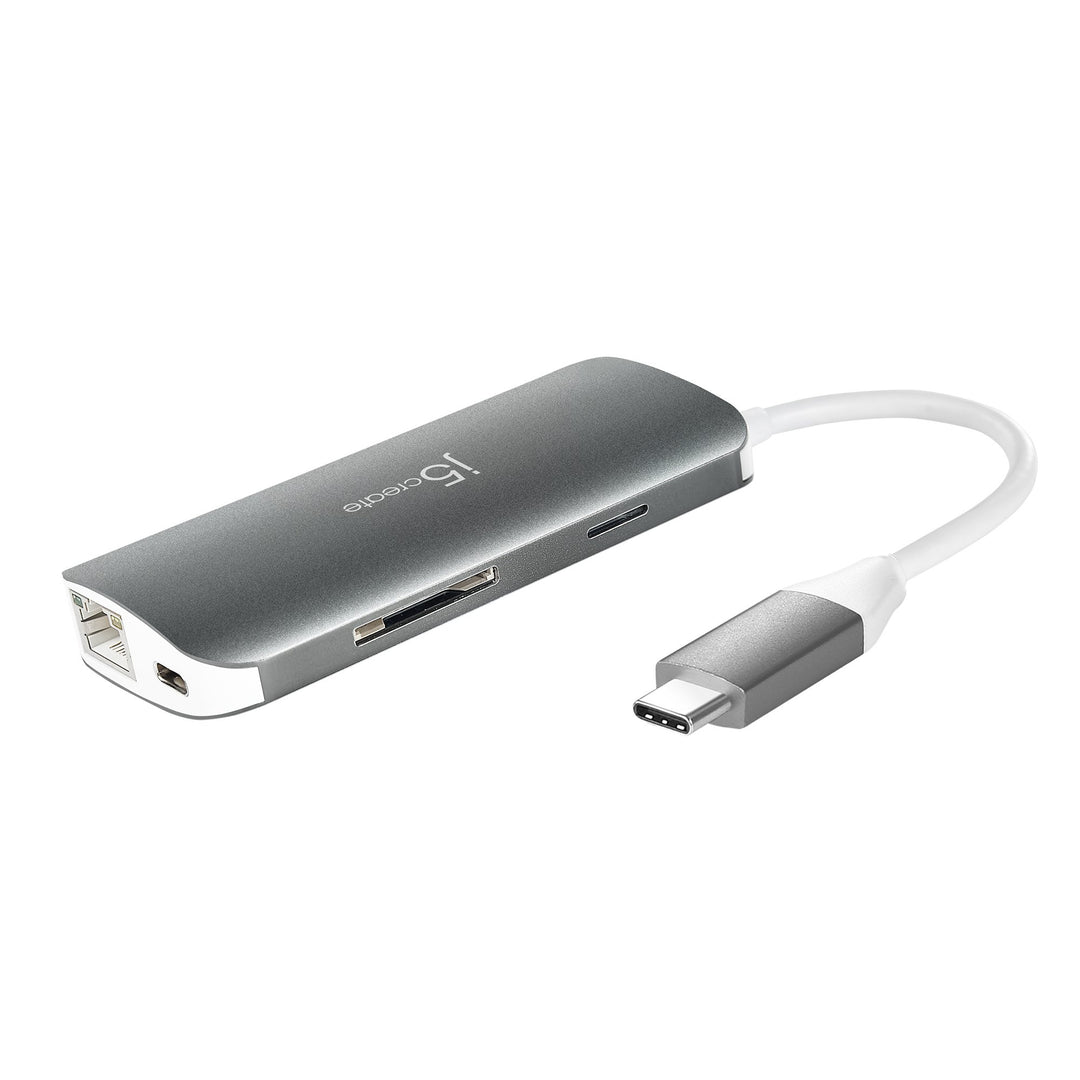

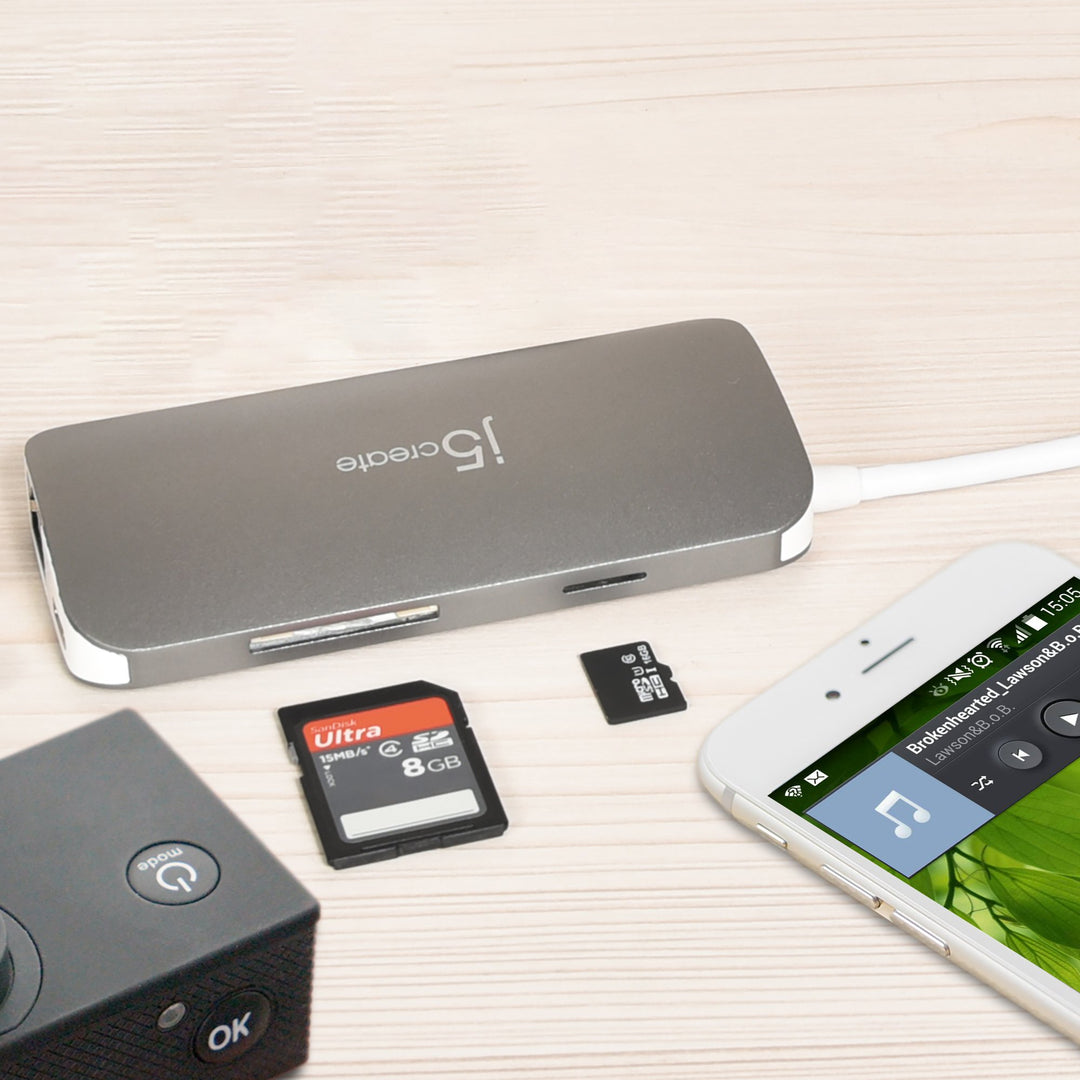

Direct access to SD„ & microSD„ memory cards for data storage and transfer
System Requirements:
€ Available USB-C„ port that supports DisplayPort„ Alt Mode and USB„ Power Delivery 2.0 or 3.0. Please refer to the manufacturer of your hardware for more information on your device
Special Notes:
The adapter can connect to a USB-C„ port that doesn€™t support Power Delivery but it will not pass power through the connected device
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
If you are using a high-powered USB„ device, attach the USB-C„ power adapter to the power delivery port to ensure maximum performance. When using your USB-C„ power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop
To ensure files copy completely, do not remove the USB-C„ power adapter while copying files. For maximum performance, use a computer and USB-C„ power adapter equipped with PD 3.0
The device may become warm to moderately hot while transferring bulk data or while a USB-C„ power supply is plugged in
Hardware
Warranty
2-Year Limited
Host Connector
1 - USB-C„ Male
Video Output
1 - HDMI„ Female
Power Source
Bus-powered or self-powered
Network Interface
RJ45 (Gigabit Ethernet)
Audio Supported
Yes
Ports

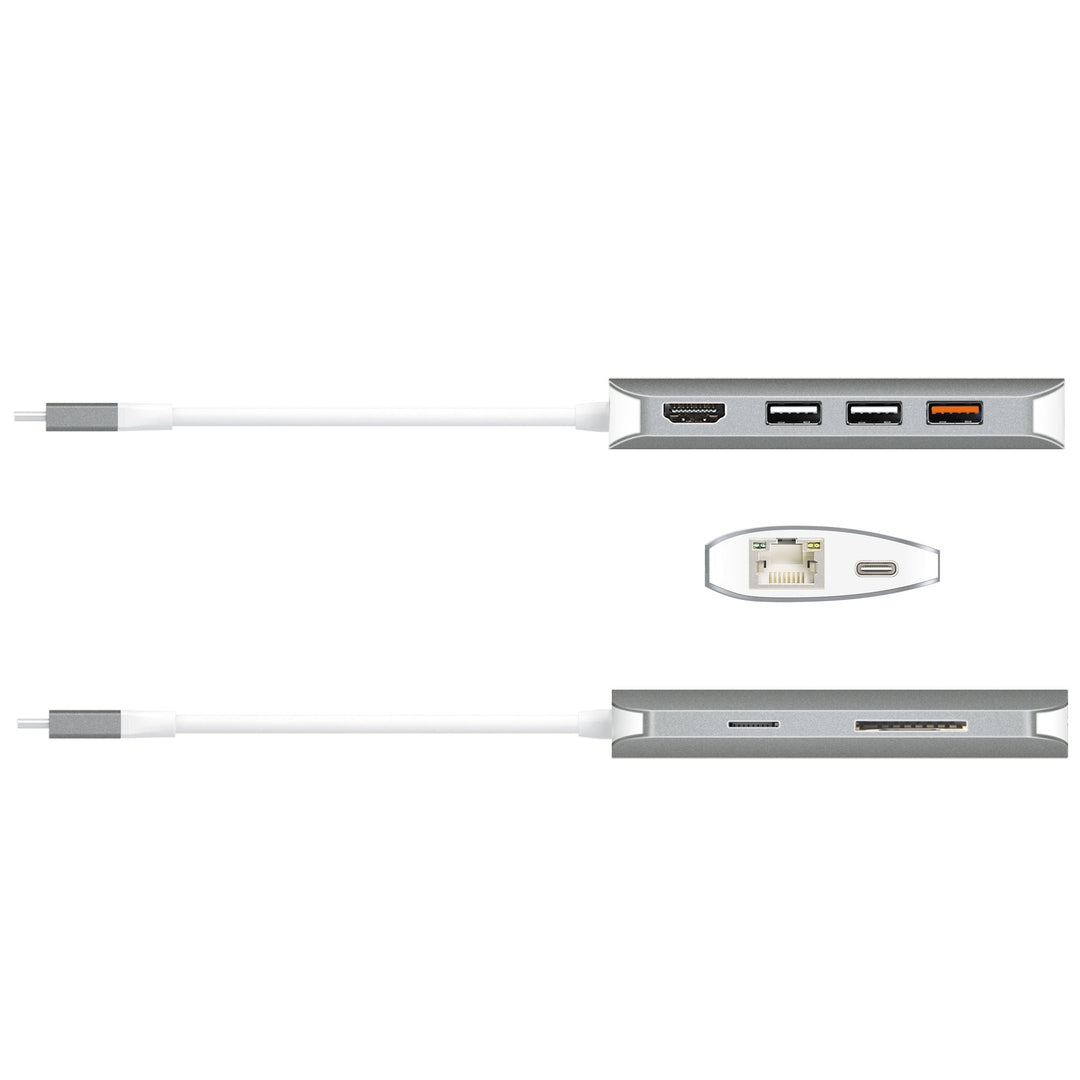

1 - USB-C„ 3.0 (upstream & downstream charging, power delivery 3.0 and data transfer) 2 - USB„ Type-A 3.1 Gen 1 1 - USB„ Type-A 3.1 Gen 1 with BC 1.2 1 - SD„ & microSD„ 1 - 4K HDMI„ 1 - RJ45 Gigabit Ethernet
