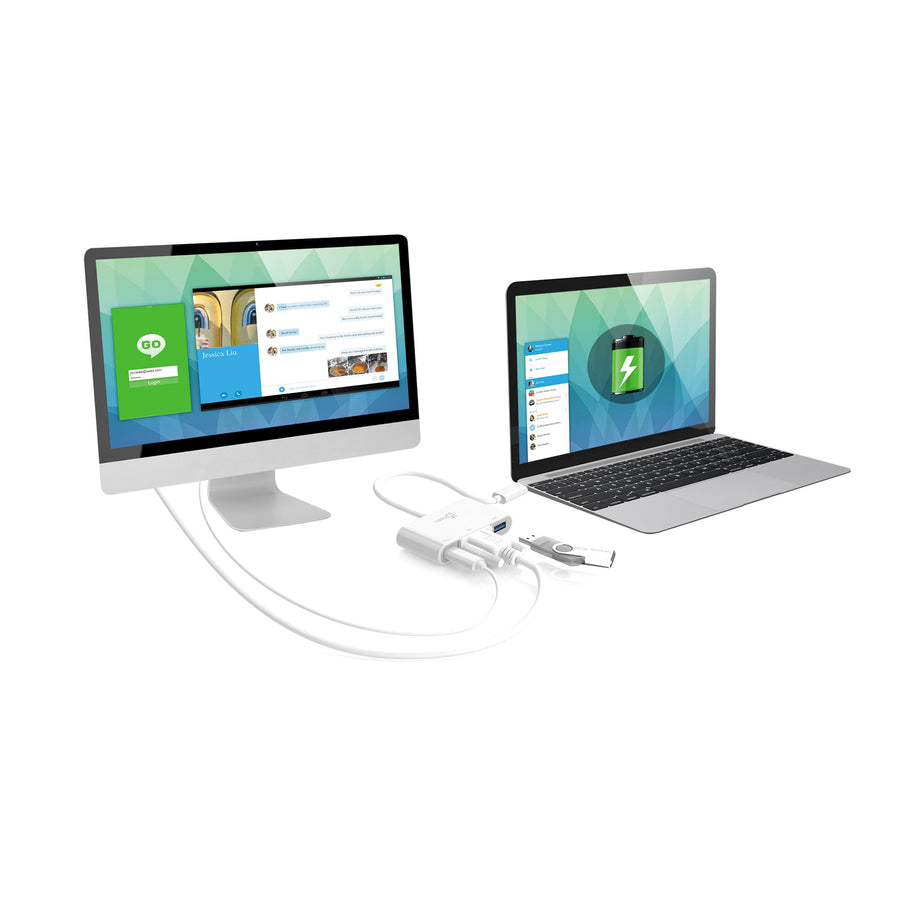

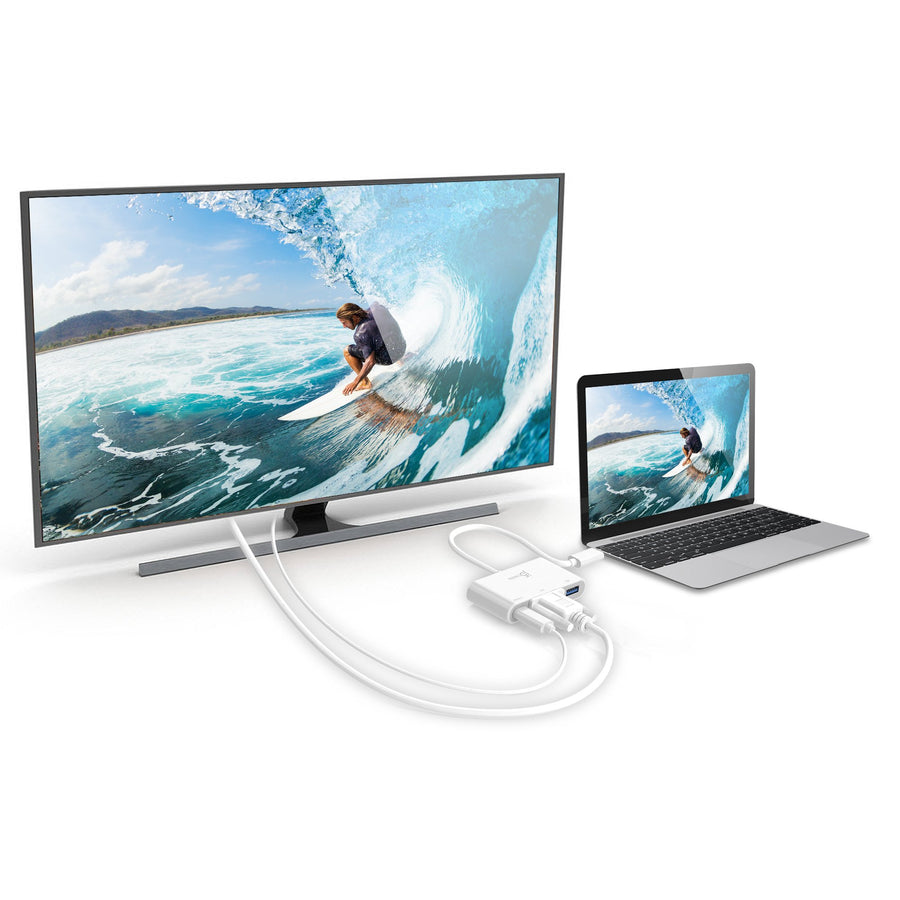

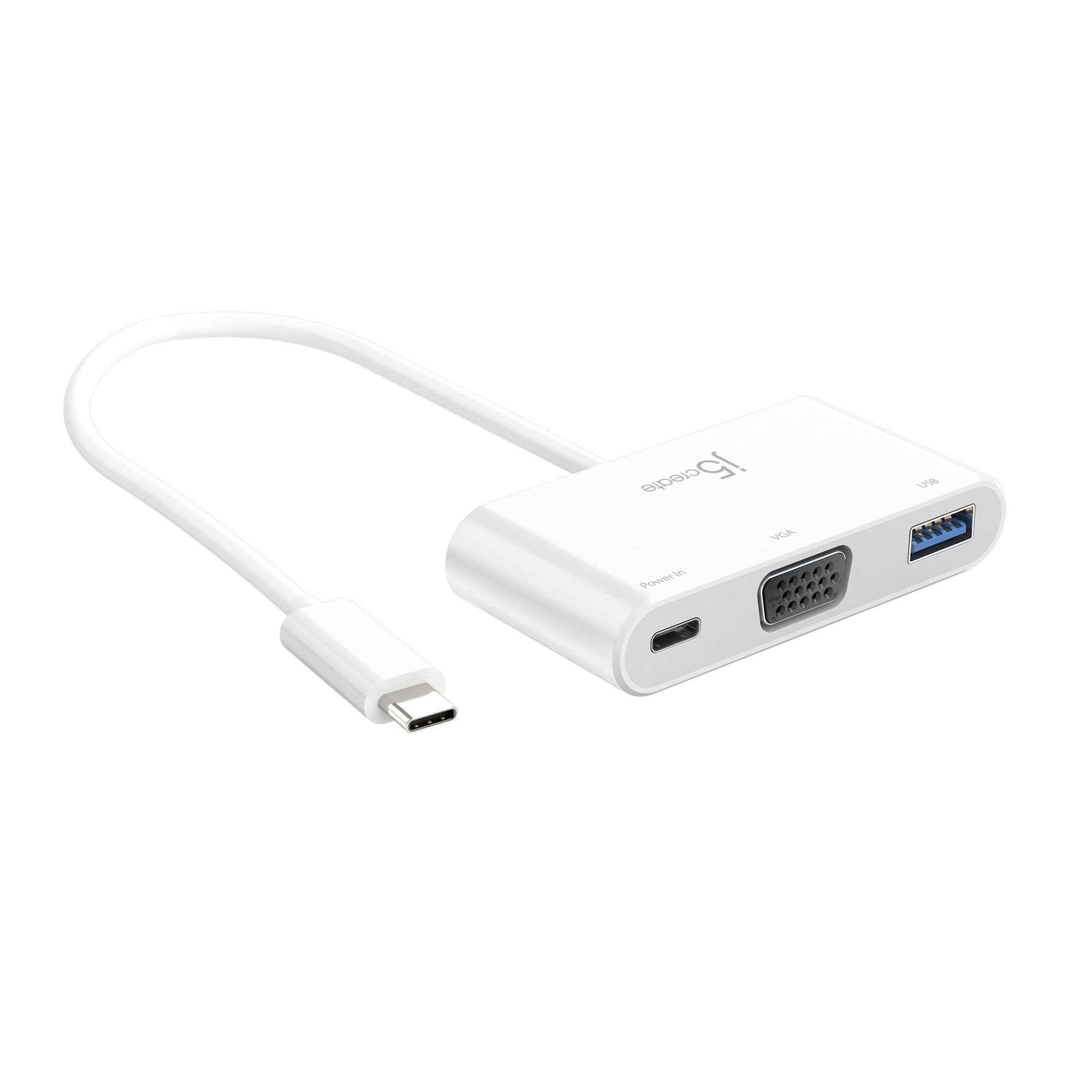

The JCA378 USB-C„ to VGA & USB„ 3.0 Power Delivery provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add an additional USB„ 3.0 port, VGA Monitor and USB Type-C„.
For ultimate functionality, use the JCA378 USB-C„ to VGA & USB„ 3.0 Power Delivery Adapter with j5create's JUP4275for laptops/tablets, and/or use theJUP1230for mobile devices.
USB Type€C„ is the new standard for connecting desktops and laptops and will eventually replace all current USB„ cables and connectors. This new USB„ standard can be found on laptops, phones, tablets, etc. The USB Type€C„ has a slim and reversible design, so there is no wrong way to plug it in. USB Type€C„ offers greater power delivery and faster data transfer rates up to 10 Gbps.
Features
2 USB„ 3.0 SuperSpeed ports
Transfer rates up to 5 Gbps enables bulky file backup
Backwards compatible with USB„ 2.0 and USB„ 1.0 devices
Hot-swapping connection/disconnection without powering down
DisplayPort„ Alt Mode for VGA
Supports display max resolution: 1920 x 1200 @ 60 Hz
Supports 1080p Video Playback
Supports Display Modes: Primary, Extended, Mirror
Display Rotation: 0°, 90°, 180°, 270°
SYSTEM REQUIREMENTS
Your host USB-C„port (USB„3.0 is recommended) must support USB„ Power Delivery andDisplayPort„alt mode to ensure full functionality.
Your mobile device might require more power than your charger can allow to use the adapter and charge your device simultaneously. To ensure the JCA378 powers and charges your mobile device while in use, ahigher wattage power adaptermay be required.
DisplayPort„v1.2 required on graphics card or video source to support 1920 X 1200 @ 60 Hz resolution.
macOS®X 10.8 or later

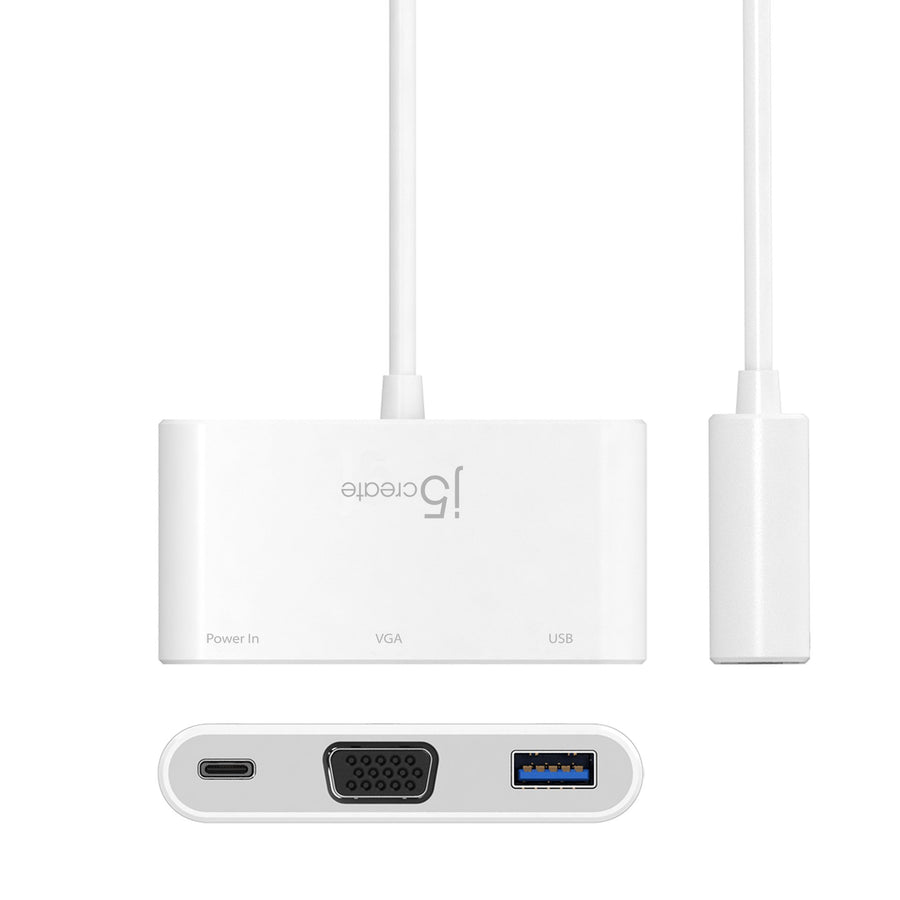

Interface
Host Interface
USB Type-C„Male
Video Interface
VGA Female connector
USB„Port
USB„3.0 Female connector
Power
Power Mode
Bus-Powered or Self-Powered
Function
Display
Display resolution: 1920 x 1200 @ 60 Hz
Physical Specifications
Housing Material
Plastic
Dimensions
Main Body:75.4(H) x 37.8(W) x 15.2(D) mm Cable Length:9.8 in./25 cm
Weight
Approximately 43g
Special Notes:
If you are using a high-powered USB„device please attach an USB-C„power adapter to the JCA378 power delivery port for maximum performance.
To ensure files copy completely, do not remove the USB-C„power adapter while copying files.
For more information about Power Delivery & graphic cards for your device, refer to the manufacturer of your hardware.
Package Contents
JCA378 USB Type-C„to VGA & USB„3.0 with Power Delivery
