USB 3.0 SuperSpeed € USB 3.0 SuperSpeed port € Transfer rates of up to 5 Gbps, enable bulky file backup € Backwards compatible with USB 2.0 and USB 1.1 devices € Hot-swapping connect / disconnect without powering down € Plug-and-play € Compatible with Windows and Mac OS
USB 3.0 Display € Supports display resolution: 2048x1152 @ 32 bit € Supports 1080p Video Playback € Supports Display Modes: Primary, Extended, Mirror € Display Rotation: 0°, 90°, 180°, 270° (Please note: Rotation Mode functions on Windows only)
USB 3.0 Gigabit Ethernet € Quickly add a Gigabit Ethernet port through USB 3.0 € USB 3.0 plug-and-play and backwards compatible with USB 2.0/1.1 € Transfer all your files almost instantly over a true Gigabit network. € IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible € USB bus-powered € Activity and Link LED indicators

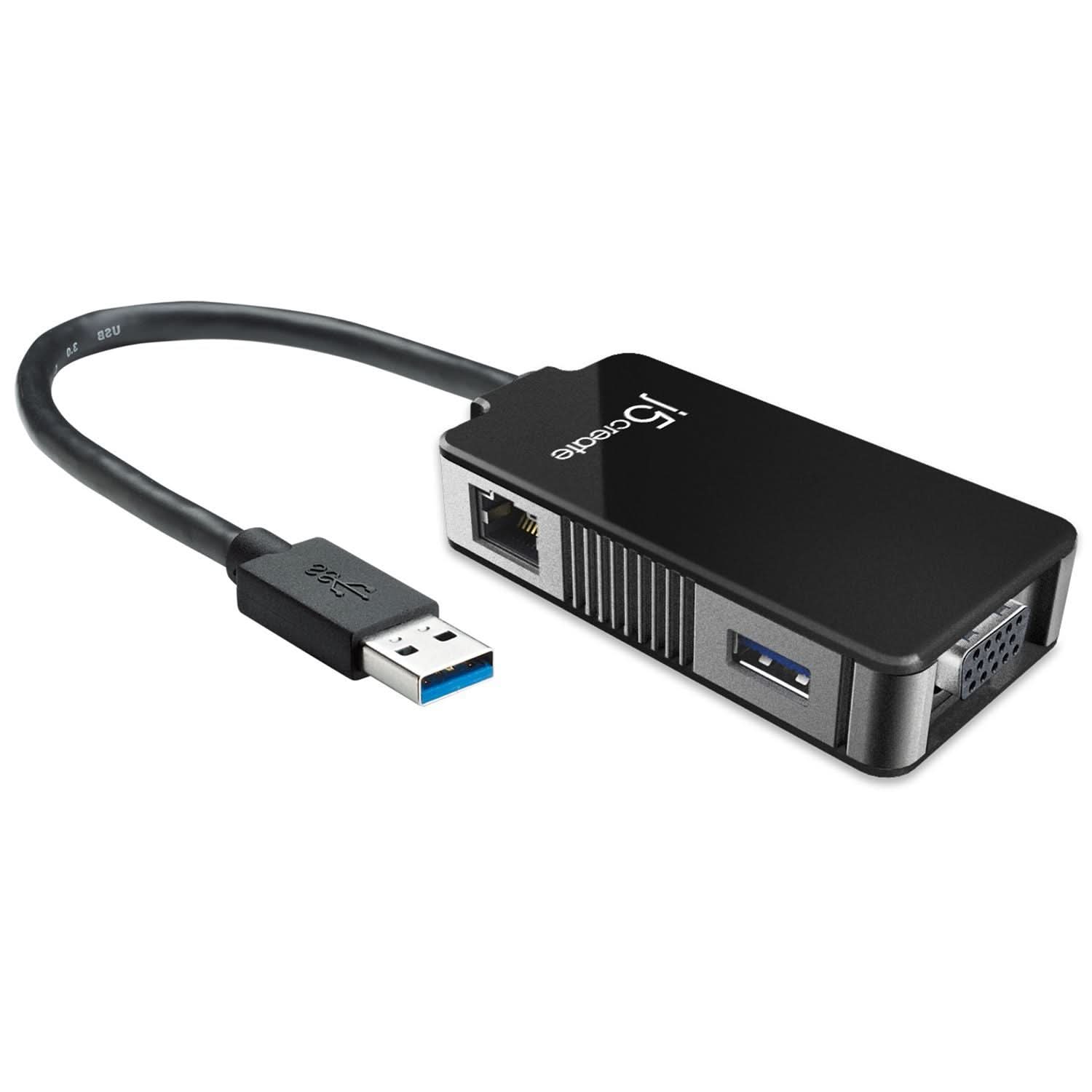

The JUA370 USB 3.0 Multi-Adapter VGA provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add an additional USB computer peripheral, VGA Monitor or Gigabit LAN through your USB port.
With this Multi-Adapter, there's no need to open your computer to add an expensive graphics card. You can simply load the drivers, plug the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready.
Specifications
Interface
Host Interface
USB 3.0 Male Type-A connector
Video Interface
VGA-DB 15 pin Female connector
Ethernet Port
RJ-45 Female connector (Gigabit Ethernet)
USB Port
USB 3.0 Female connector
Power
Power Mode
Bus-powered
Functions
Display
Video Playback:1080p Display resolution: 2048 x 1152 @ 32 bit Display Modes:Primary, Extended, Mirror Display Rotation:0°, 90°, 180°, 270°
Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet, or Microsoft wake-up frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Supports Jumbo Frame
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications
Dimensions
Main body: 43.75 (W) x 90.6 (H) x 18.6 (D) mm Cable length:14.5 cm
Weight
Approximately 58.5 g (including cable)
System Requirements
Microsoft® Windows® 10 or later macOS® 10.9 or later
Available USB„ 3.0 port
Note: Due to constant advancements in technology we, at j5create, make it a priority to give you the latest drivers available for our products. To ensure that your device is equipped with the most current driver, please visit ourdriver pageand install the latest driver for this model.
Package Contents
JUA370 USB 3.0 Multi-Adapter VGA & Gigabit Ethernet
