J5CREATE USB-C 6K PREMIUM HUB

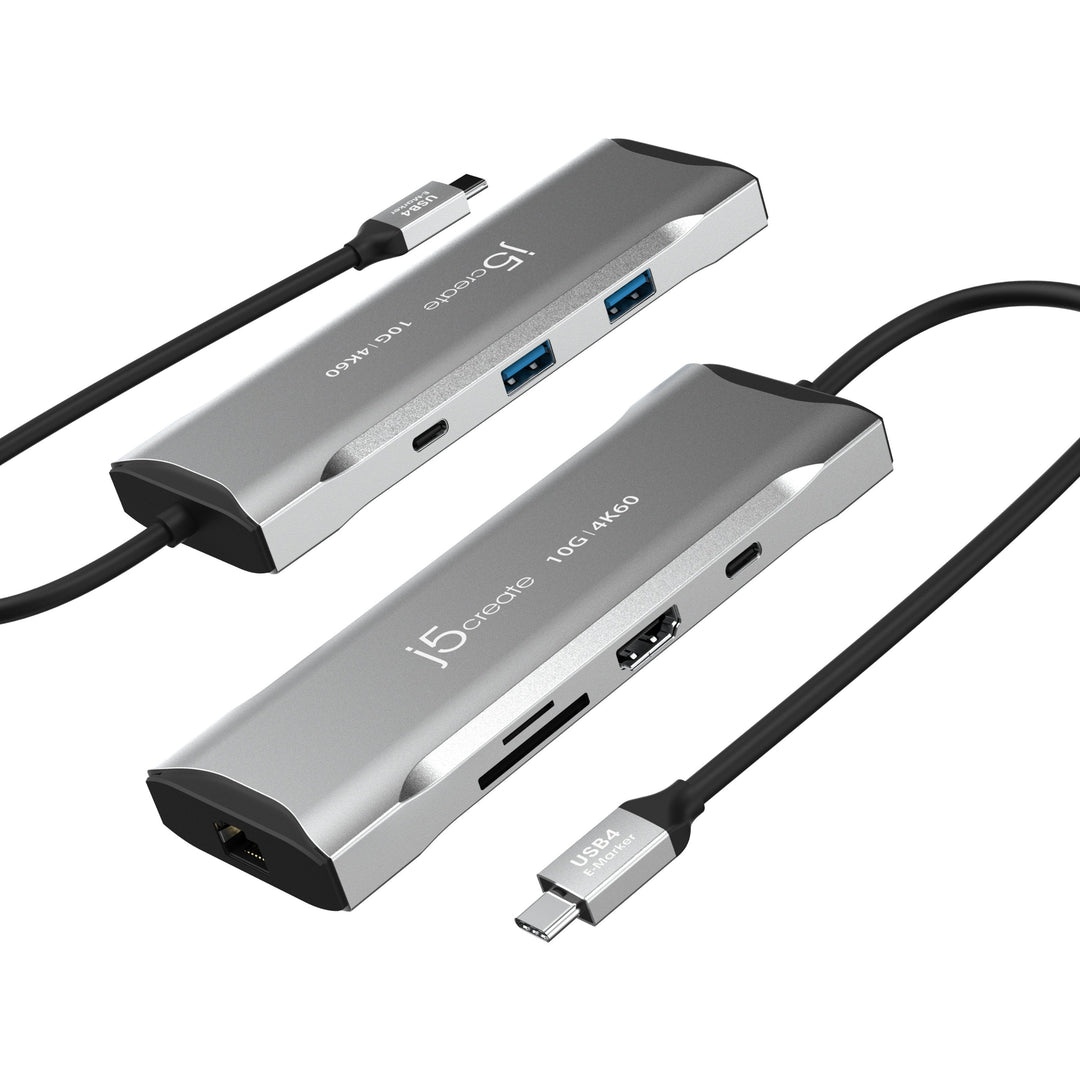

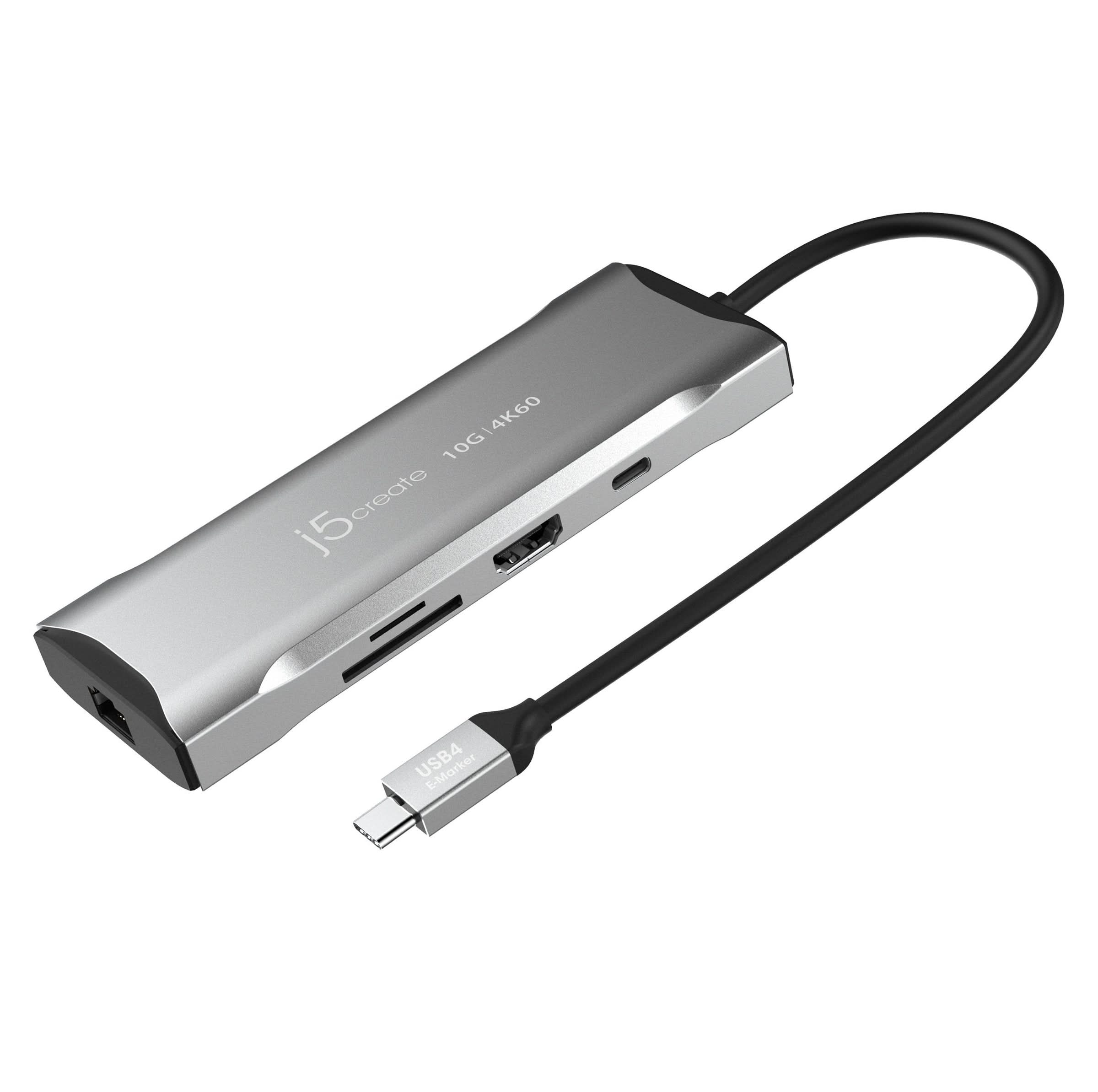

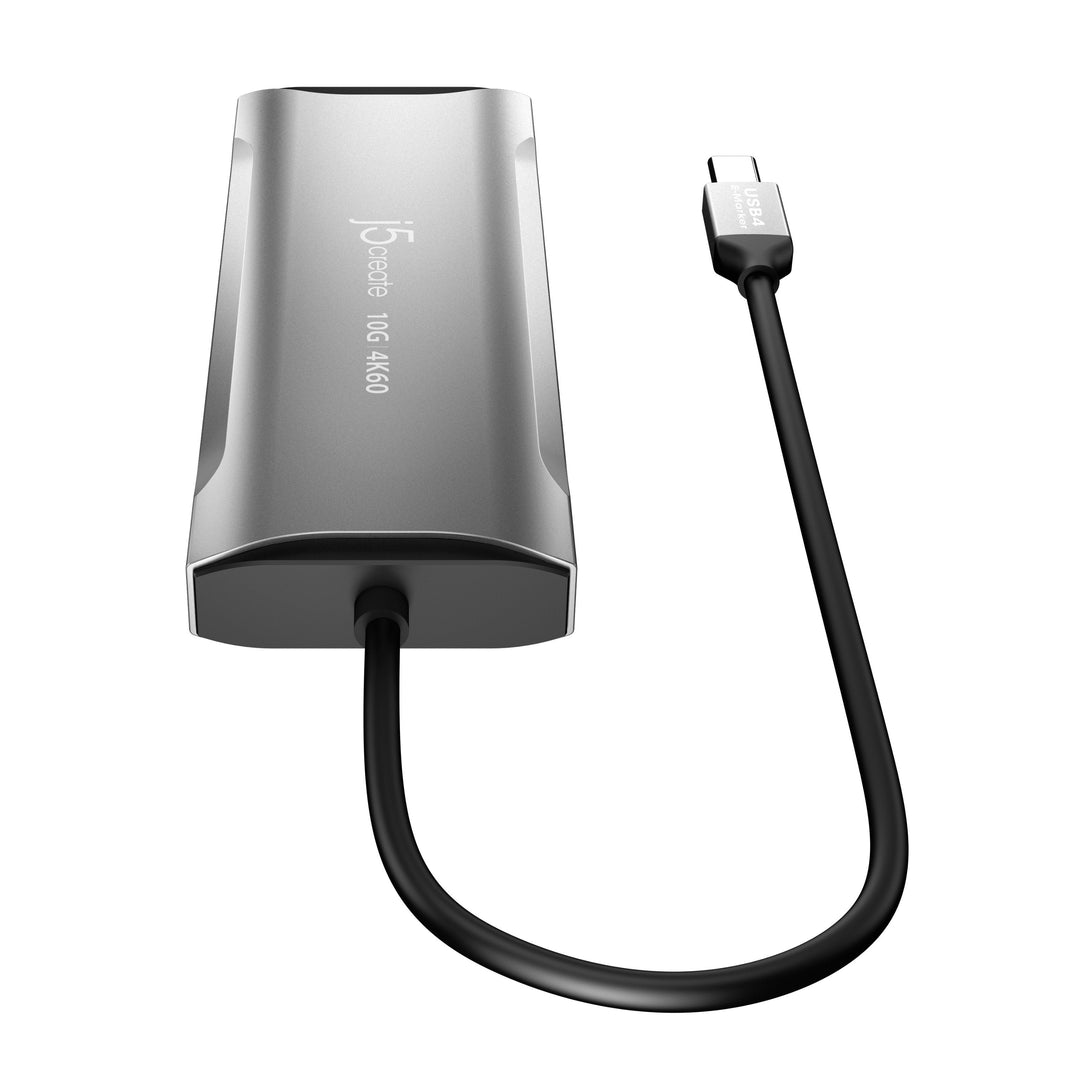

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4„, Thunderbolt„ 3, and Thunderbolt„ 4 hosts and devices.

This USB-C® 10Gbps mini dock with DisplayPort„ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB„ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB„ Type-A) for peripheral connectivity or downstream charging, an SD„ & microSD„ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.

The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Features

• Built-in advanced USB-C® E-Mark integrates USB4„, Thunderbolt„ 3 and Thunderbolt„ 4 compatibility
• Backward compatible with USB„ 3.2/3.1
• Features a 4K HDMI„ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
• Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
• Extending one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI„ port to enjoy your gaming under Windows® OS
• Three SuperSpeed USB„ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
• Charge and power connected laptop and peripherals with 100W Power Delivery
• SD„ & microSD„ 4.0 memory card reader/writer for media storage and transfer

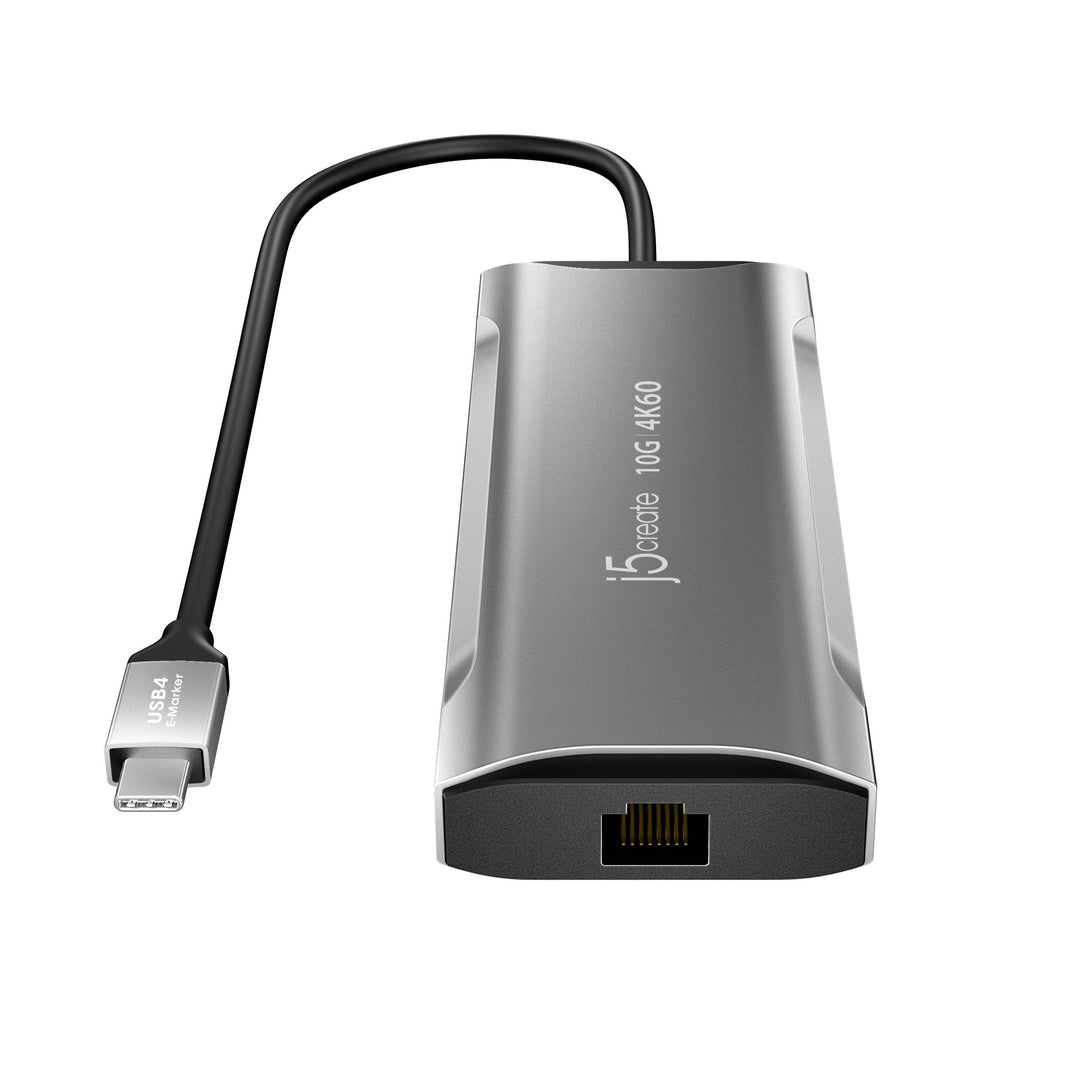

• Easily add a wired network connectivity with the Gigabit Ethernet port
• Plug-and-play, no driver installation required

System Requirements

• Available USB-C® port that supports DisplayPort„ alternate mode and USB„ Power Delivery 2.0 or 3.0
  Please refer to the manufacturer of your computer for more information about your device
• The host device must support DisplayPort„ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort„ 1.4 devices are listed as follows, but not limited to:
  • Macbook Air® 13" 2019 or later
  • Macbook Pro® 15" 2017 or later
  • Macbook Pro® 16"
  • iPad Pro® 11"/12" 2018 or later
  • Surface„ Pro 7
  • Surface„ Laptop 3

Special Notes

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB„ 2.0 host port, or if using a USB„ 2.0 host cable, performance may be limited
• If connected to a DisplayPort„ 1.2 device performance will be limited to 3840 x 2160 at 30 Hz
• The adapter can connect to a USB-C® port that doesn€™t support Power Delivery, but it will not pass power through the connected device
• If you are using high-powered USB„ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

Package Contents

• 1 - JCD393 4K60 Elite USB-C® 10Gbps Mini Dock
• 1 - Quick Installation Guide (QIG)
