Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4„ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB„ ports, as well as 100W Power Delivery pass-through charging.
This USB-C® mini dock supports DisplayPort„ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI„ and a DisplayPort„ output. It provides three USB„ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB„ Type-A) for peripheral connectivity or downstream charging, an SD„ & microSD„ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Three SuperSpeed USB„ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
Charge and power connected laptop and peripherals with 100W Power Delivery
SD„ & microSD„ 4.0 memory card reader/writer for media storage and transfer
Easily add a wired network connectivity with the Gigabit Ethernet port
Plug-and-play, no driver installation required
Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI„ or 1920 x 1080 @ 240 via DP„ Port to enjoy your gaming under Windows® OS.
Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI„ and 1 DisplayPort„) on compatible USB-C® laptops with DisplayPort„ 1.4 alt mode with MST support*
System Requirements
Available USB-C® port that supports DisplayPort„ alternate mode and USB„ Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your computer for more information about your device
The host device must support DisplayPort„ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort„ 1.4 devices are listed as follows:
A host laptop without MST support can only connect to one additional monitor
The MST protocol is not currently supported by macOS® or Chrome OS„. The display output is limited to mirrored mode when connected.
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
If connected to a USB„ 2.0 host port, or if using a USB„ 2.0 host cable, performance may be limited
If connected to a DisplayPort„ 1.2 device, performance will be limited to 3840 x 2160 @ 30 Hz (Windows®)
The mini dock can connect to a USB-C® port that doesn€™t support Power Delivery, but it will not pass power through the connected device
If you are using high-powered USB„ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
Package Contents

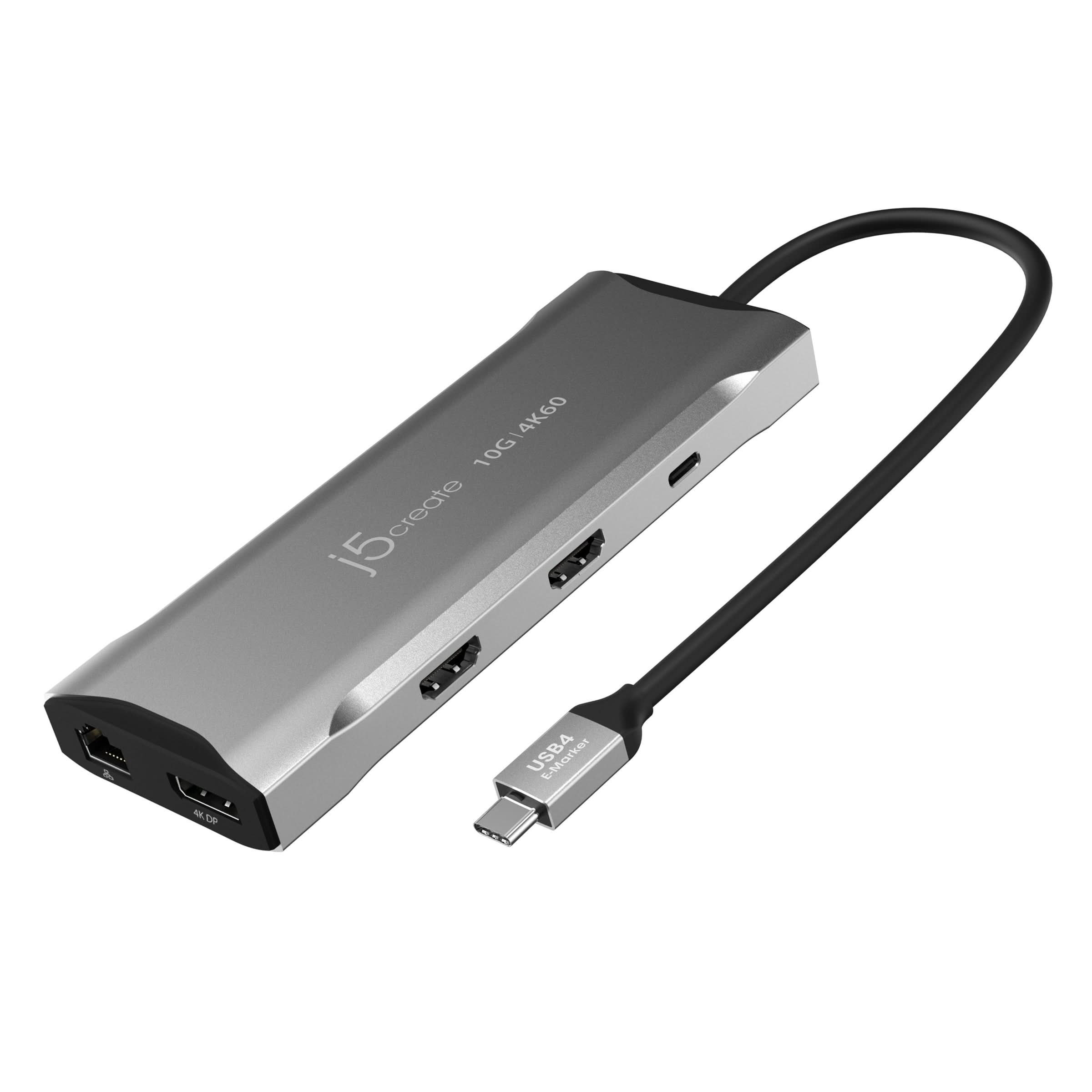

1 - JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock
