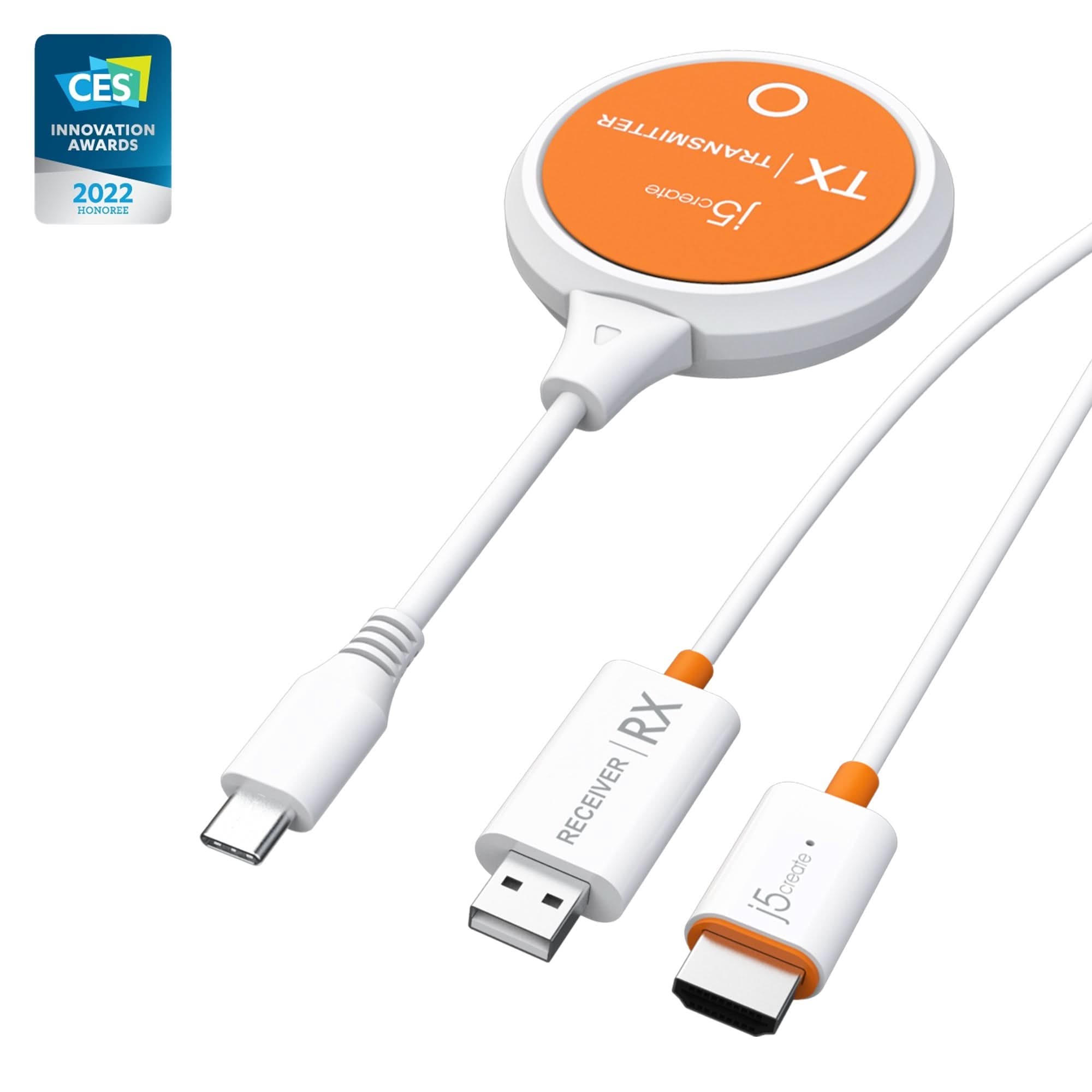

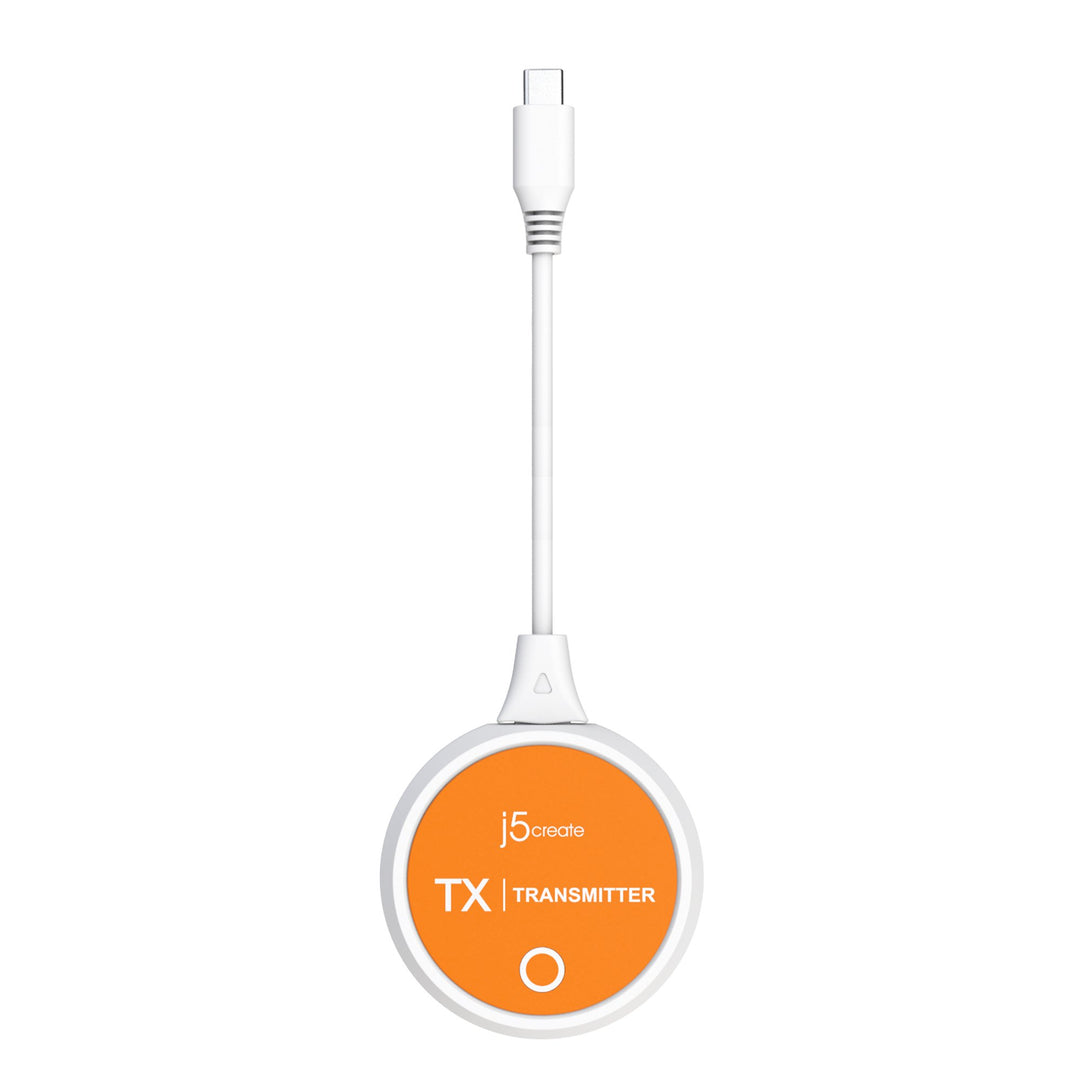

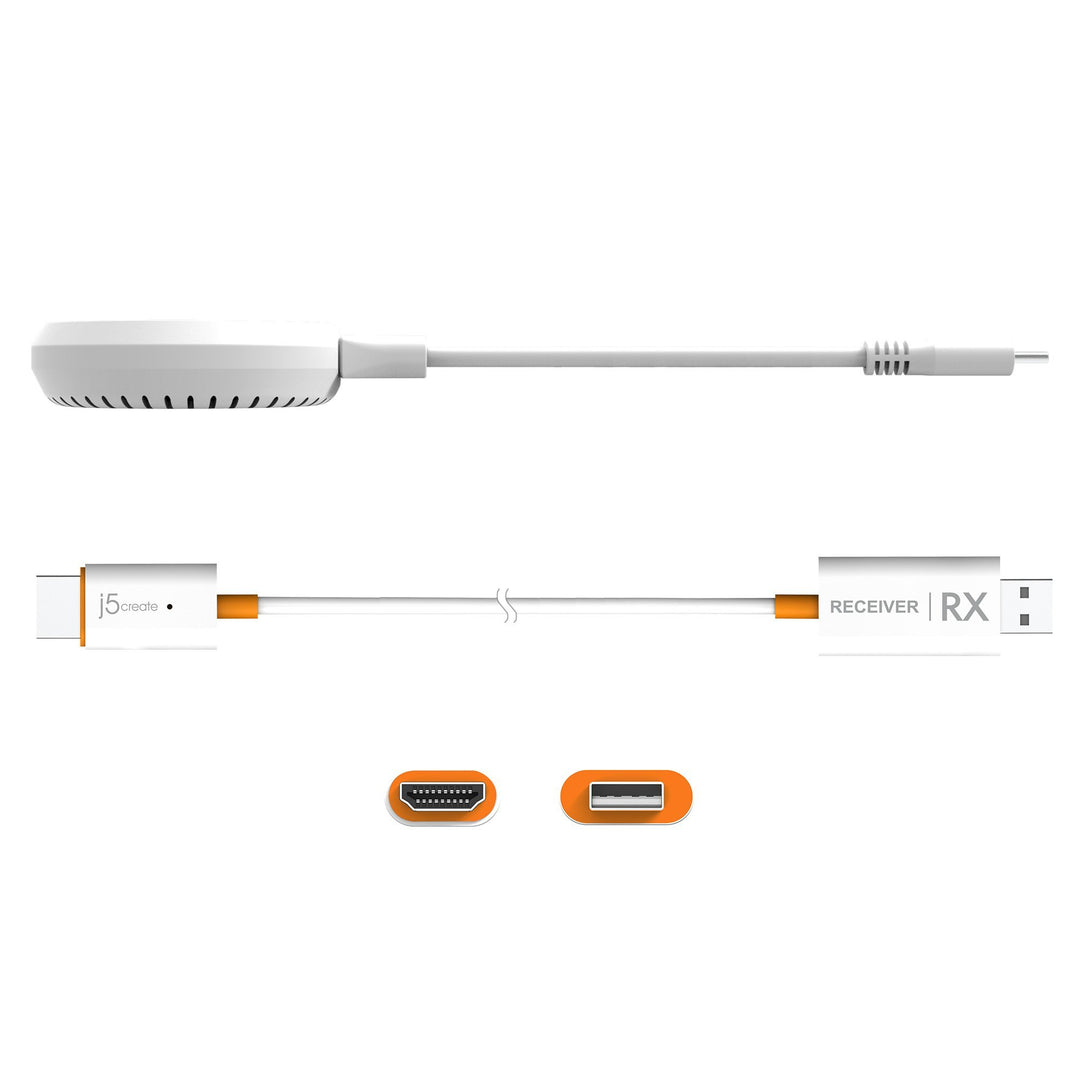

Eliminate the need and expense for cables by wirelessly sending what€™s on your laptop, tablet, or mobile phone to your HDTV with this HDMI„ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI„ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI„ receiver to your TV.
Features
€ Wirelessly cast full HD content from your mobile device to a larger TV or display € With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon Prime Video„, Hulu„, DISNEY+„, and more € Supports 1080p HD video € Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection and smooth streaming experience € Includes an USB„ Type-A extension cable for added convenience € Compact design is ideal for home, office, school, or on-the-go € Supports multiple wireless standards including Miracast„, AirPlay®, and Google„ Chromecast„
System Requirements
Available USB-C® port that supports DisplayPort„ Alt Mode
Hardware
Warranty
1 Year Limited
Host Connector
USB-C® with DisplayPort„ Alt-mode
Power Source
USB„ Type-A male
LED Indicator
N/A
Ports
N/A
IR
N/A
Performance
HDMI„ Compliance
HDMI„ v1.3
HDCP Compliance
HDCP 1.4
Audio Channel
2.1 via HDMI„
Display Output Supported Resolutions
1920 × 1080 1280 × 720
RF Output Power
N/A
Security (Encryption)
WPA2
IR Return Frequency
N/A
ESD Protection
N/A
OVP Protection
N/A
Wireless Protocols
Standard
IEEE 802.11ac
Frequency
2.4 GHz, 5 GHz
Range
Up to 10 - 15 meters
Channel Width
20 MHz, 40 MHz
Antenna Type
Internal antenna
Physical Specifications
Color
White
Enclosure Type
Plastic
Cable Length
USB-C® Transmitter (TX): 3.34 in. (85 mm) HDMI„ Receiver (RX): 23.6 in. (600 mm)
Product Height
USB-C® Transmitter (TX): 2.56 in. (65 mm) HDMI„ Receiver (RX): 2.2 in. (57 mm)
Product Width
USB-C® Transmitter (TX): 2.56 in. (65 mm) HDMI„ Receiver (RX): 0.95 in. (24 mm)
Product Depth
USB-C® Transmitter (TX): 0.66 in. (17 mm) HDMI„ Receiver (RX): 0.41 in. (10.5 mm)
Product Weight
USB-C® Transmitter (TX): 1.9 oz (54g) HDMI„ Receiver (RX): 1.11 oz (31.5g)
Operating Temperature
+14 to +104 °F (-10 to +40 °C)
Operating Humidity
< 85% non-condensing
Storage Temperature
-4 to +122°F (-20 to +50°C)
Storage Humidity
< 85% non-condensing
Package Contents
1 - JVAW62 ScreenCast USB-C® Wireless Display HDMI„ Extender (1 x Transmitter & 1 x Receiver)
