Wirelessly cast full HD content from your mobile device to a larger display

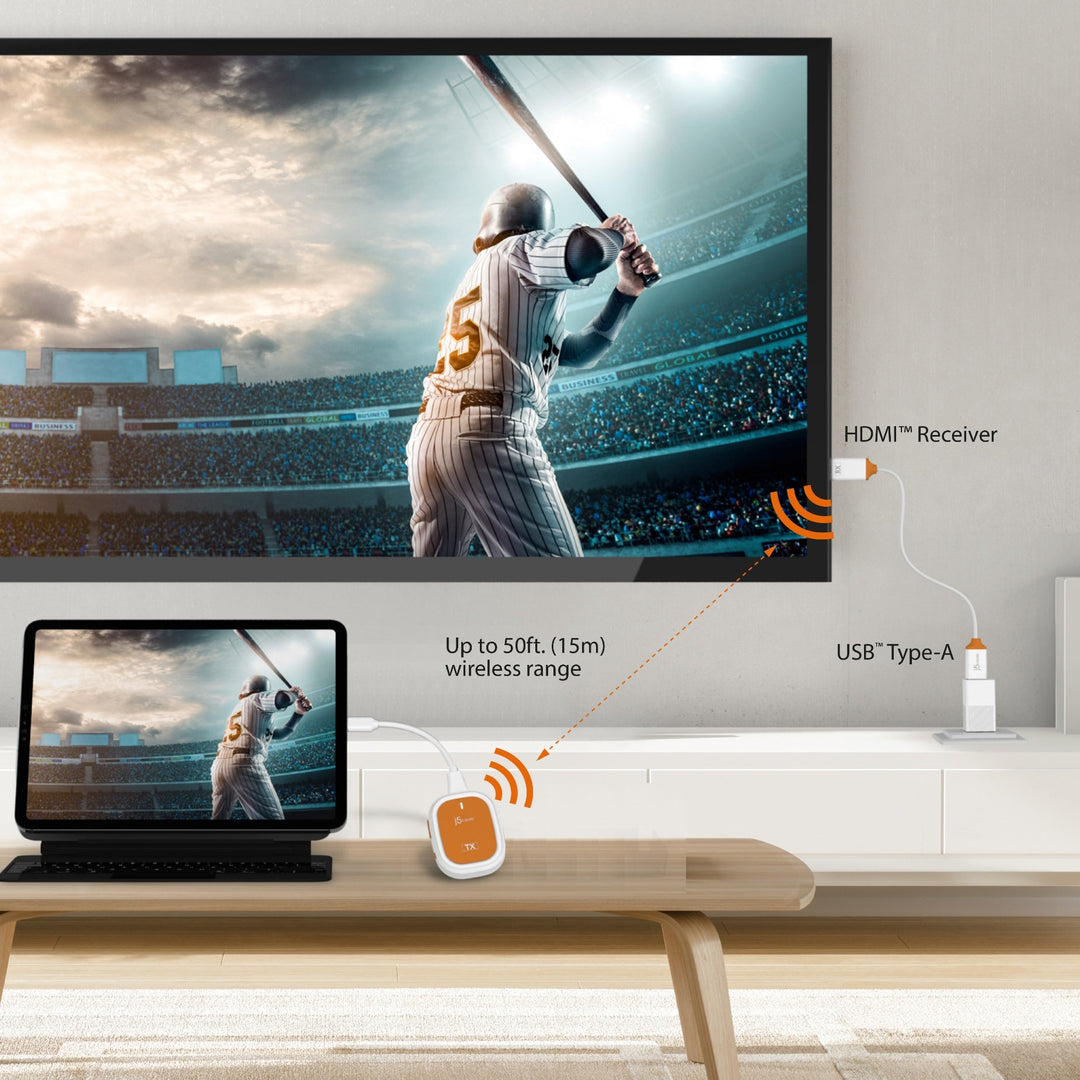

Built-in antenna supports a wireless range up to 49.2 ft (15m)
High-speed audio and video transmission with low latency (less than 0.13s/130 ms)
With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon® Prime Video„, Hulu„, DISNEY+„, and other streaming apps
Supports 1080p HD video
A stable connection and smooth streaming experience
Includes a USB„ Type-A extension cable for added convenience
Compact design is ideal for home, office, school, or on-the-go
Specifications
Category
Specification
Hardware
Host Connector
USB-C® Male Connector (Transmitter)
Infrared
N/A
LED Indicators
N/A
Ports
N/A
Power Source
USB„ Type-A Male (Receiver)
Warranty
1 Year Limited
Performance
Audio Channel
2.1 via HDMI„
ESD Protection
N/A
HDCP Compliance
HDCP 1.4
HDMI Compliance
HDMI„ v1.3
Infrared Return Frequency
N/A
OVP Protection
N/A
RF Output Power
N/A
Security - Encryption
WPA2
Supported Resolution - Output
1920 × 1080 @ 60Hz
1280 × 720 @ 60Hz
Physical Specifications
Cable Length
USB-C® Transmitter (TX): 3.9 in. (100 mm)
HDMI„ Receiver (RX): 23.6 in. (600 mm)
Color
White
Connector Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
+14 to +104°F (-10 to +40°C)
Product Depth
TX: 2.2 in. (56.11 mm), RX: 0.41 in. (37.1 mm)
Product Height
TX: 2.6 in (16 mm), RX: 0.37 in (9.45 mm)
Product Weight
TX: 1.64 oz (46.5 g), RX: 0.86 oz (24.5 g),
Extension Cable: 0.99 oz (28 g)
Product Width
TX: 2.72 in (69.2 mm), RX: 0.74 in. (18.89 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
-4 to +122°F (-20 to +50°C)
Wireless Protocols
Antenna Type
Internal antenna
Channel Width
20 MHz
Frequency
5.8 GHz
Range
Up to 10 - 15 meters
Standard
IEEE 802.11n
Package Contents

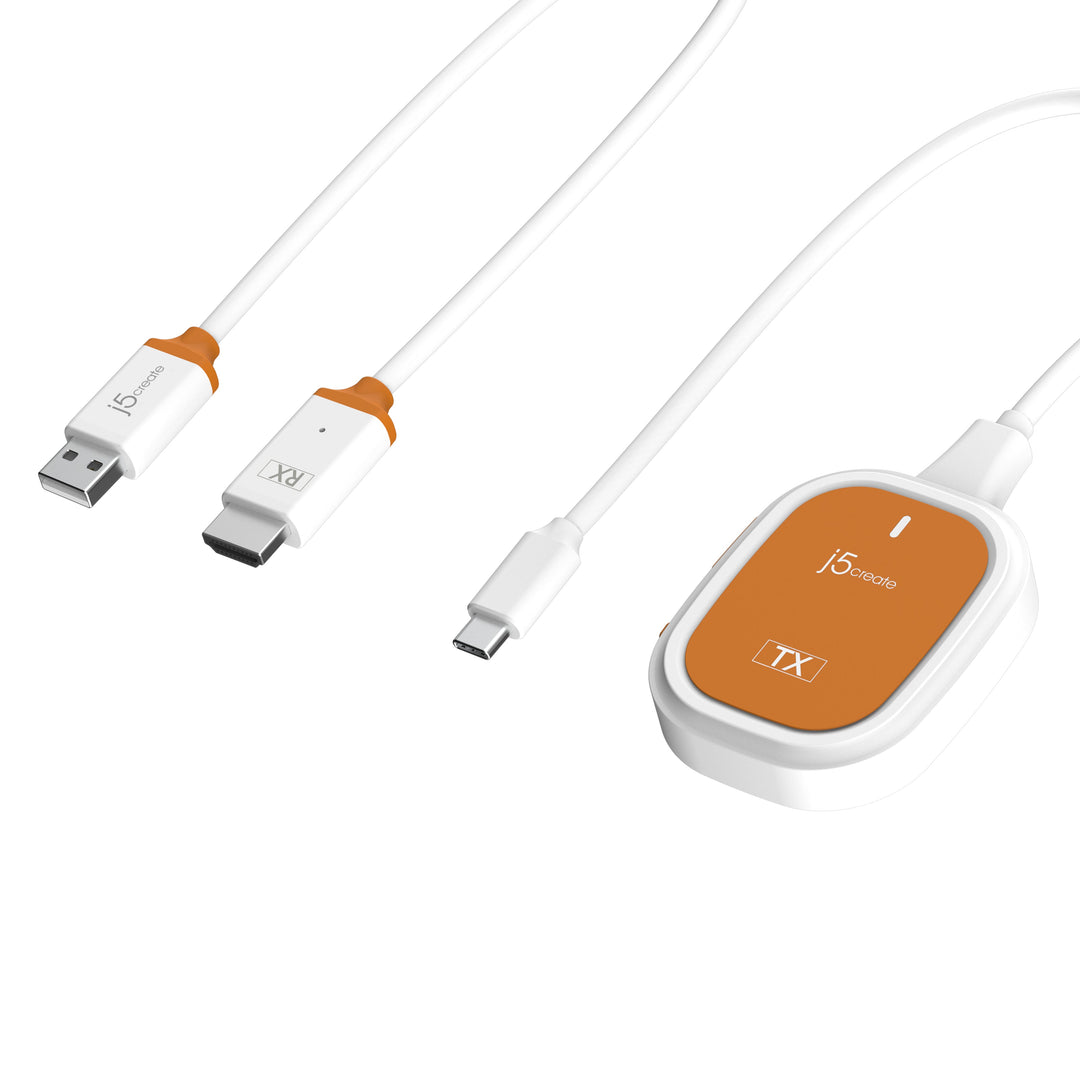

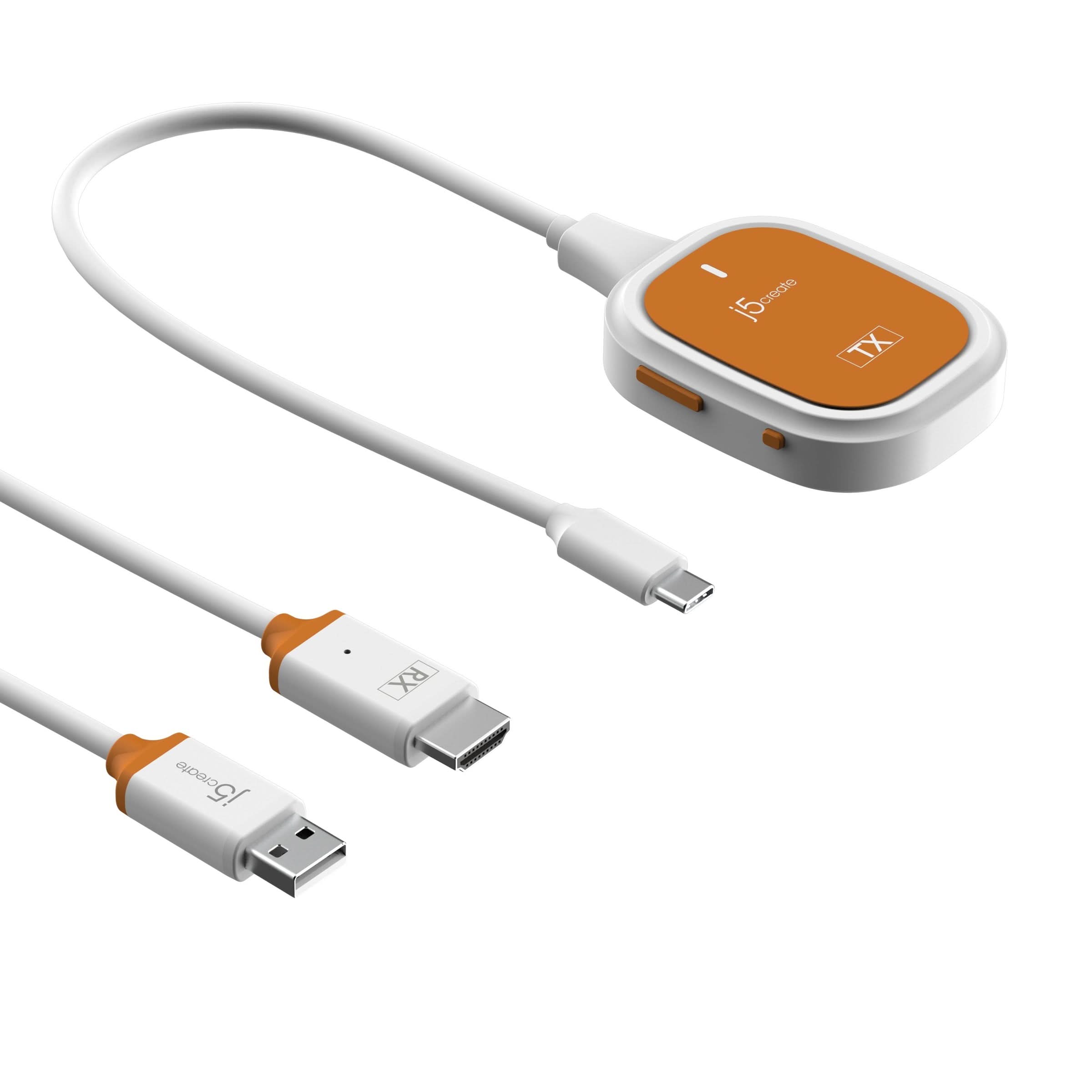

1 - JVAW61 ScreenCast FHD USB-C® Wireless Display Extender (1 x Transmitter & 1 x Receiver)
