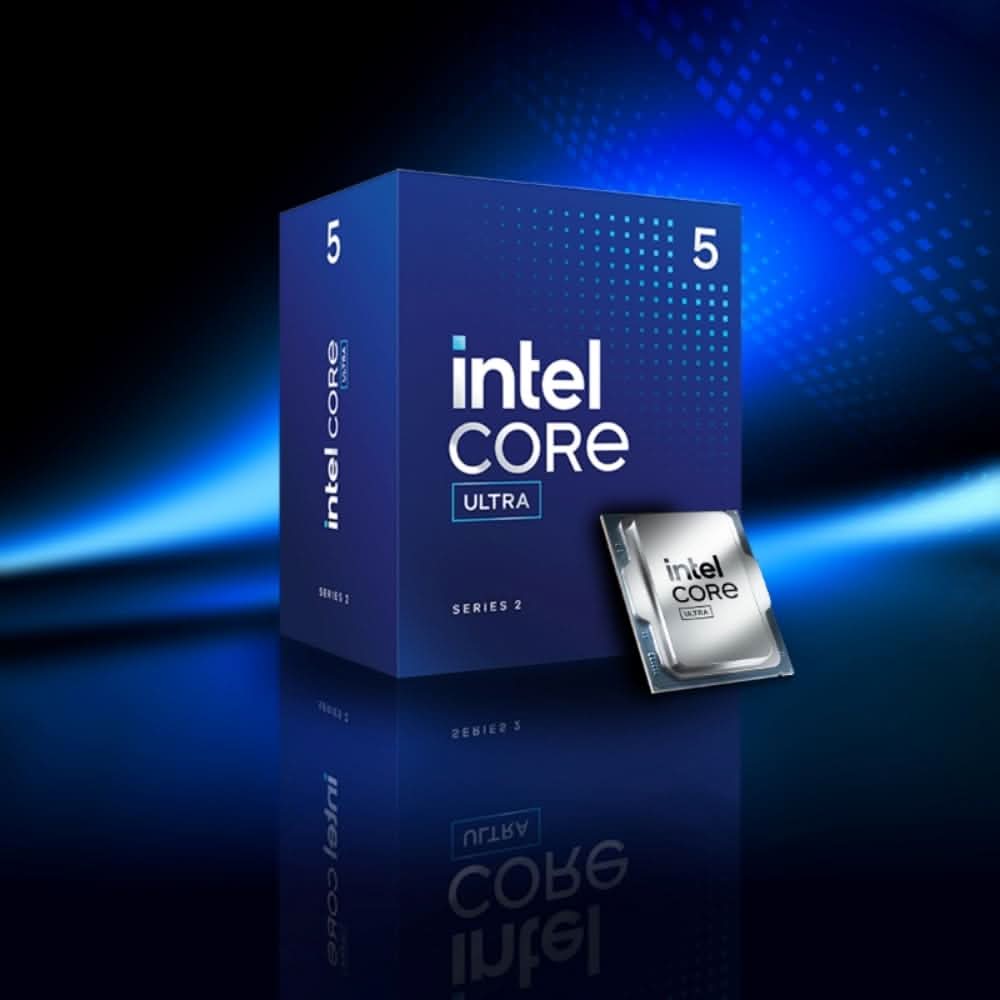

Intel Core Ultra 5 Desktop Processor 225F 10 cores Processor

Technical Details



Essentials



Product Collection
Intel Core™ Ultra Processors (Series 2)


Code Name
Products formerly Arrow Lake


CPU Specifications



Total Cores
10


# of Performance-cores
6


# of Efficient-cores
4


# of Low Power Efficient-cores
0


Total Threads
10


Max Turbo Frequency
4.9 GHz


Performance-core Max Turbo Frequency
4.9 GHz


Efficient-core Max Turbo Frequency
4.4 GHz


Performance-core Base Frequency
3.3 GHz


Efficient-core Base Frequency
2.7 GHz


Cache
20 MB Intel Smart Cache


Total L2 Cache
22 MB


Processor Base Power
65 W


Maximum Turbo Power
121 W


Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes


AI Software Frameworks Supported by CPU
OpenVINO™ |  WindowsML |  DirectML |  ONNX RT |  WebNN


CPU Lithography
TSMC N3B


Supplemental Information



Embedded Options Available
No


Use Conditions
PC/Client/Tablet


Datasheet
View now


Memory Specifications



Max Memory Size (dependent on memory type)
256 GB


Memory Types
Up to DDR5 6400 MT/s


Max # of Memory Channels
2


ECC Memory Supported

No


GPU Specifications



Graphics Output
n/a


Xe-cores
0


Intel Quick Sync Video
No


# of Displays Supported
0


NPU Specifications



NPU Name
Intel AI Boost


NPU Peak TOPS (Int8)
13


Sparsity Support
Yes


Windows Studio Effects Support
Yes


AI Software Frameworks Supported by NPU
OpenVINO™ |  WindowsML |  DirectML |  ONNX RT |  WebNN


Expansion Options



Direct Media Interface (DMI) Revision
4


Max # of DMI Lanes
8


Intel Thunderbolt 4
Yes


Scalability
1S Only


PCI Express Revision
5.0 and 4.0


PCI Express Configurations
Up to 1x16+2x4 |  2x8+2x4 |  1x8+4x4


Max # of PCI Express Lanes
24


Package Specifications



Sockets Supported
FCLGA1851


Thermal Solution Specification
PCG 2022C


Max Operating Temperature
105 °C


Package Size
45 mm x 37.5 mm


Advanced Technologies



Intel Gaussian & Neural Accelerator
3.5


Intel Thread Director
Yes


Intel Speed Shift Technology
Yes


Intel Turbo Boost Technology
2


Intel Hyper-Threading Technology
No


Intel 64
Yes


Instruction Set
64-bit


Instruction Set Extensions
Intel SSE4.1 |  Intel SSE4.2 |  Intel AVX2


Idle States
Yes


Enhanced Intel SpeedStep Technology
Yes


Thermal Monitoring Technologies
Yes


Intel Volume Management Device (VMD)
Yes


Security & Reliability



Intel Threat Detection Technology (TDT)
Yes


Intel Active Management Technology (AMT)
No


Intel Standard Manageability (ISM)
Yes


Intel Remote Platform Erase (RPE)
No


Intel One-Click Recovery
No


Intel Secure Key
Yes


Intel Control-Flow Enforcement Technology
Yes


Intel Total Memory Encryption - Multi Key
No


Intel AES New Instructions
Yes


Intel Trusted Execution Technology
Yes


Execute Disable Bit
Yes


Intel OS Guard
Yes


Intel Boot Guard
Yes


Mode-based Execute Control (MBEC)
Yes


Intel Stable IT Platform Program (SIPP)
No


Intel Virtualization Technology with Redirect Protection (VT-rp)
No


Intel Virtualization Technology (VT-x)
Yes


Intel Virtualization Technology for Directed I/O (VT-d)
Yes


Intel VT-x with Extended Page Tables (EPT)
Yes
