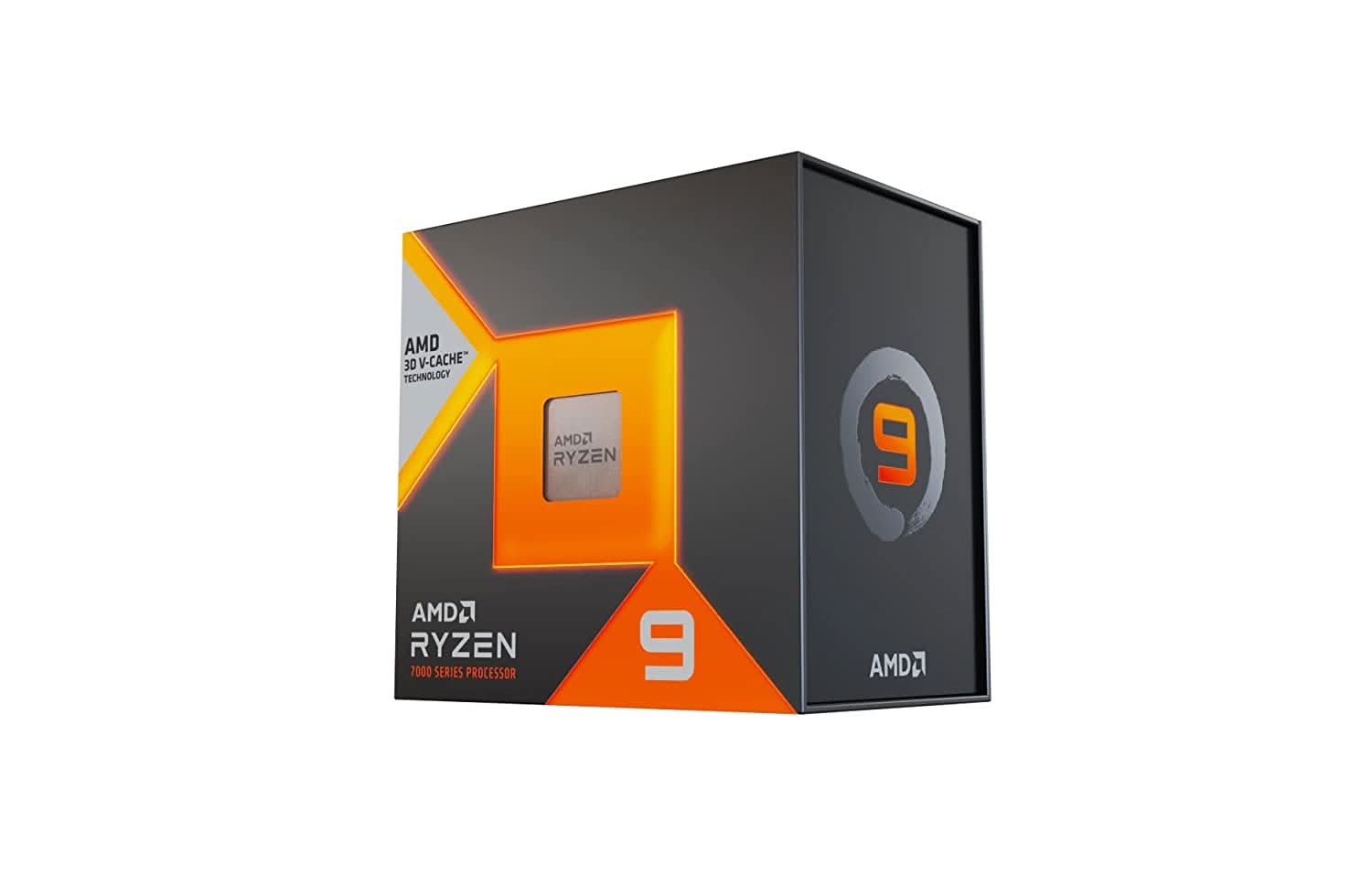

AMD RYZEN 9 7950X 3D 16 CORES UPTO 5.7GHZ AM5 PROCESSOR

Platform
Desktop


Market Segment
Enthusiast Desktop


Product Family
AMD Ryzen Processors


Product Line
AMD Ryzen 9 Desktop Processors


AMD PRO Technologies
No


Consumer Use
Yes


Regional Availability
Global


Former Codename
ìRaphael AM5î


Architecture
ìZen 4î


# of CPU Cores
16


Multithreading (SMT)
Yes


# of Threads
32


Max. Boost Clock
Up to 5.7GHz


Base Clock
4.5GHz


L1 Cache
1MB


L2 Cache
16MB


L3 Cache
64MB


Default TDP
170W


Processor Technology for CPU Cores
TSMC 5nm FinFET


Processor Technology for I/O Die
TSMC 6nm FinFET


CPU Compute Die (CCD) Size
71mm≤


I/O Die (IOD) Size
122mm≤


Package Die Count
3


Unlocked for Overclocking
Yes


AMD EXPOô Memory Overclocking Technology
Yes


Precision Boost Overdrive
Yes


Curve Optimizer Voltage Offsets
Yes


AMD Ryzenô Master Support
Yes


CPU Socket
AM5


Supporting Chipsets
X670E


X670


B650E


B650


CPU Boost Technology
Precision Boost 2


Instruction Set
x86-64


Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64


Thermal Solution (PIB)
Not included


Max. Operating Temperature (Tjmax)
95∞C


Launch Date
9/27/2022


*OS Support
Windows 11 ñ 64-Bit Edition


Windows 10 ñ 64-Bit Edition


RHEL x86 64-Bit


Ubuntu x86 64-Bit


*Operating System (OS) support will vary by manufacturer.


Connectivity :



USB Type-CÆ Support
Yes


Native USB 3.2 Gen 2 (10Gbps) Ports
4


Native USB 3.2 Gen 1 (5Gbps) Ports
0


Native USB 2.0 (480Mbps) Ports
1


Native SATA Ports
0


Native PCIeÆ Lanes (Total/Usable)
28/24


Additional Usable PCIe Lanes from Motherboard
AMD X670E


12x Gen4


AMD X670


12x Gen4


AMD B650E


8x Gen4


AMD B650


8x Gen4


NVMe Support
Boot, RAID0, RAID1, RAID10


Memory Channels
2


Max. Memory
128GB


System Memory Subtype
UDIMM


Max Memory Speed
1x1R


5200 MT/s


1x2R


5200 MT/s


2x1R


3600 MT/s


2x2R


3600 MT/s


ECC Support
Yes (Requires mobo support)


Graphics Capabilities :



Integrated Graphics
Yes


Graphics Model
AMD Radeonô Graphics


Graphics Core Count
2


Graphics Frequency
2200 MHz


GPU Base
400 MHz


USB Type-CÆ DisplayPortô Alternate Mode
Yes


Key Features :



Supported Technologies
AMD EXPOô Technology


AMD Ryzenô Technologies



*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
