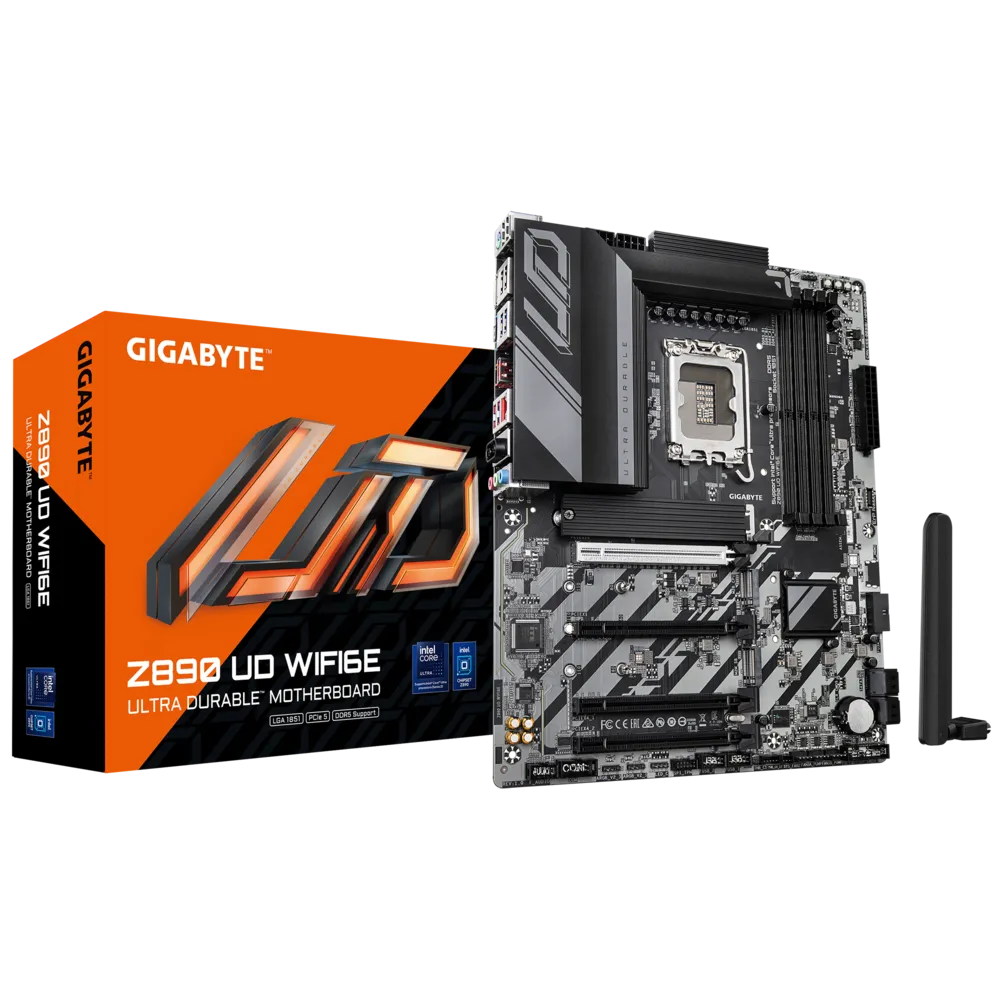

Digital 12+1+2+1 Phases 60A DrMOS VRM with Solid Capacitor
Reinforced PCIe UD Slot PCIe 5.0 with PCIe EZ-Latch Design
PCIe M.2 design (Up to 25110) with Thermal Guard
Fully Covered MOSFET Heatsinks
2x2 Wi-Fi 6E with WIFI EZ-Plug Design
2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
Technical Details:
Platform
INTEL
Socket
LGA1851
CPU Type
Core Ultra
Chipset
Z890
Memory Speed
up to 9200
Max Memory Support
256 GB
Supported Memory Type
DDR5
Channel Supported
Dual Channel
Memory Feature
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics Port
1 x USB4 USB Type-C Port,1 x DisplayPort
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Wireless Networking
WiFi 6E,Bluetooth 5.3
Back Panel I/O Ports
4 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DisplayPort (Note)4 x USB 3.2 Gen 1 ports1 x USB4 USB Type-C port (DisplayPort (Note))1 x USB 3.2 Gen 2 Type-A port (red)1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks
Internal I/O Connector
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header2 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x serial port header1 x power button1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper
