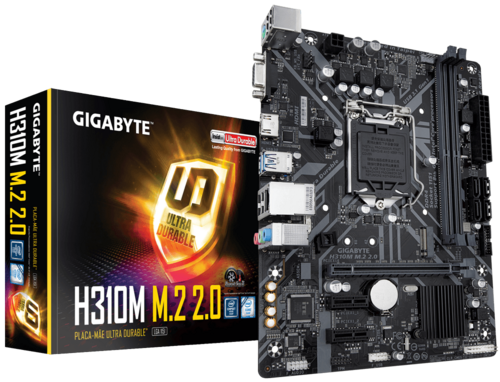

H310M M.2 2.0 is with Exclusive Realtek 8118 Gaming LAN. This GIGABYTE Motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Immersive VR Gaming Experience. GIGABYTE motherboards use high-end audio capacitors. These capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Technical Details:
Platform
INTEL
Socket
LGA1151
Cpu Type
9th Gen, 8th Gen, Pentium, Celeron
Chipset
H310
Memory Speed
up to 2666
Max Memory Support
32 GB
Supported Memory Type
DDR4
Channel Supported
Dual Channel
Memory Feature
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Graphics Port
1 x D-Sub,1 x HDMI
Expansion Slots
1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Back Panel I/O Ports
1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
Internal I/O Connector
1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x USB 3.1 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper
