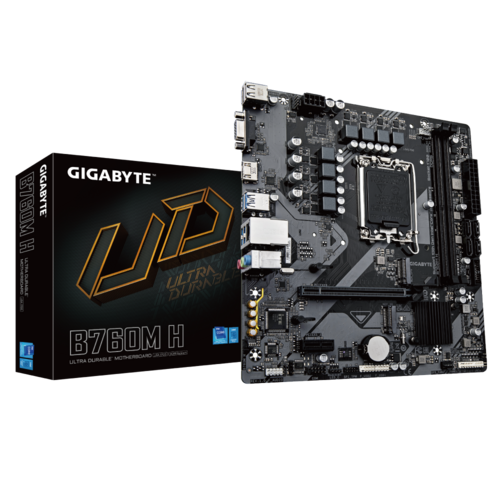

Unparalleled Performance: Hybrid 6+1+1 Phases Digital VRM Solution provides optimal power delivery for stable overclocking.
Dual Channel DDR5: Supports 2 DDR5 DIMM slots with XMP memory modules for lightning-fast data transfer speeds.
Next-Gen Storage: Features 2 PCIe
2 GEN4 M.2 connectors for ultra-fast NVMe SSD storage.
EZ-Latch PCIe 4.0 X16 FOR Graphics Card
Technical Details:
Platform
INTEL
Socket
LGA1700
Cpu Type
14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset
B760
Memory Speed
up to 8000
Max Memory Support
128 GB
Supported Memory Type
DDR5
Channel Supported
Dual Channel
Memory Feature
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics Port
1 x D-Sub, 1 x HDMI ports
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports
2 x USB 2.0/1.1 ports1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports1 x RJ-45 port3 x audio jacks
Internal I/O Connector
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper
