| CPU |
| AM4 Socket: Supports AMD Ryzenô 5000 series/ 3rd Gen Ryzenô/ 2nd Gen Ryzenô/ 1st Gen Ryzenô/ 2nd Gen Ryzenô with Radeonô Vega Graphics/ 1st Gen Ryzenô with Radeonô Vega Graphics/ Athlonô with Radeonô Vega Graphics Processors |
| Chipset |
| AMD B450 |
| Memory |
| 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
| 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - * The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) - * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB |
| Audio |
| RealtekÆ ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| LAN |
| RealtekÆ GbE LAN chip (1000/100 Mbit) |
| Expansion Slots |
| 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) - * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Multi-Graphics Technology |
| Support for AMD Quad-GPU CrossFireô and 2-Way AMD CrossFireô technologies |
| Storage Interface |
| 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) - * Actual support may vary by CPU. - * Supports only M.2 SATA SSDs when using an AMD Athlonô-series/ 7th Gen. A-series or Athlonô X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 - * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| USB |
| Chipset: - 2 x USB 3.1 Gen 1 ports available through the internal USB header - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: - 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors |
| 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

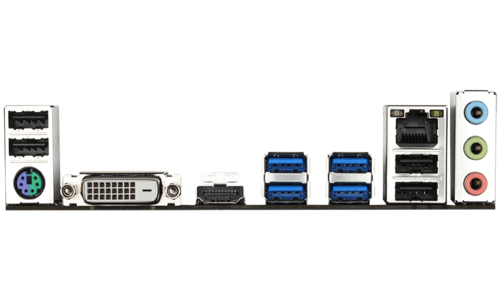

| Back Panel Connectors |
| 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller |
| iTEÆ I/O Controller Chip |
| H/W Monitoring |
| Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control |
| BIOS |
| 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
| Support for APP Center - Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Fast Boot - Game Boost - ON/OFF Charge - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software |
| NortonÆ Internet Security (OEM version) cFosSpeed |
| Operating System |
| Support for Windows 10 64-bit |
| Form Factor |
| Micro ATX Form Factor; 24.4cm x 21.5cm |
| Featured | Yes |
|---|---|
| brand | Gigabyte |
