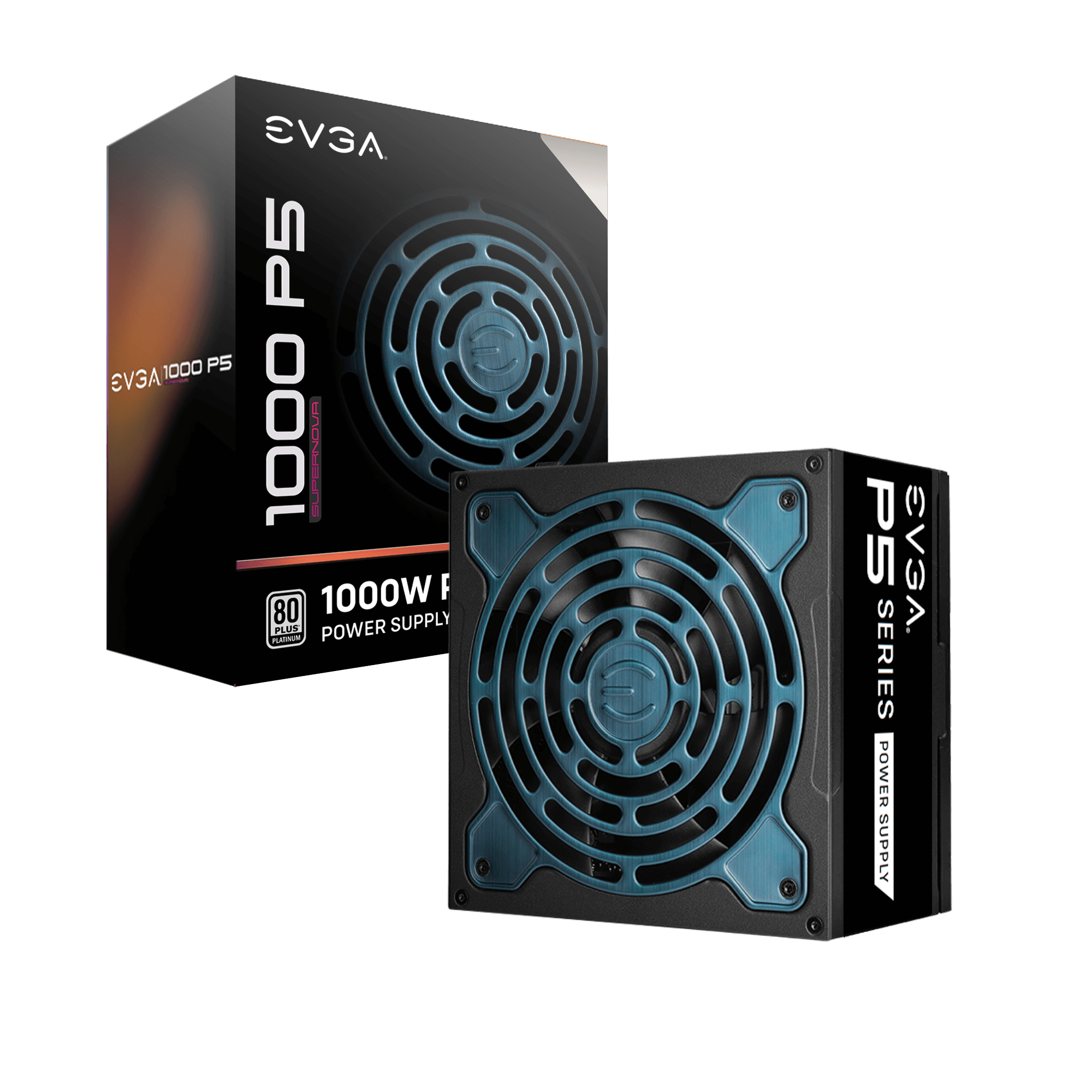

EVGA 1000 P5 80 Plus Platinum fully modular PSU

Features



Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support




Fully Modular to reduce clutter and improve airflow




NVIDIA SLI & AMD Crossfire Ready




80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads




Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)




100% Japanese Capacitors ensure long-term reliability




Active Clamp +DC to DC design for efficient operation




EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads




Active Power Factor Correction




Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.




DC-DC Converter improves 3.3V/5V stability

Specifications



ATX Cable
1x 600mm


EPS Cable
2x 700mm


PCIe Cable
3x 700mm, 850mm ; 2x 700mm


SATA Cable
3x 550mm, 650mm, 750mm, 850mm


Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm, 850mm


Floppy Adapter
1x 100mm


AC Power
1x 1500mm


Modular Cable Type
Full



Connector Quantity



24 Pin ATX
1x 24pin


EPS (CPU)
2x 8pin (4+4)


PCIe
8x 8pin (6+2)


SATA
12x


Four-Pin Peripheral
4x


Floppy
1x




Power Specs




AC Input
100-240V~, 15-8A, 60/50 Hz


Rail
+3.3V
+5V
+12V
+5Vsb
-12V


Max Output
24A
24A
83.3A
3A
0.5A



120W
999.6W
15W
6W


Total
1000W @ +50C




Additional Details



Operating Temperature
0° to 50° C


Japanese Capacitors
100%


ECO Mode
Yes


MTBF
100,000 Hours


Net Weight
7.20 lbs


Size
86mm (H) x 150mm (W) x 150mm (L)


Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement


Fan Size / Bearing
135mm Fluid Dynamic Bearing
