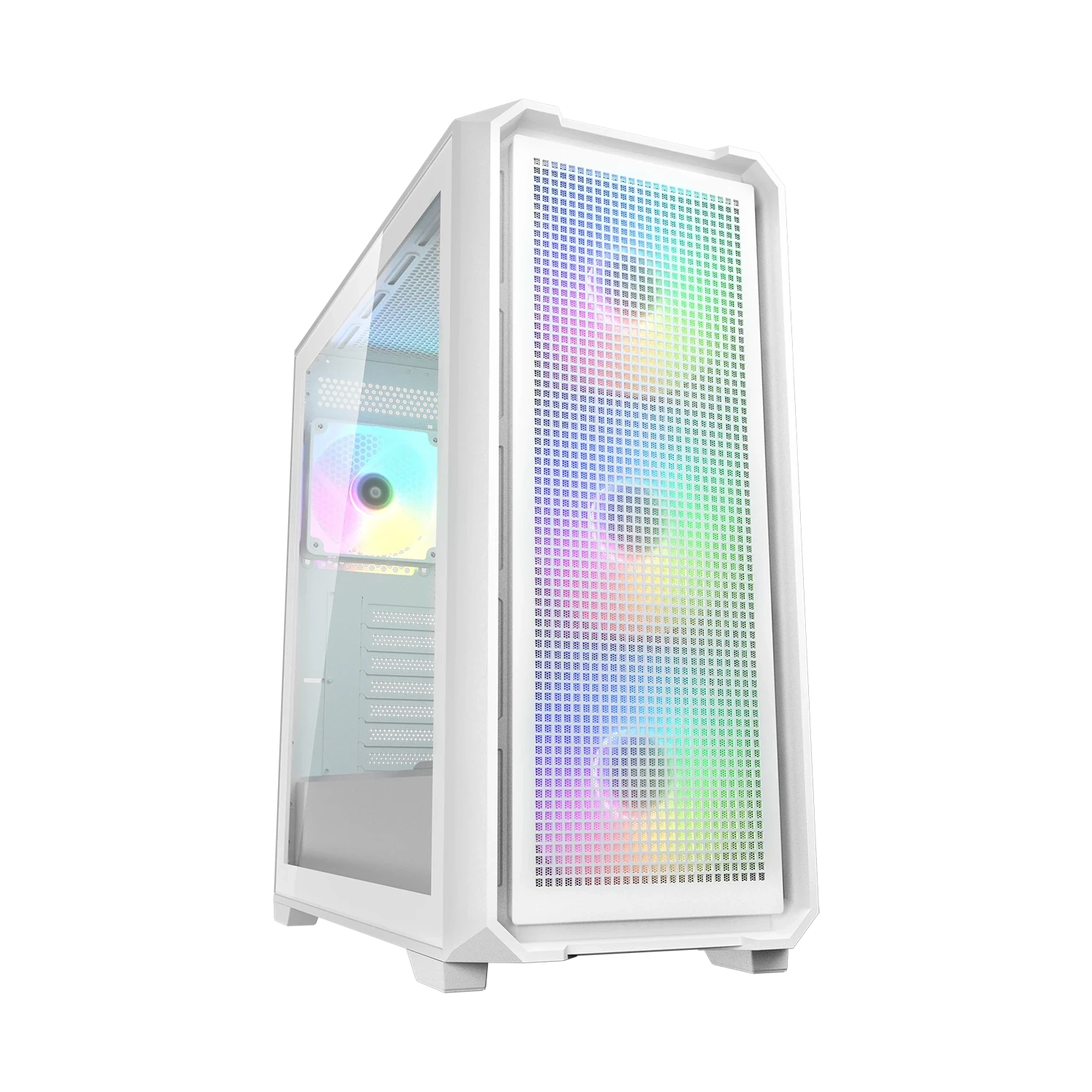

MX600 AIR
The Power of Optimum Airflow
The airflow-prioritized design of the MX600 Air is a perfect storm of optimized cooling: a square-perforated front panel, an airflow-guiding ramp, and support for up to 360mm water cooling.
Square-perforated front panels ensure maximum, optimised airflow.
Airflow ramp precisely guides air current to cool components.
Preinstalled ARGB fans: 3x140mm in front and 1x120mm to the rear. Maximum capacity of 7 fans.
Supports up to 360mm water cooling (front OR top).
Accommodates 400mm GPUs and E-ATX motherboards.
Three dust filters protect against dust. Front panel with built-in filter detaches easily for maintenance.
USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
Houses 1 x 3.5” HDD drives and 2+1 2.5” SSD drives (converted from 3.5” drive bay)
Preinstalled Cooling
The MX600 Air comes with preinstalled 3 x 140mm ARGB fans to the front and 1 x 120mm ARGB fan to the rear. A maximum capacity of 7 fans makes sure your build never burns out.
Specifications:
Product Name
MX600 AIR (White)
Case Form Factor
Mid Tower
Motherboard Type
Mini ITX / Micro ATX / ATX / E-ATX
Dimensions (WxHxD)
210(W) x 485(H) x 460(D) (mm)8.3(W) x 19.1(H) x 18.1(D) (in)
I/O Panel
USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack, RGB Button
3.5" Drive Bay
1
2.5" Drive Bay
2+1 (converted from 3.5" drive bays)
Expansion Slots
7
Cooling Fan Support
Front
120mm x 3 / 140mm x 3
Top
120mm x 3 / 140mm x 2
Rear
120mm x 1
Pre-installed Fans
Front
140mm ARGB fan x 3
Rear
120mm ARGB fan x 1
Speed
1000 ± 10% RPM
Connector
5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans
7
Water Cooling Support
Front
* 360mm / 280mm / 240mm / 140mm / 120mm
Top
* 360mm / 280mm / 240mm / 140mm / 120mm
Rear
120mm
RGB Hub Sync with M/B
Yes
Max. Graphics Card Length
400(mm) / 15.7(in)
Max. CPU Cooler Height
165(mm) / 6.5(in)
Max. PSU Length
180(mm) / 7.1(in)
