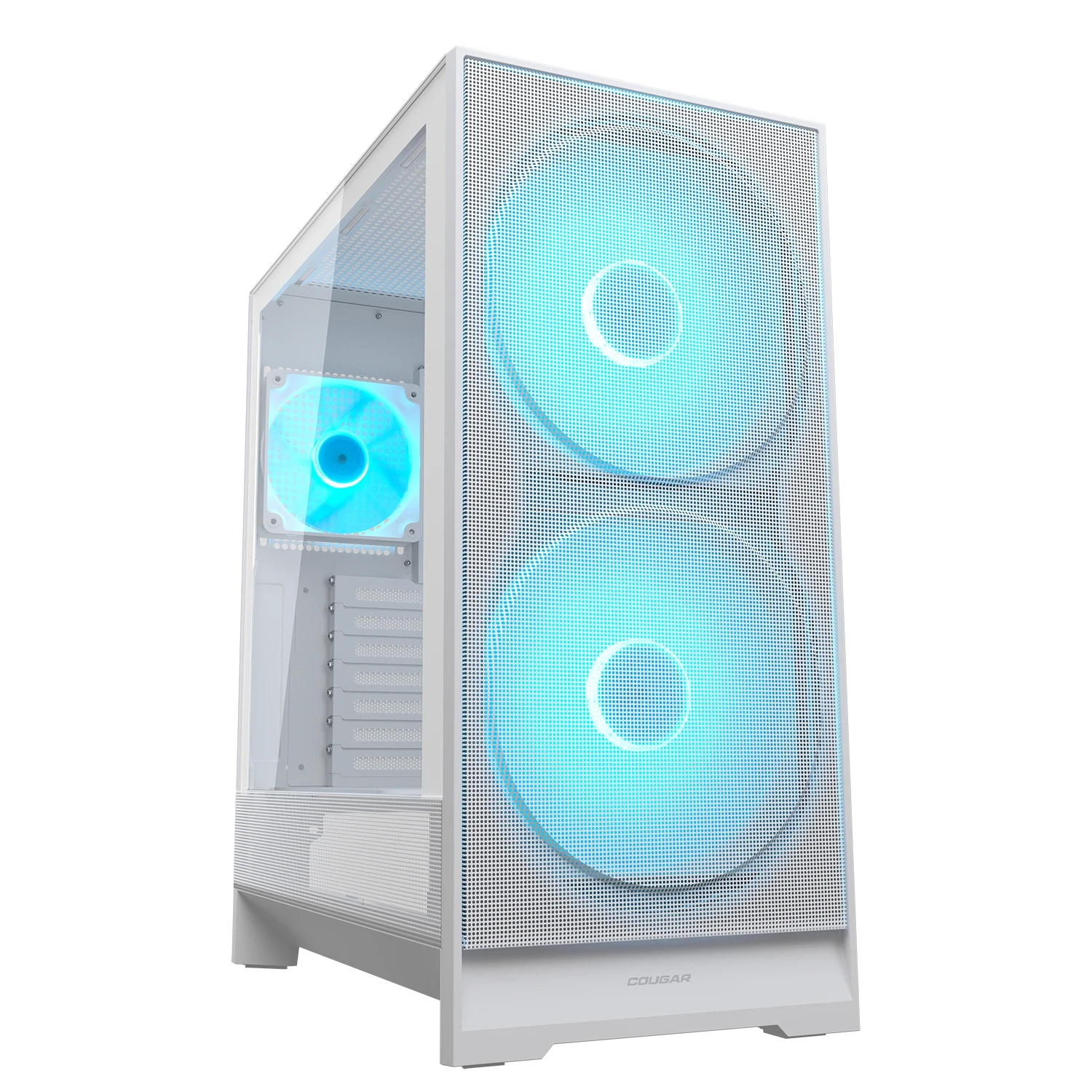

AIRFACE 180
The Power of 180mm, Doubled.
The Airface 180 redefines out-of-the-box cooling with dual 180mm PWM ARGB front fans and a 120mm rear fan, delivering massive airflow for peak performance. With a magnetic front filter panel for effortless maintenance, a PSU cabin optimally placed for enhanced airflow, and a sleek minimalist aesthetic, the Airface 180 is built to keep its cool.
Pre-installed 2x180mm PWM ARGB front fans and 1x120m PWM ARGB rear fan deliver extreme cooling out of the box, with a total maximum fan capacity of 8 fans.
Front filter panel attaches magnetically for easy maintenance, with recessed finger groove providing easier handling.
Right-offset PSU cabin maximizes airflow space.
Accommodates up to 340mm GPU length.
Compatible with Reverse Connector/Mini ITX/M-ATX/ATX/CEB motherboards.
USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2 for versatile device connectivity.
Houses 2×3.5” HDD drives and 1+1 2.5” SSD drives (converted from 3.5” drive bays)
Specifications:
Product Name
Airface 180 (White)
Case Form Factor
Mid Tower
Motherboard Type
Mini ITX / Micro ATX / ATX / CEB
Dimensions (WxHxD)
220 x 483 x 410 (mm)8.7 x 19 x 16.1 (in)
I/O Panel
USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay
2
2.5" Drive Bay
1+1(converted from 3.5" drive bays)
Expansion Slots
7 (horizontal slots can be converted into vertical slots)
Vertical GPU Support
Yes
Cooling Fan Support
Front
180mm x 2 / 140mm x 2 / 120mm x 3
Top
140mm x 2/ 120mm x 2
PSU Shroud
120mm x 2
Rear
120mm x 1
Pre-installed Fans
Front
180mm ARGB PWM fan x 2
Rear
120mm ARGB PWM fan x 1
Speed
180mm ARGB PWM fan : 300-1200 ± 10% RPM120mm ARGB PWM fan : 1200 ± 10% RPM
Connector
180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)120mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans
8
Water Cooling Support
Front
360mm / 280mm / 240mm
Top
280mm / 240mm
Rear
120mm
RGB Sync HUB with M/B
Yes
Max. Graphics Card Length
340 (mm) / 13.4 (in)
Max. CPU Cooler Height
170(mm)/ 6.7(in)
Max. PSU Length
160 (mm) / 6.3 (in)
